纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (04-16) - HARNESS, CAB - HARNESS, MICROCONTROLLER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
243 次

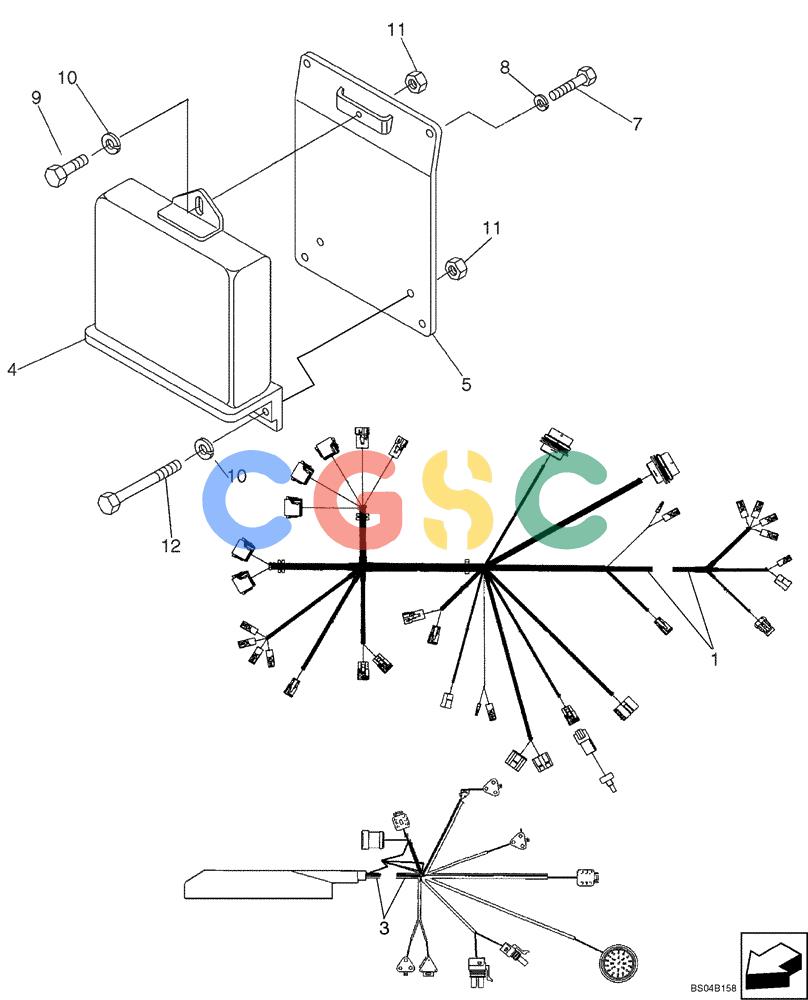

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87411763 | [1] | WIRE HARNESS | BURCab Main Harness; Incl. Ref 1, 87410122 Harness, (2) 79113969 Proximity Sensors, (2) 79113970 Cables, 87414786 Fan Speed Switch, 87414787 Heater Switch |
| 1. | 87410122 | [1] | WIRE HARNESS | BURHarness Main, Cab |
| 3. | 426946A1 | [1] | WIRE HARNESS | BURIntermediate Microcontroller Harness; Attaches to Main Microcontroller Harness (87438047) |
| 4. | 87329249 | [1] | CONTROL UNIT | BURMicroprocessor Control Box; Component Parts Not Serviced Separately, Replaces 373142A1 |
| . . | 87329249R | [1] | REMAN-ELECTRONIC CONTROL UNIT | BURDC85 (8/04-) |
| . . | 87329249C | [1] | CORE-ELECTRONIC CONTROL UNIT | BURReturn Number |
| 5. | 87400643 | [1] | PLATE | BUR |
| 7. | 614-8020 | [4] | BOLT,Hex, M8 x 1.25 x 20mm | CAS Superseded by part number: 120104 |
| 8. | 87016617 | [4] | LOCK WASHER,M8 | RAC Superseded by part number: 83990583 |
| 9. | 614-6016 | [1] | BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd | CAS Superseded by part number: 86508568 |
| 10. | 892-11006 | [3] | LOCK WASHER,M6 | CAS Superseded by part number: 86517328 |
| 11. | 829-1406 | [3] | NUT,Hex, M6 x 1, Cl 10.9 | CAS Superseded by part number: 86500688, 87778396 |
| 12. | 14303921 | [2] | HEX SOC SCREW,M6 x 70mm, Cl 8.8 | LECM6 x 60 Superseded by part number: 14303930 |
