纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (04-17) - CONSOLE, FRONT - CANOPY, ROPS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
112 次

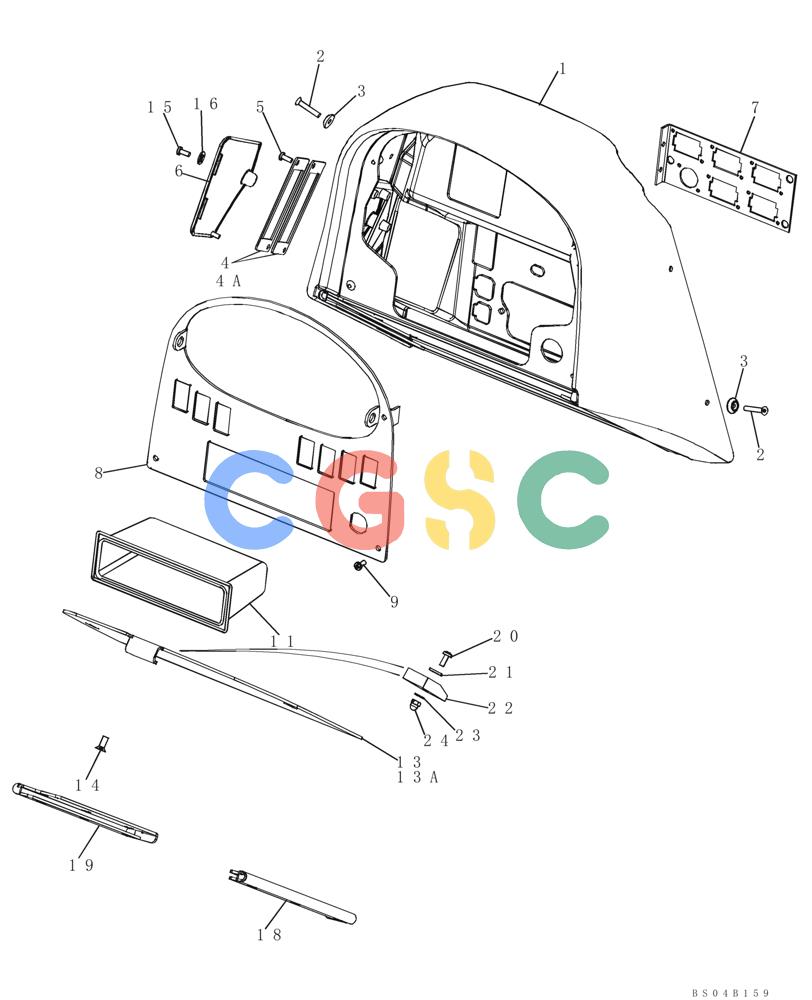

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87434891 | [1] | CONSOLE | BURFront Console |
| 2. | 543-713 | [4] | SCREW,Phil Flat Hd, M6 x 35, 4.8 | CASM6 x 35 |
| 3. | 79076208 | [4] | WASHER | LECNylon |
| 4. | 86989589 | [2] | MOUNTING PARTS | BURFuse Box |
| 4A. | 87416387 | [2] | PROTECTIVE COVER | BURInner, Weather Tight; Not Illustrated |
| 5. | 840-1512 | [4] | SCREW,Pan, M5 x 12mm, Gr 4.8 | CAS4.8 Superseded by part number: 190003820164 |
| 6. | 87434936 | [1] | PROTECTIVE COVER | BUROuter; Fuse Access |
| 7. | 86989588 | [1] | PLATE | BURHarness Bulkhead Plate |
| 8. | 87416349 | [1] | FRONT PLATE | BURFace Plate, Front Console |
| 9. | 540-712 | [2] | SCREW,Cross Pan Hd, M5 x 12 | CASM5 x 12; 4.8 |
| 11. | 4417913 | [1] | CONTAINER | BURStorage Container |
| 13. | 87434893 | [1] | DOOR ASSY. | BURLockup Door |
| 13A. | 87426769 | [2] | BUSHING | BURLockup Door |
| 14. | 843-1512 | [6] | SCREW,Flat , M5 x 12mm, Cl 4.8 | CASM5 x 12; 4.8 Superseded by part number: 412188 |
| 16. | 87428441 | [1] | RETAINER | BUR |
| 17. | 87439445 | [1] | DECAL | BURFuse, Not Illustrated |
| 18. | 87434894 | [1] | GUIDE | BURLock Up Door; Right Hand; Use 345-199 Adhesive Thread Loctite 243 |
| 19. | 87434895 | [1] | GUIDE | BURLock Up Door; Left Hand; Use 345-199 Adhesive Thread Loctite 243 |
| 20. | 840-1410 | [1] | SCREW,Pan, M4 x 10mm, Cl 4.8 | CAS Superseded by part number: 86585706 |
| 21. | 895-11006 | [1] | WASHER,M6 x 12mm OD x 1.6mm | CAS Superseded by part number: 86588450 |
| 22. | 87423750 | [1] | BUMPER | BURRubber |
| 23. | 895-11004 | [1] | WASHER,M4 | CAS(4.3 x 9 x 0.8 mm) Superseded by part number: 89824840 |
| 24. | 87423751 | [1] | CROWN NUT | BURM4 |
