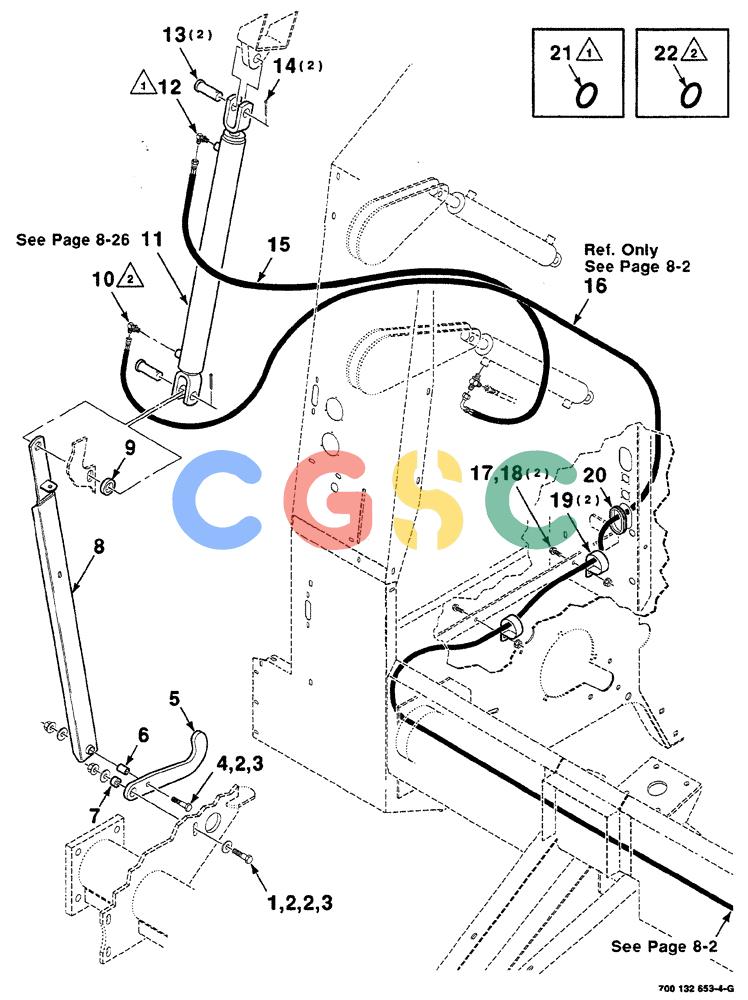

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (8-004) - HYDRAULIC ASSEMBLY, TAILGATE, RIGHT, WITH MESH WRAP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
333 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-832
|
[1] |
BOLT,Hex, 1/2" - 13 x 2", Gr 5
|
CAS
Superseded by part number: 9706716
|
| 2. |
700711557
|
[3] |
WASHER
|
CAS
1/2", hardened, wide, plain
|
| 3. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2"-13, hex. flange top lock, GR/G Superseded by part number: 86521610
|
| 4. |
413-836
|
[1] |
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
|
CAS
Superseded by part number: 87975
|
| 5. |
700132511
|
[1] |
LATCH
|
HFI
|
| 6. |
700132513
|
[1] |
BUSHING
|
HFI
|
| 7. |
700132512
|
[1] |
BUSHING
|
HFI
|
| 8. |
700132717
|
[1] |
LINK
|
HFI
WA
|
| 9. |
700120629
|
[1] |
SPACER
|
HFI
|
| 10. |
218-5106
|
[1] |
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
|
CAS
Includes Ref. 22 Superseded by part number: 72186176, 128830
|
| 11. |
700717929
|
[1] |
CYLINDER
|
CAS
ASSY. hydraulic
|
| 12. |
218-5105
|
[1] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Includes: Ref. 21 Superseded by part number: 76344, 72186128
|
| 13. |
700710292
|
[2] |
PIN
|
CAS
clevis, special
|
| 14. |
432-1624
|
[2] |
COTTER PIN,1/4" x 1 1/2"
|
CAS
Superseded by part number: 80753
|
| 15. |
700716085
|
[1] |
HOSE
|
CAS
hydraulic
|
| 16. |
700716086
|
[1] |
HOSE
|
CAS
hydraulic
|
| 17. |
121-226
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 18. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 19. |
7041015
|
[2] |
CLAMP
|
CAS
line, 2-1/4", I.D.
|
| 20. |
8027427
|
[1] |
GROMMET
|
CAS
|
| 21. |
738468
|
[1] |
O-RING
|
IH
9/16"
|
| 22. |
237-6008
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
3/4" Superseded by part number: 128825
|
