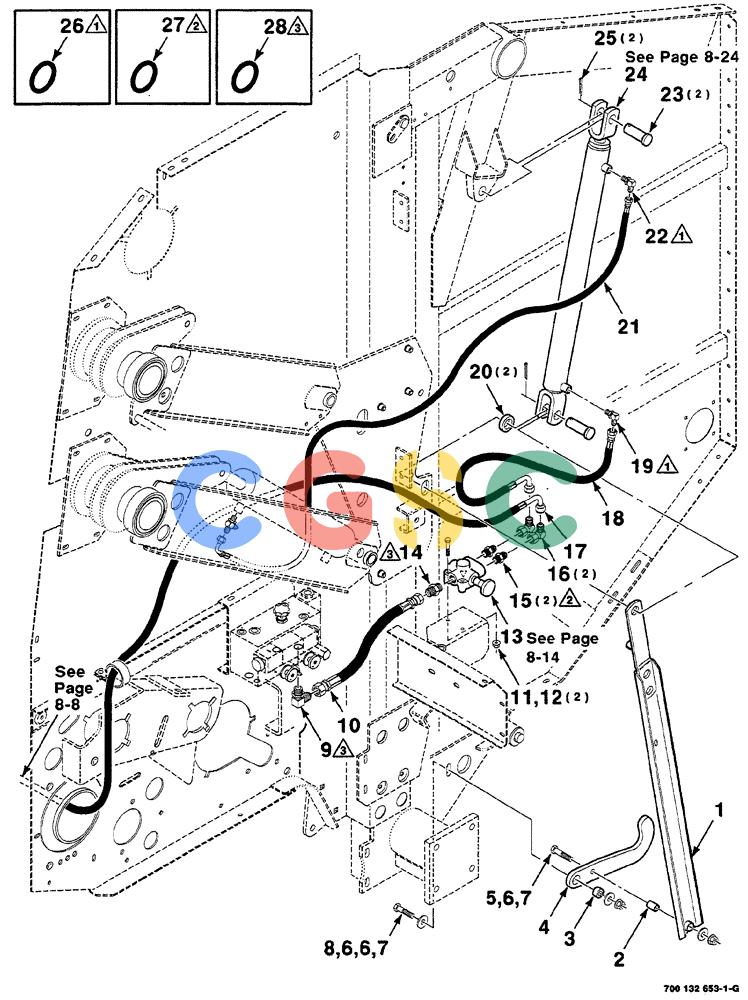

| 1. |
700132717
|
[1] |
LINK
|
HFI
WA
|
| 2. |
700132513
|
[1] |
BUSHING
|
HFI
|
| 3. |
700132512
|
[1] |
BUSHING
|
HFI
|
| 4. |
700132511
|
[1] |
LATCH
|
HFI
|
| 5. |
413-836
|
[1] |
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
|
CAS
Superseded by part number: 87975
|
| 6. |
705541
|
[3] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2", hardened, plain
|
| 7. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2"-13, hex. flange top lock, GR/G Superseded by part number: 86521610
|
| 8. |
413-832
|
[1] |
BOLT,Hex, 1/2" - 13 x 2", Gr 5
|
CAS
Superseded by part number: 9706716
|
| 9. |
218-5107
|
[1] |
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
|
CAS
Incl. Ref 28 Superseded by part number: 72186142, 164910
|
| 10. |
700719101
|
[1] |
HOSE,15.88 mm ID x 460.00 mm, SAEJ517 100R2
|
HFI
|
| 11. |
413-528
|
[2] |
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707515, 72187200
|
| 12. |
232-5315
|
[2] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16"-18, hex. flange top lock, GR/G
|
| 13. |
700717995
|
[1] |
VALVE
|
CAS
ASSY. shutoff
|
| 14. |
51200289
|
[1] |
FITTING
|
CAS
CONNECTOR straight, includes: REF. 28
|
| 15. |
218-5059
|
[2] |
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
|
CAS
Straight, Incl. Ref 27 Superseded by part number: 128818
|
| 16. |
218-5230
|
[2] |
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
|
CAS
Superseded by part number: 72187024, 248974
|
| 17. |
700716086
|
[1] |
HOSE
|
CAS
hydraulic
|
| 18. |
700716081
|
[1] |
HOSE
|
CAS
hydraulic
|
| 19. |
218-5280
|
[1] |
ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring
|
CAS
ELBOW 90°, includes: REF. 26 Superseded by part number: 86512938
|
| 20. |
700120629
|
[2] |
SPACER
|
HFI
|
| 21. |
700716085
|
[1] |
HOSE
|
CAS
hydraulic
|
| 22. |
218-5105
|
[1] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Includes: Ref. 26 Superseded by part number: 76344, 72186128
|
| 23. |
700710292
|
[2] |
PIN
|
CAS
clevis, special
|
| 24. |
700716066
|
[1] |
CYLINDER
|
CAS
ASSY. hydraulic
|
| 25. |
432-1624
|
[2] |
COTTER PIN,1/4" x 1 1/2"
|
CAS
Superseded by part number: 80753
|
| 26. |
738468
|
[1] |
O-RING
|
IH
3/8"
|
| 27. |
237-6008
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
3/4" Superseded by part number: 128825
|
| 28. |
237-6010
|
[1] |
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
|
CAS
7/8" Superseded by part number: 72186125, 167269
|
