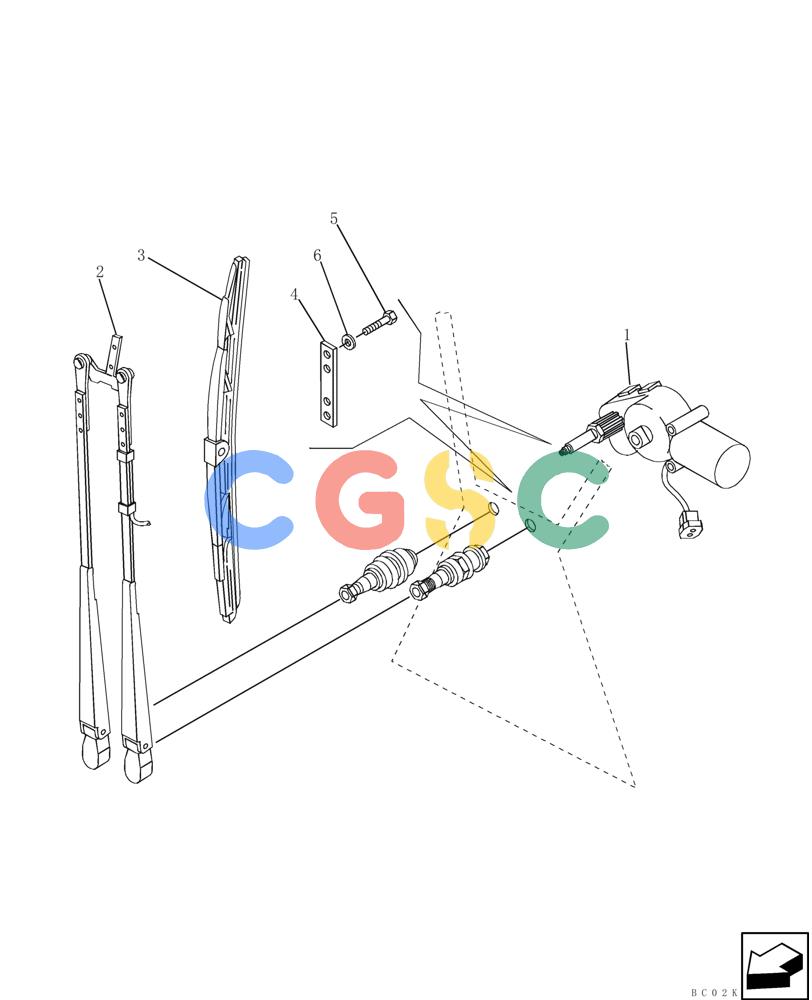

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (04-25) - WIPER, FRONT - CAB New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
392 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87626045 | [1] | WIPER MOTOR,12V | BUR12V Wiper Motor; Component parts not serviced separately; Replaces 87400567; For Cab Door Wipers, See Figure 09-27 |
| 2. | 76067238 | [1] | WIPER ARM | LEC |
| 3. | 76067230 | [1] | WIPER BLADE | LECIncludes Bracket, Which is Not Serviced Separately, for Mounting, Serial Range: Blade-Arm |
| 4. | 76067231 | [1] | BRACKET | LEC |
| 5. | 16043224 | [2] | BOLT,Hex, M8 x 16mm, Cl 8.8 | NH |
| 6. | 14496534 | [2] | WASHER,M8 | BUR Superseded by part number: 86624184 |
