纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (04-26) - WIPER, REAR - CAB New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
249 次

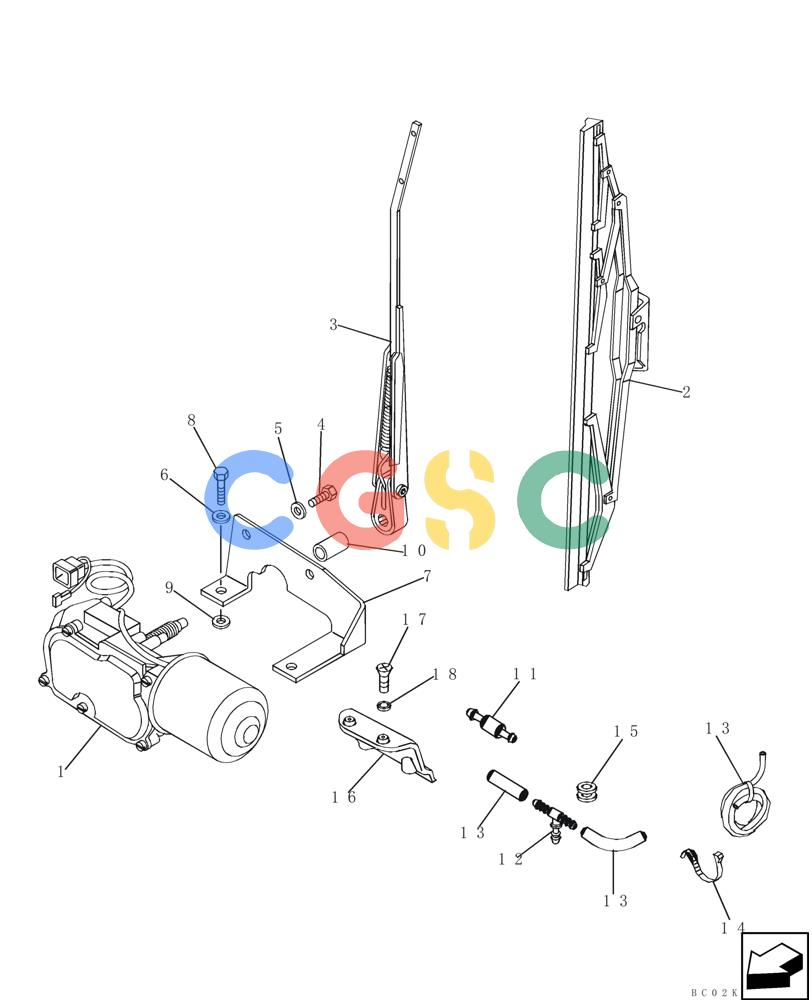

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87400648 | [1] | WIPER MOTOR | BUR12V Wiper Motor; For Cab Door Wipers, See Figure 09-27 |
| 2. | 76045506 | [1] | WIPER BLADE | LECWiper Blade |
| 3. | 76067637 | [1] | WIPER ARM | LEC |
| 4. | 614-6014 | [2] | BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd | IHM6 x 14 |
| 5. | 892-11006 | [2] | LOCK WASHER,M6 | CAS Superseded by part number: 86517328 |
| 6. | 895-15008 | [2] | WASHER,M8 x 20 x 1.6 | CAS Superseded by part number: 86625263 |
| 7. | 76067232 | [1] | BRACKET | LEC |
| 8. | 614-8020 | [2] | BOLT,Hex, M8 x 1.25 x 20mm | CAS Superseded by part number: 120104 |
| 9. | 14496534 | [2] | WASHER,M8 | BURx 17 Superseded by part number: 86624184 |
| 10. | 76067233 | [1] | SPACER | LECUsed With 87345051 Washer Seal |
| . . | 87345051 | [1] | SEALING WASHER | BURSeal, Washer |
| 11. | 79020844 | [1] | CHECK VALVE | LECWiper/Washer |
| 12. | 79021522 | [1] | TEE,M4.5 Barb | LEC |
| 13. | 19054786 | [1] | FLEXIBLE HOSE | LECL=4M; Rear Window Washer |
| 14. | 76067664 | [4] | CABLE TIE | LECClamp |
| 15. | 76045509 | [4] | GROMMET | LECGrommet |
| 16. | 76067966 | [1] | COVER | LECRear Wiper |
| 17. | 79105220 | [2] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 18. | 79076208 | [2] | WASHER | LECNylon, Black |
