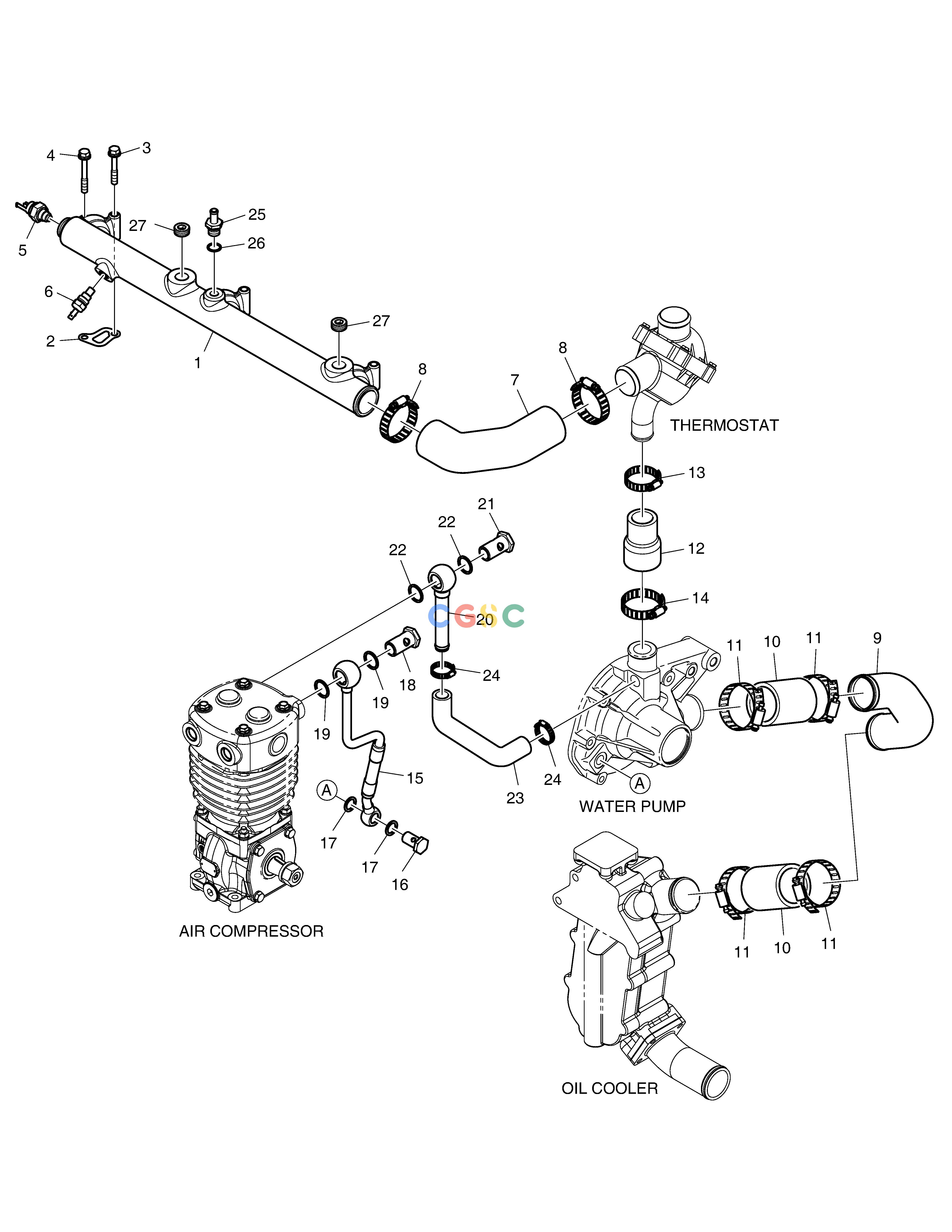

斗山零件查询COOLING PIPE WATER SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
870 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
420211-00602
|
[1] |
PIPE,COOLING WATER
|
|
| 10. |
04.27405-1908A
|
[2] |
HOSE;RUBBER M50X62X80
|
|
| 11. |
06.67020-0109
|
[4] |
CLAMP;HOSE
|
|
| 12. |
65.96301-0258
|
[1] |
HOSE;RUBBER
|
|
| 13. |
06.67020-0106
|
[1] |
CLAMP;HOSE
|
|
| 14. |
06.67020-0108
|
[1] |
CLAMP;HOSE
|
|
| 15. |
420211-00601
|
[1] |
PIPE,COOLING WATER
|
|
| 16. |
06.78144-2205
|
[1] |
SCREW,HOLLOW
|
|
| 17. |
06.56190-0709
|
[2] |
SEAL;RING
|
|
| 18. |
06.78144-2207
|
[1] |
SCREW,HOLLOW
|
|
| 19. |
06.56190-0718
|
[2] |
RING;SEAL
|
|
| 2. |
65.06903A0011
|
[3] |
GASKET;COOLING WATER PIPE
|
|
| 20. |
65.06301-5020
|
[1] |
PIPE ASSY,COOLING WATER;AIR CO
|
|
| 21. |
06.78144-2207
|
[1] |
SCREW,HOLLOW
|
|
| 22. |
06.56190-0718
|
[2] |
RING;SEAL
|
|
| 23. |
65.96301-0119B
|
[1] |
HOSE,RUBBER;AIR COMP, WTR OUT
|
|
| 24. |
06.67020-0104
|
[2] |
CLAMP;HOSE
|
|
| 25. |
430208-00466
|
[1] |
CONNECTION,SCREW
|
|
| 26. |
06.56190-0709
|
[1] |
SEAL;RING
|
|
| 27. |
65.90310-0148
|
[2] |
SCREW;PLUG
|
|
| 3. |
06.01923-3122
|
[3] |
BOLT ASS`Y M8X55
|
|
| 4. |
06.01923-3124
|
[3] |
BOLT ASS`Y M8X65
|
|
| 5. |
66.27435-6008
|
[1] |
SWITCH;THERMO
|
|
| 6. |
65.27435-6003
|
[1] |
SWITCH;WATER TEMP
|
|
| 7. |
65.96301-0257
|
[1] |
HOSE;RUBBER
|
|
| 8. |
06.67020-0109
|
[2] |
CLAMP;HOSE
|
|
| 9. |
65.06301-0083
|
[1] |
PIPE;COOLING WATER
|
|
