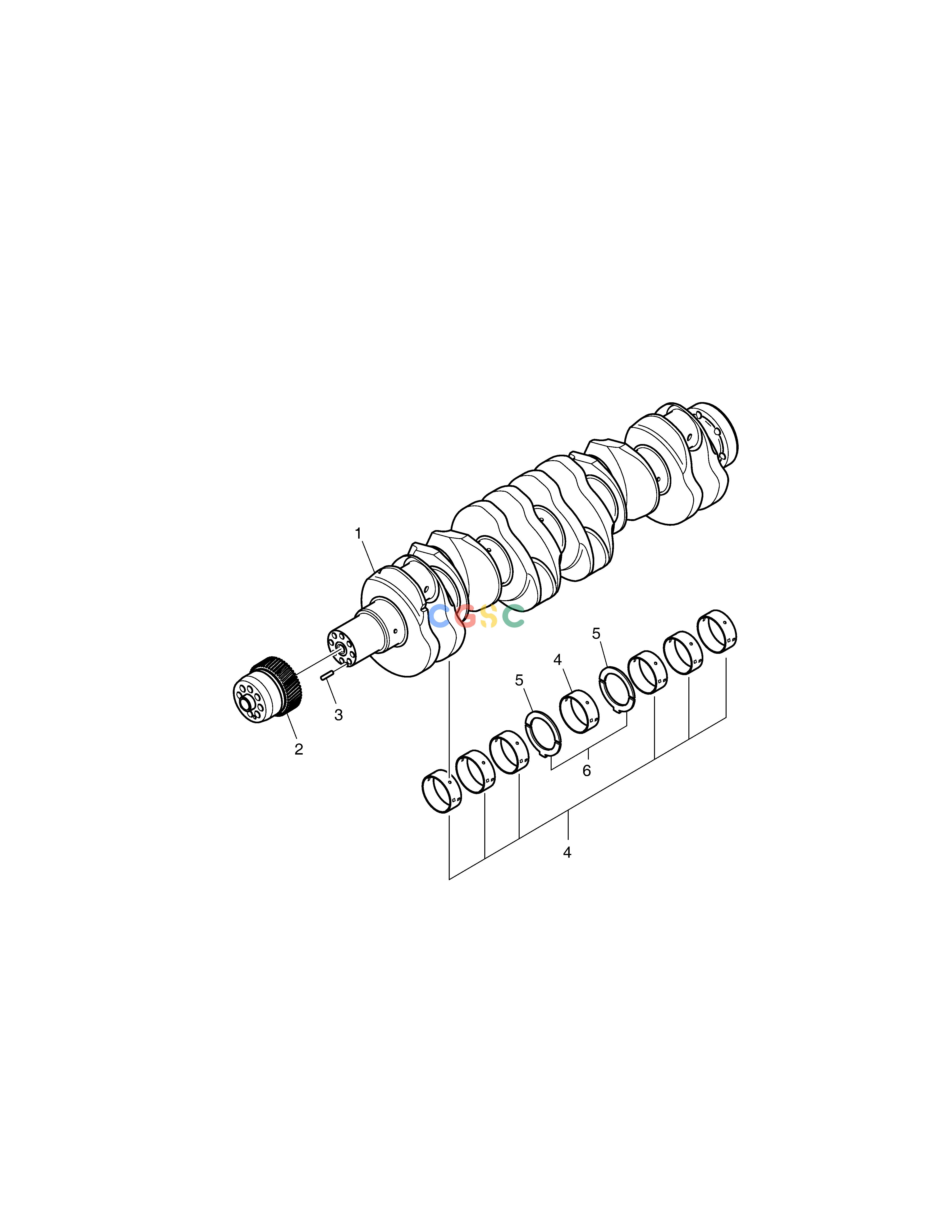

斗山零件查询CRANK SHAFT SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
654 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150107-00183
|
[1] |
CRANK SHAFT
|
|
| 2. |
130410-00044
|
[1] |
GEAR,CRANKSHAFT
|
|
| 2. |
130410-00044A
|
[1] |
GEAR,CRANKSHAFT
|
|
| 3. |
06.22022-0912
|
[1] |
PIN;DOWEL
|
|
| 4. |
65.01110-6351
|
[7] |
METAL;MAIN STD
|
|
| 4. |
65.01110-6352
|
[1] |
METAL;MAIN 0.25
|
|
| 4. |
65.01110-6353
|
[1] |
METAL;MAIN 0.50
|
|
| 4. |
65.01110-6354
|
[1] |
METAL;MAIN 0.75
|
|
| 4. |
65.01110-6355
|
[1] |
METAL;MAIN 1.00mm
|
|
| 5. |
65.01150-0020
|
[1] |
WASHER;THRUST(0.50)
|
|
| 5. |
65.01150-0021
|
[1] |
WASHER;THRUST(UPP) 0.75mm
|
|
| 5. |
65.01150-0022
|
[1] |
WASHER;THRUST(UPP) 1.00mm
|
|
| 5. |
65.01150-0015
|
[2] |
WASHER;THRUST(UPPER)
|
|
| 5. |
65.01150-0019
|
[1] |
WASHER;THRUST(0.25)
|
|
| 6. |
65.01150-0016A
|
[2] |
WASHER;THRUST(LOWER)
|
|
| 6. |
65.01150-0023A
|
[1] |
WASHER;THRUST(0.25)
|
|
| 6. |
65.01150-0024A
|
[1] |
WASHER;THRUST(0.50)
|
|
| 6. |
65.01150-0025A
|
[1] |
WASHER;THRUST(LOW) 0.75mm
|
|
| 6. |
65.01150-0026A
|
[1] |
WASHER;THRUST(LOW) 1.00mm
|
|
