神钢零件查询(F4HFE6132 A003) - ENGINE 5801753676 - 47541755 (1/14-) (10.304.AP) - ENGINE, BREATHER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
534 次

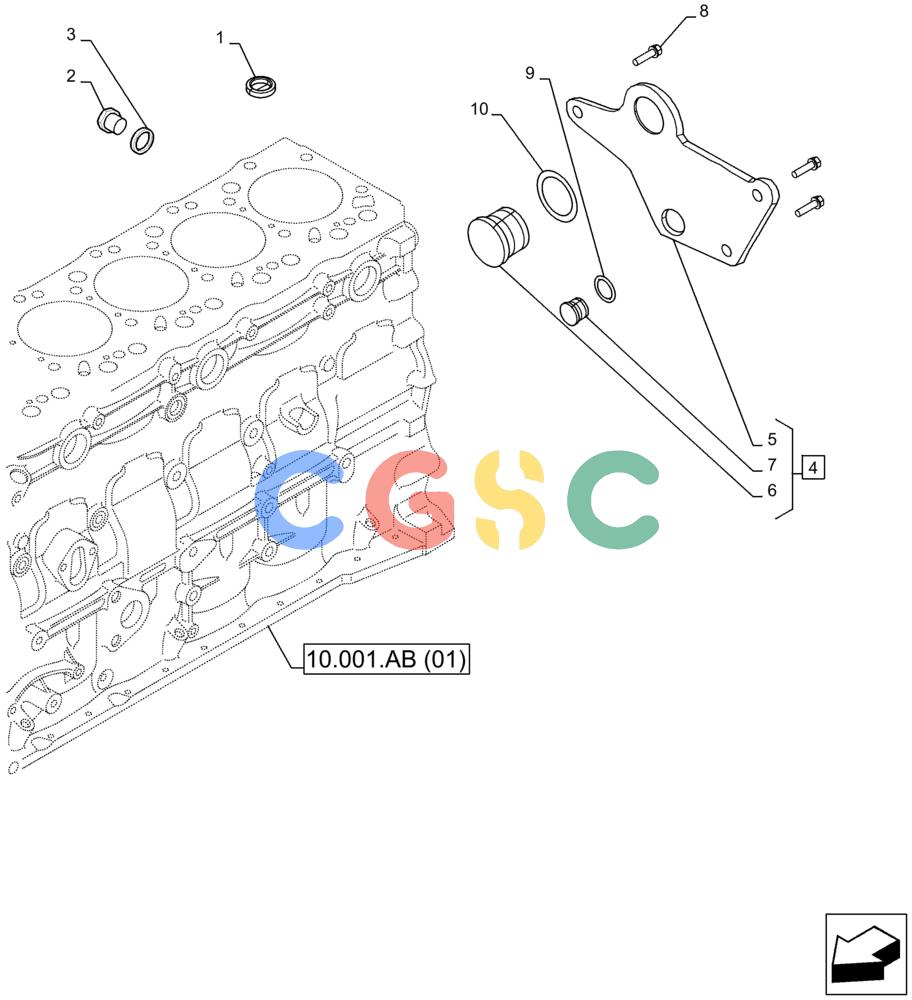

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2856545 | [1] | PLUG | TOR Superseded by part number: 504086298 |
| 2. | 2856546 | [1] | PLUG | TOR Superseded by part number: 10300511 |
| 3. | 2854292 | [1] | SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk | TOR Superseded by part number: 10298460 |
| 4. | 2859335 | [1] | BREATHER | TORASSY, Incl 5-7 |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONMask, Incl in 4 |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 4 |
| 7. | NSS | [2] | NOT SOLD SEPARAT | CONPlug, Incl in 4 |
| 8. | 4899110 | [3] | SCREW,Hex Flg, M6 x 1 x 20 | TORM6 x 1 x 20 |
| 9. | 4898372 | [1] | O-RING,13.11mm ID x 2.62mm Width | TORID = 13.11 x 2.62 |
| 10. | 2855200 | [1] | O-RING | TOR Superseded by part number: 17288281 |
