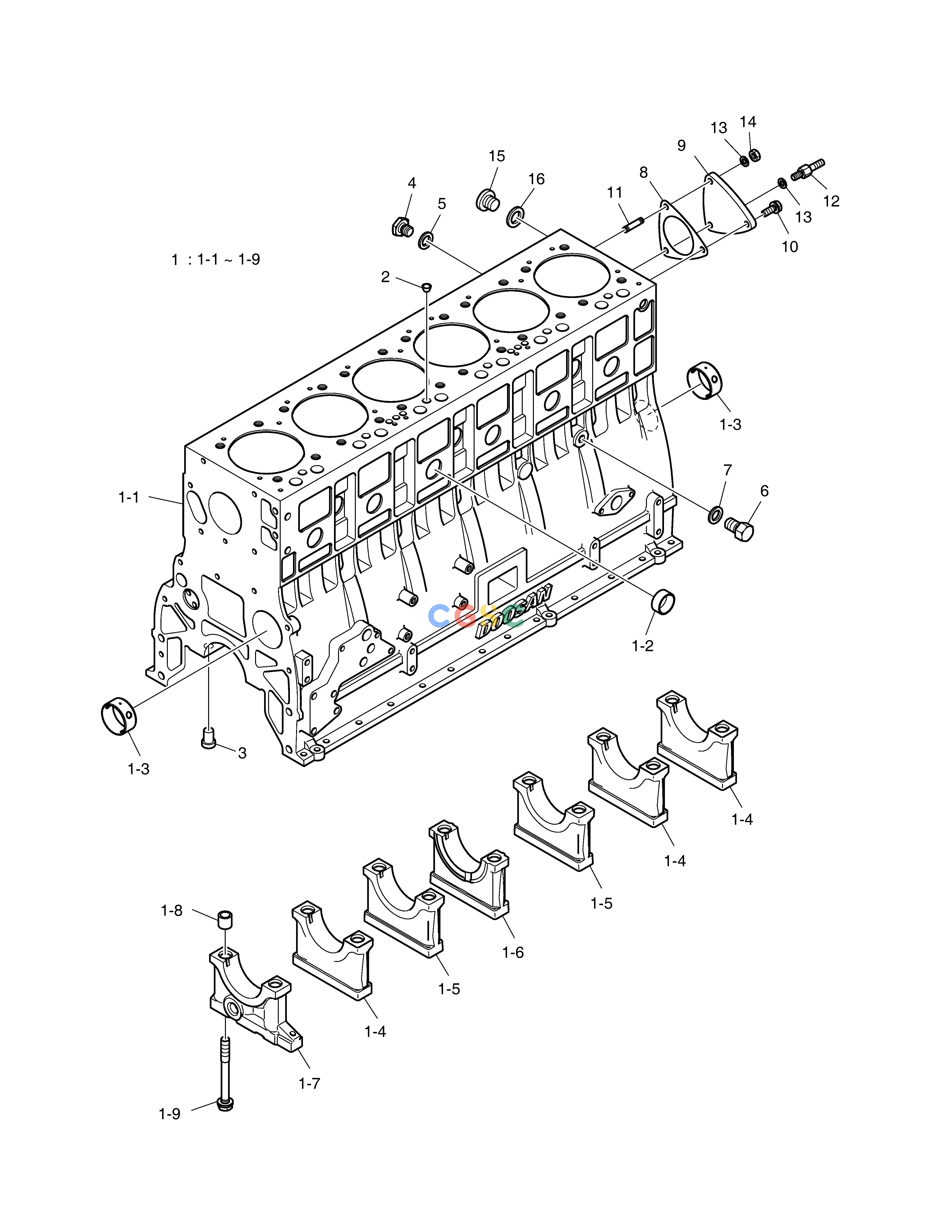

斗山零件查询CYLINDER BLOCK SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
125 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150102-00405
|
[1] |
CYLINDER BLOCK ASS'Y
|
|
| 1-1. |
65.01101-0040Q
|
[1] |
BLOCK;CYLINDER(T/C)
|
|
| 1-2. |
65.91606-0037
|
[9] |
PLUG;CORE
|
|
| 1-3. |
65.04410-0017
|
[4] |
BUSH;CAM SHAFT
|
|
| 1-4. |
65.01105-1172B
|
[3] |
BEARING;CAP NO.1.2.6
|
|
| 1-5. |
65.01105-1160F
|
[2] |
BEARING;CAP NO.3.5
|
|
| 1-6. |
65.01105-1156D
|
[1] |
CAP BEARING;THRUST
|
|
| 1-7. |
140202-00123
|
[1] |
CAP,BEARING
|
|
| 1-8. |
65.91710-0035B
|
[14] |
RING;LOCATING
|
|
| 1-9. |
65.90020-0035B
|
[14] |
BOLT;BEARING CAP
|
|
| 10. |
06.01913-3114
|
[1] |
BOLT ASS`Y M8X22
|
|
| 11. |
06.06225-0704
|
[1] |
BOLT;STUD M8X20
|
|
| 12. |
120122-00014
|
[1] |
BOLT,SPACER;M8
|
|
| 13. |
06.16731-2107
|
[2] |
WASHER
|
|
| 14. |
06.11063-8214
|
[1] |
. NUT
|
|
| 15. |
06.08092-2403
|
[1] |
. SCREW;PLUG M12X1.5
|
|
| 16. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 2. |
65.91001-0013A
|
[2] |
PIN;CORE
|
|
| 3. |
65.91020-0013
|
[1] |
PLUG;CORE
|
|
| 4. |
65.90310-0048
|
[6] |
SCREW;PLUG M10X1.5
|
|
| 5. |
06.56180-0714
|
[6] |
RING;SEAL
|
|
| 6. |
65.90310-0091
|
[1] |
SCREW;PLUG M12X1.5X20
|
|
| 7. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 8. |
65.96601A0042
|
[1] |
GASKET;END COVER
|
|
| 9. |
65.91605-0006B
|
[1] |
COVER;END
|
|
