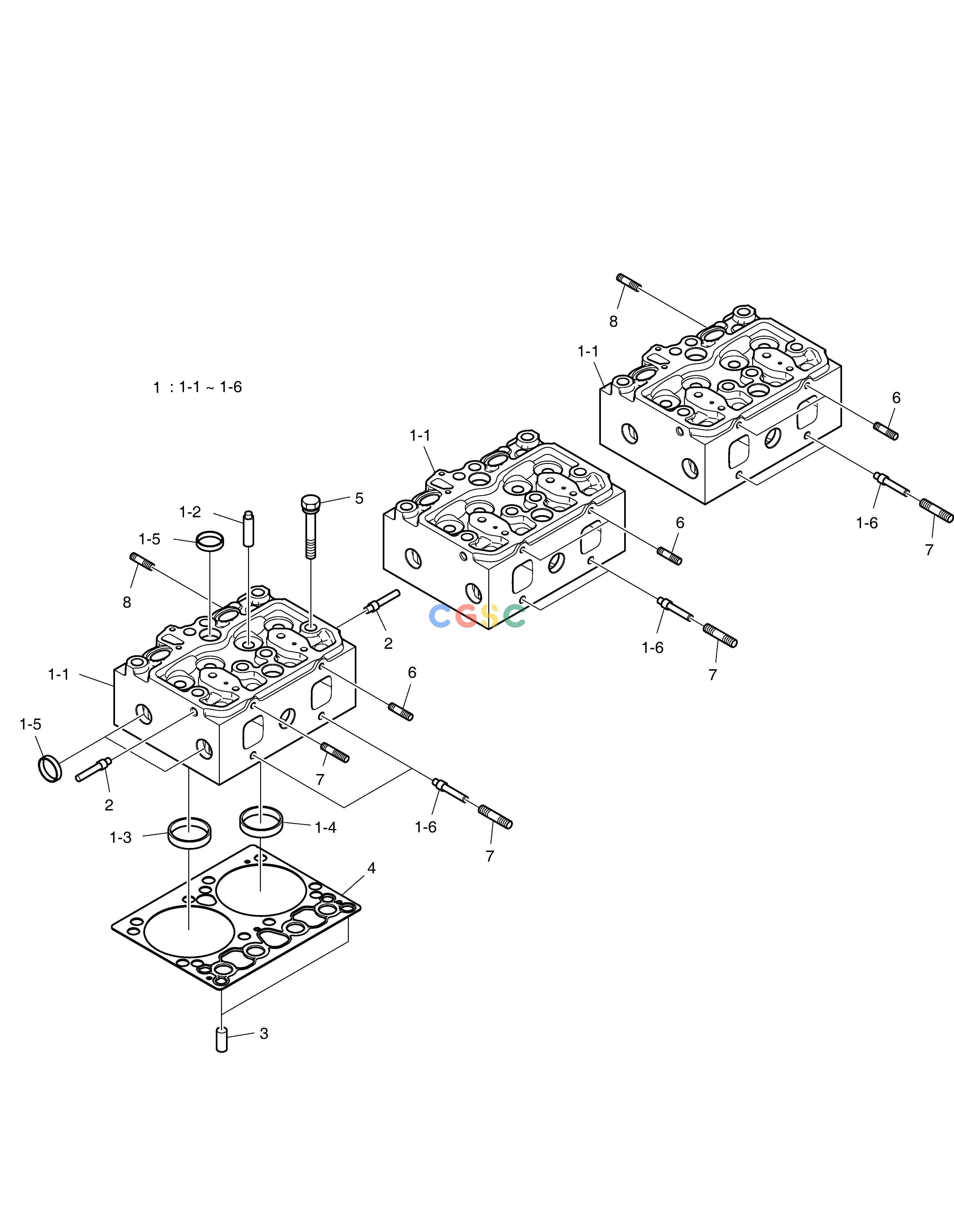

斗山零件查询CYLINDER HEAD SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
722 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150113-00036A
|
[3] |
CYLINDER HEAD ASS'Y
|
|
| 1-1. |
150113-00200
|
[1] |
HEAD,CYLINDER
|
|
| 1-2. |
65.03201-1061
|
[4] |
GUIDE,VALVE
|
|
| 1-3. |
65.03203-1028D
|
[2] |
RING;VALVE SEAT EXHAUST
|
|
| 1-4. |
65.03203-1029G
|
[2] |
RING;VALVE SEAT INTAKE
|
|
| 1-5. |
65.90302-0041
|
[7] |
. PLUG;CORE
|
|
| 1-6. |
65.91001-0013A
|
[2] |
PIN;CORE
|
|
| 2. |
65.91001-0013A
|
[6] |
PIN;CORE
|
|
| 3. |
06.22022-0909
|
[6] |
PIN;DOWEL 6M6X14
|
|
| 4. |
65.03901-0070A
|
[3] |
GASKET;CYLINDER HEAD
|
|
| 5. |
65.90021-0007
|
[24] |
BOLT;CYLINDER HEAD
|
|
| 6. |
120117-00053
|
[6] |
BOLT,STUD
|
|
| 7. |
120117-00046
|
[6] |
BOLT,STUD
|
|
| 8. |
06.06225-0809
|
[2] |
BOLT;STUD M10X35
|
|
