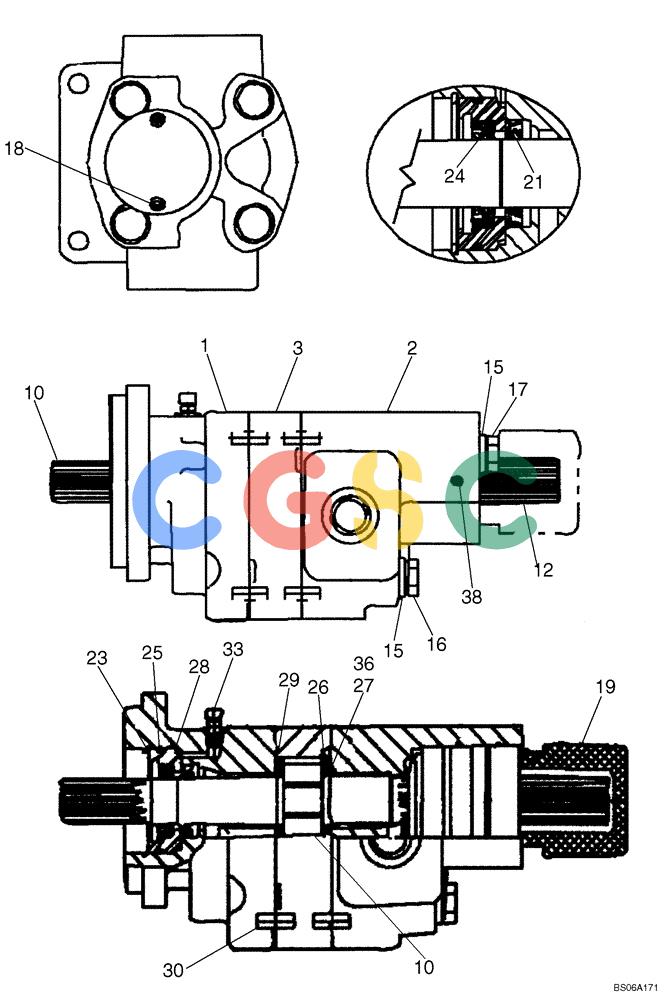

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (08-02A) - PUMP ASSY, HYDRAULIC - MODELS WITH PTO New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
890 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 426958A2 | [1] | HYDRAULIC PUMP,9.01 CC | BURIncl. 1 - 40 |
| . . | 426958A2R | [1] | REMAN-HYD PUMP | BURDC85 (8/04-) |
| . . | 426958A2C | [1] | CORE-HYDRAULIC PUMP | BURReturn Number |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHousing |
| . . | 87392109 | [1] | HYD PUMP REPAIR KIT | BURKIT, Shaft Cover, Incl. 18, 19 |
| 21. | 87392106 | [1] | SEAL | BURSeal, Inner Front Shaft |
| 24. | 87392105 | [1] | SEAL | BURSeal, Outer Front Shaft |
| 25. | 87392169 | [1] | O-RING | BURO-Ring, Outer Front Shaft Seal Retainer |
| 39. | 87392104 | [1] | SEAL | BURSeal, Rear Shaft, Not Illustrated |
| 40. | 87392167 | [1] | O-RING | BURO-Ring, Rear Shaft Seal Retainer, Not Illustrated |
| . . | 87392107 | [1] | HYD PUMP REPAIR KIT | BURKIT, Pump Repair; Incl. 15 - 17, 21 23 - 29, 36, 38 - 40 |
