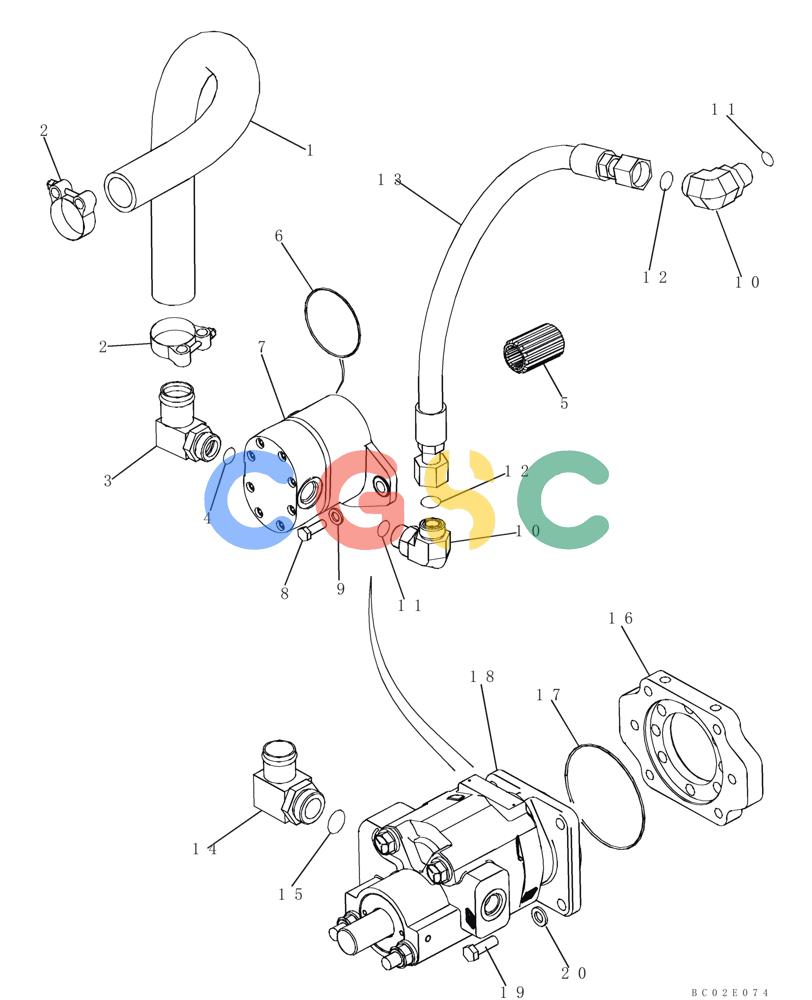

| 1. | 429371A1 | [1] | HOSE,38.10 mm ID x 900.00 mm, SAE 100R4 | BURAt Tank Superseded by part number: 87351690 |
| 2. | 214-2130 | [2] | CLAMP,#30, 1.81"-2.06", T-Bolt | CASCLAMP Incl. Hardware Superseded by part number: 71404506 |
| 3. | 217-222 | [1] | FITTING,90º, 1 1/2" Hose x 1 5/16"-12 ORB Beaded | BRRElbow, 90 deg; Incl. Ref 4; Models Without PTO; For Models With PTO, See Ref 14 - 20 |
| 4. | 237-6016 | [1] | O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro | CAS1-11/64 ID x 7/64 Superseded by part number: 72186238, 167268 |
| 5. | 434451A1 | [1] | SPLINE | BUR |
| 6. | 238-5155 | [1] | O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro | CASModels wthout PTO; if used Superseded by part number: 9828498 |
| 7. | 396801A2 | [1] | PUMP, HYDRAULIC,41 CC | CASNew; Component Parts Not Serviced Separately; Models Without PTO; For Models With PTO, See Ref 14 - 20; For Service Of Seals, Order 361942A1 Kit; Replaces 396801A1 Pump |
| . . | 396801A2R | [1] | REMAN-HYD PUMP | CASDC85 (8/04-) |
| . . | 396801A2C | [1] | CORE-HYDRAULIC PUMP | CASReturn Number |
| . . | 361942A1 | [1] | SEAL KIT | CASRepair; Includes (2) Wearplates, (3) Seals, (2) Rings Superseded by part number: 87042214 |
| 7. | 396801A1R | [1] | REMAN-HYD PUMP | BURRemanufactured; North America Only; 396801A1 Pump Superseded by part number: 396801A1 |
| 7. | 396801A1C | [1] | CORE-HYDRAULIC PUMP | BURReturn Number; 396801A1 Pump |
| 8. | 614-12035 | [2] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd | IH |
| 9. | 896-11012 | [2] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 10. | 201-307 | [2] | ELBOW,90º, 1 3/16"-12 x 1 1/16"-12 Adj, ORFS | CAS90 deg, 3/4 ORFS x 3/4 ORB; Incl. Ref 11, 12 Superseded by part number: 9846848 |
| 11. | 237-6012 | [1] | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | CASBoss End Superseded by part number: 72186120, 167266, 79051113 |
| 12. | 238-6018 | [1] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 9991976 |
| 13. | 429374A2 | [1] | HOSE ASSY. | BUR540 mm (21-5/16 inch); Pump To Valve Inlet |
| . . | 87313817 | [1] | CONDUIT | BURSleve Attached To Ref 13 At Va;ve End; Not Illustrated |
| . . | L18331 | [2] | CABLE TIE,375.9mm L | CASUsed To Attach Sleeve; Not Illustrated Superseded by part number: 529070 |
| 14. | 217-365 | [1] | FITTING,90º, 1 1/2" Hose x 1 5/8"-12 ORB Beaded | CAS90 deg; Incl. Ref 15 |
| 15. | 237-6020 | [1] | O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro | CAS Superseded by part number: 87779389, 570186 |
| 16. | 414180A1 | [1] | HYD PUMP REPAIR KIT | BURAdapter Kit; Incl. (8) M8 x 16 87452750 Screws; (8) 87441426 Screw Seals; (1) 238-5159 3/32 x 5 in O-Ring; (1) 238-5152 3/32 x 3-1/4 in O-Ring; Adapter Plate is NSS |
| 17. | 238-5159 | [1] | O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro | CAS2-3/16 ID x 3/32 Superseded by part number: 175156 |
| 18. | 426958A2 | [1] | HYDRAULIC PUMP,9.01 CC | BURSee Figure 08-02A |
| . . | 426958A2R | [1] | REMAN-HYD PUMP | BURDC85 (8/04-) |
| . . | 426958A2C | [1] | CORE-HYDRAULIC PUMP | BURReturn Number |
