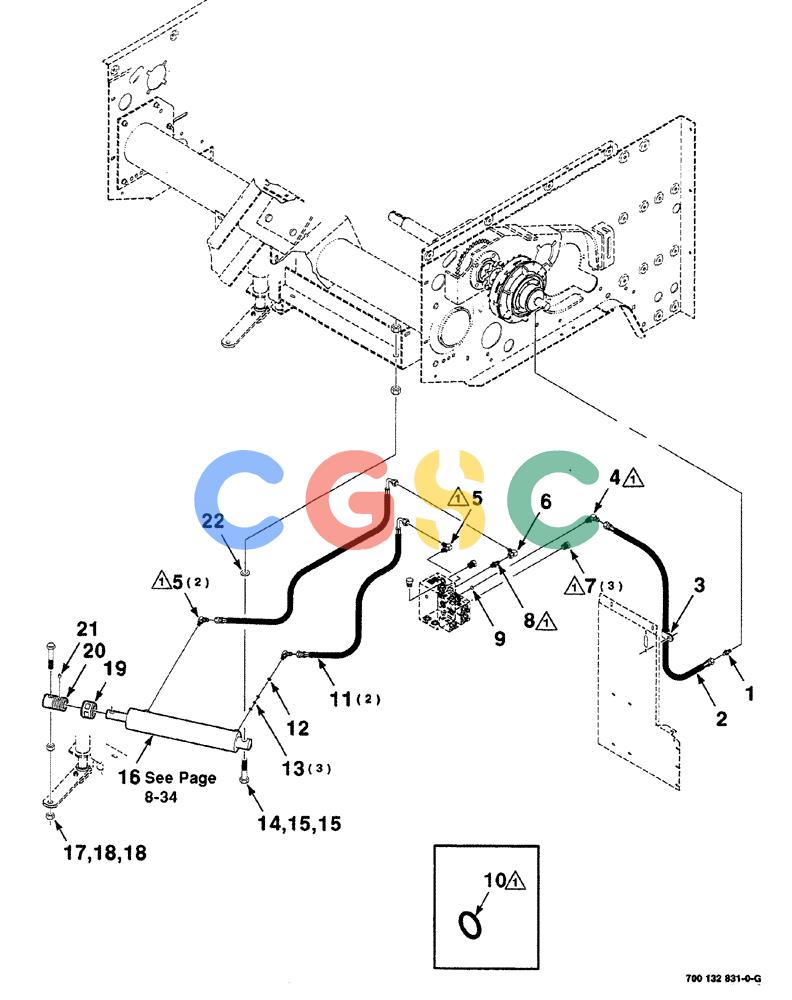

| 1. |
86513589
|
[1] |
HYD CONNECTOR,7/16" - 20 JIC x 1/8" - 27 NPT
|
WIN
straight
|
| 2. |
700719510
|
[1] |
HYDRAULIC HOSE,0.25" ID x 19.21"
|
HFI
hydraulic
|
| 3. |
515-25127
|
[1] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Line Superseded by part number: 86632595
|
| 4. |
700701834
|
[1] |
ELBOW
|
HFI
90°, includes: REF. 10 Superseded by part number: 00400160
|
| 5. |
218-5105
|
[3] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Includes: Ref. 10 Superseded by part number: 76344, 72186128
|
| 6. |
218-980
|
[1] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
|
CAS
Superseded by part number: 72186136, 86629586
|
| 7. |
7746456
|
[3] |
PLUG
|
L
includes: REF. 10
|
| 8. |
218-5057
|
[1] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
Incl. Ref. 10 Superseded by part number: 76350
|
| 9. |
700719464
|
[1] |
ORIFICE
|
HFI
9/16"-18, plate, .026
|
| 10. |
738468
|
[1] |
O-RING
|
IH
|
| 11. |
700719107
|
[2] |
HOSE
|
HFI
hydraulic
|
| 12. |
674516R1
|
[1] |
PORT
|
IH
ORIFICE plate, .062
|
| 13. |
495-21019
|
[3] |
WASHER,#8
|
CAS
Superseded by part number: 280299, 72187261
|
| 14. |
413-1252
|
[1] |
BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5
|
CAS
3/4"-10 x 3-1/4", hex. Superseded by part number: 88747
|
| 15. |
425-1012
|
[2] |
NUT,3/4"-10, G5
|
CAS
Superseded by part number: 280954
|
| 16. |
700719879
|
[1] |
CYLINDER
|
HFI
ASSY. hydraulic
|
| 17. |
413-1056
|
[1] |
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
|
CAS
Superseded by part number: 280119
|
| 18. |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 19. |
700135930
|
[1] |
NUT
|
HFI
cylinder stop
|
| 20. |
700135809
|
[1] |
STOP
|
HFI
cylinder
|
| 21. |
700716646
|
[1] |
STOP
|
CAS
|
| 22. |
95-81051
|
[1] |
WASHER,19.84mm ID x 31.75mm OD x 3.81mm Thk
|
CAS
3/4" x 10, gauge, narrow rim machinery bushing
|
