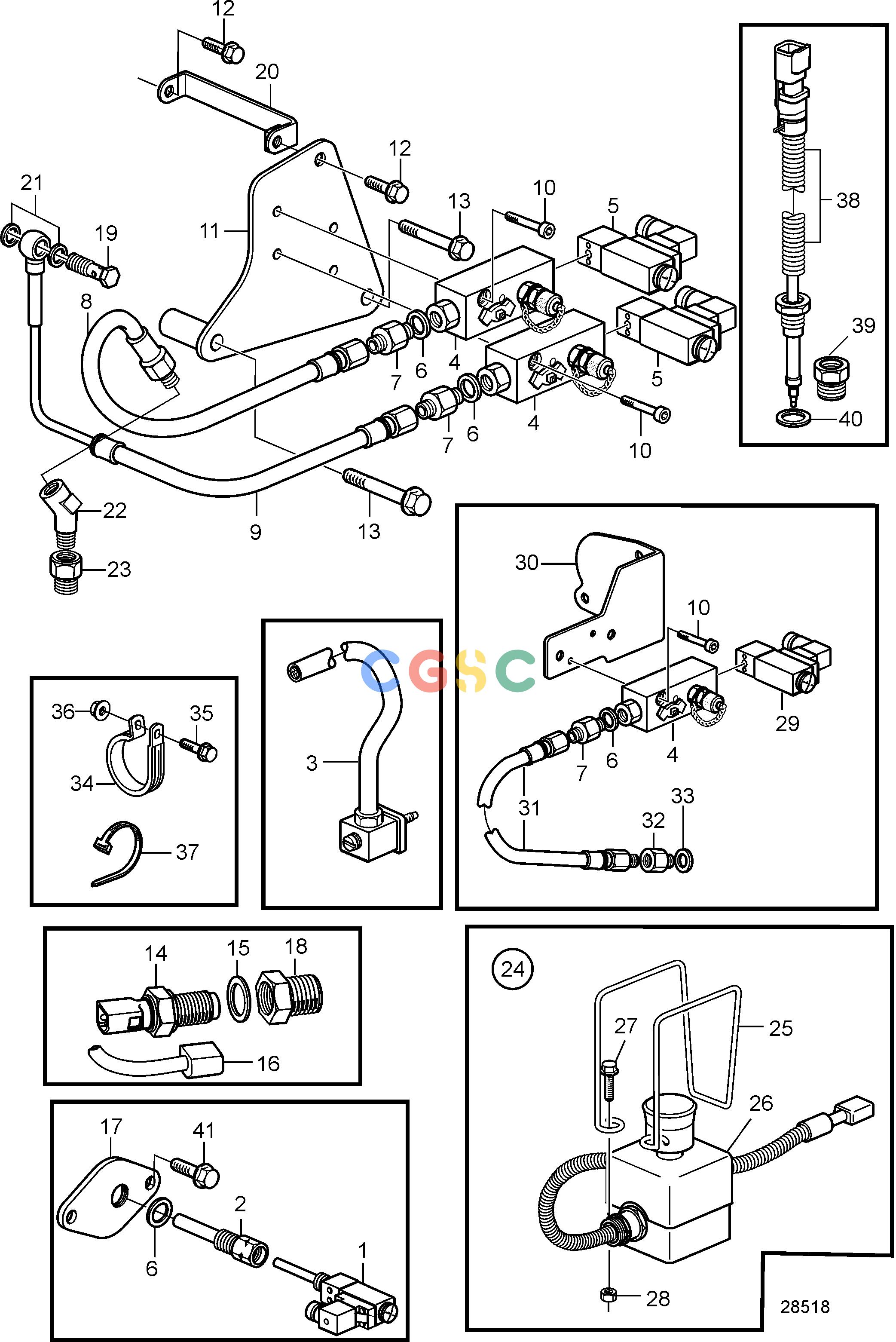

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Electrical SystemContacts and Sensors. Shut Down HEEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
881869
|
[1] |
Thermo monitor, coolant water/oil temp.
|
Calibrated separately
|
| 2. |
873715
|
[1] |
Sleeve
|
|
| 3. |
22199384
|
[1] |
Wiring harness
|
Extension cable for sensors, shut down., L=2,0m
|
| 3. |
22199379
|
[1] |
Wiring harness
|
Extension cable for sensors, shut down., L=4,0m
|
| 3. |
22584711
|
[1] |
Wiring harness
|
Extension cable oil pressure reverse gear, L=1400mm
|
| 4. |
3831442
|
[1] |
Block
|
|
| 5. |
881871
|
[2] |
Pressure monitor, coolant water/oilpressure
|
0-4bar
|
| 5. |
21552234
|
[1] |
Pressure monitor, oil pressure
|
|
| 6. |
18817
|
[1] |
Gasket
|
|
| 7. |
957030
|
[1] |
Nipple
|
|
| 8. |
3835281
|
[1] |
Oil hose
|
For oil pressure.
|
| 9. |
3819807
|
[1] |
Hose
|
For fresh water pressure.
|
| 10. |
947671
|
[1] |
Hex. socket screw
|
|
| 11. |
3818688
|
[1] |
Bracket
|
|
| 12. |
984734
|
[2] |
Flange screw
|
|
| 13. |
984742
|
[2] |
Flange screw
|
|
| 14. |
862251
|
[1] |
Tachometer sensor
|
|
| 15. |
948884
|
[1] |
Gasket
|
|
| 16. |
3819589
|
[1] |
Wiring harness
|
|
| 17. |
3818686
|
[1] |
Cover
|
|
| 18. |
872939
|
[1] |
Adapter
|
|
| 19. |
941686
|
[1] |
Hollow screw
|
|
| 20. |
3819647
|
[1] |
Bracket
|
|
| 21. |
11996
|
[2] |
Gasket
|
|
| 22. |
809109
|
[1] |
Elbow nipple
|
|
| 23. |
947899
|
[1] |
Reduction nipple
|
|
| 24. |
|
|
|
|
| 25. |
3838198
|
[1] |
Protecting brace
|
|
| 26. |
3588154
|
[1] |
Emergency stop
|
|
| 27. |
984733
|
[1] |
Flange screw
|
|
| 28. |
990940
|
[1] |
Flange nut
|
|
| 29. |
889629
|
[1] |
Pressure monitor, reverseing gear
|
For reverse gear, 5-30 bar
|
| 29. |
21294587
|
[1] |
Pressure monitor, reverse gear
|
For reverse gear, 4 bar
|
| 30. |
3819652
|
[1] |
Bracket
|
|
| 31. |
3819809
|
[1] |
Oil hose
|
|
| 32. |
180002
|
[1] |
Nipple
|
|
| 33. |
18817
|
[1] |
Gasket
|
|
| 34. |
949746
|
[1] |
Clamp
|
For hose 3819807.
|
| 34. |
949747
|
[1] |
Clamp
|
For hose 3819807.
|
| 34. |
945081
|
[2] |
Clamp
|
For hose 3835281.
|
| 35. |
984734
|
[1] |
Flange screw
|
For hose 3819807.
|
| 35. |
984726
|
[2] |
Flange screw
|
For hose 3835281.
|
| 36. |
990940
|
[1] |
Flange nut
|
For hose 3819807.
|
| 37. |
948211
|
[1] |
Cable tie
|
|
| 38. |
21126692
|
[1] |
Temperature sensor
|
|
| 39. |
21589402
|
[1] |
Adapter
|
|
| 40. |
947626
|
[1] |
Gasket
|
|
| 41. |
984735
|
[2] |
Flange screw
|
|
