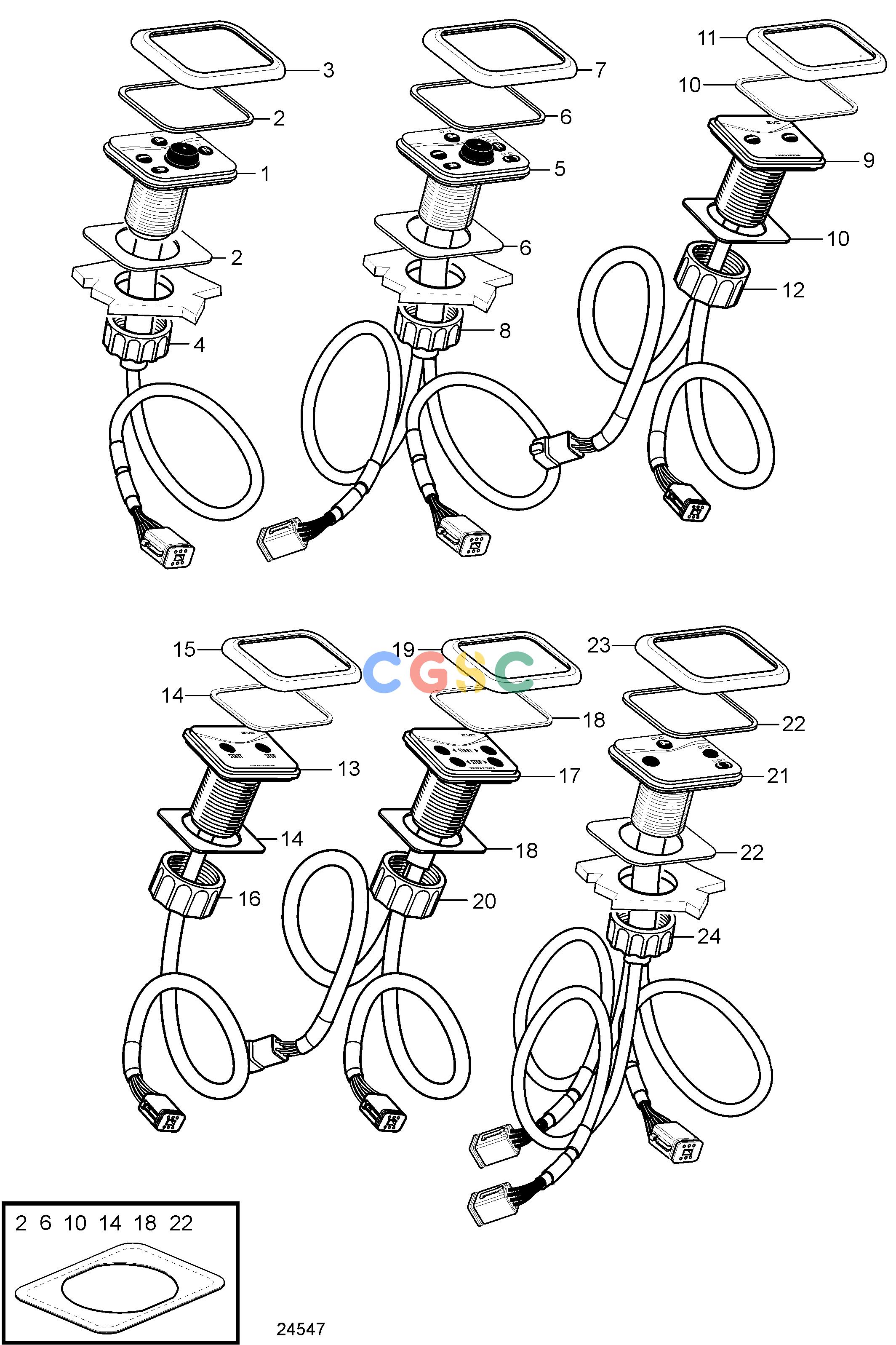

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Electrical SystemControl Panel, EVC-C2EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
841 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21310162
|
[1] |
Control panel
|
Single installation
|
| 2. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 3. |
3808131
|
[1] |
Frame
|
|
| 4. |
3808134
|
[1] |
Nut
|
|
| 5. |
21310164
|
[1] |
Control panel
|
Twin Installation
|
| 6. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 7. |
3808131
|
[1] |
Frame
|
|
| 8. |
3808134
|
[1] |
Nut
|
|
| 9. |
21144011
|
[1] |
Control panel
|
Sportfish
|
| 10. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 11. |
3808131
|
[1] |
Frame
|
|
| 12. |
3808134
|
[1] |
Nut
|
|
| 13. |
40005641
|
[1] |
Control panel, start/stop
|
Single installation, Dual station
|
| 14. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 15. |
3808131
|
[1] |
Frame
|
|
| 16. |
3808134
|
[1] |
Nut
|
|
| 17. |
40005642
|
[1] |
Control panel, start/stop
|
Twin Installation, Dual station
|
| 18. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 19. |
3808131
|
[1] |
Frame
|
|
| 20. |
3808134
|
[1] |
Nut
|
|
| 21. |
3594954
|
[1] |
Kit, start/stop
|
Triple installation.
|
| 22. |
3808135
|
[1] |
Gasket
|
|
| 23. |
3808131
|
[1] |
Frame
|
|
| 24. |
3808134
|
[1] |
Nut
|
|
