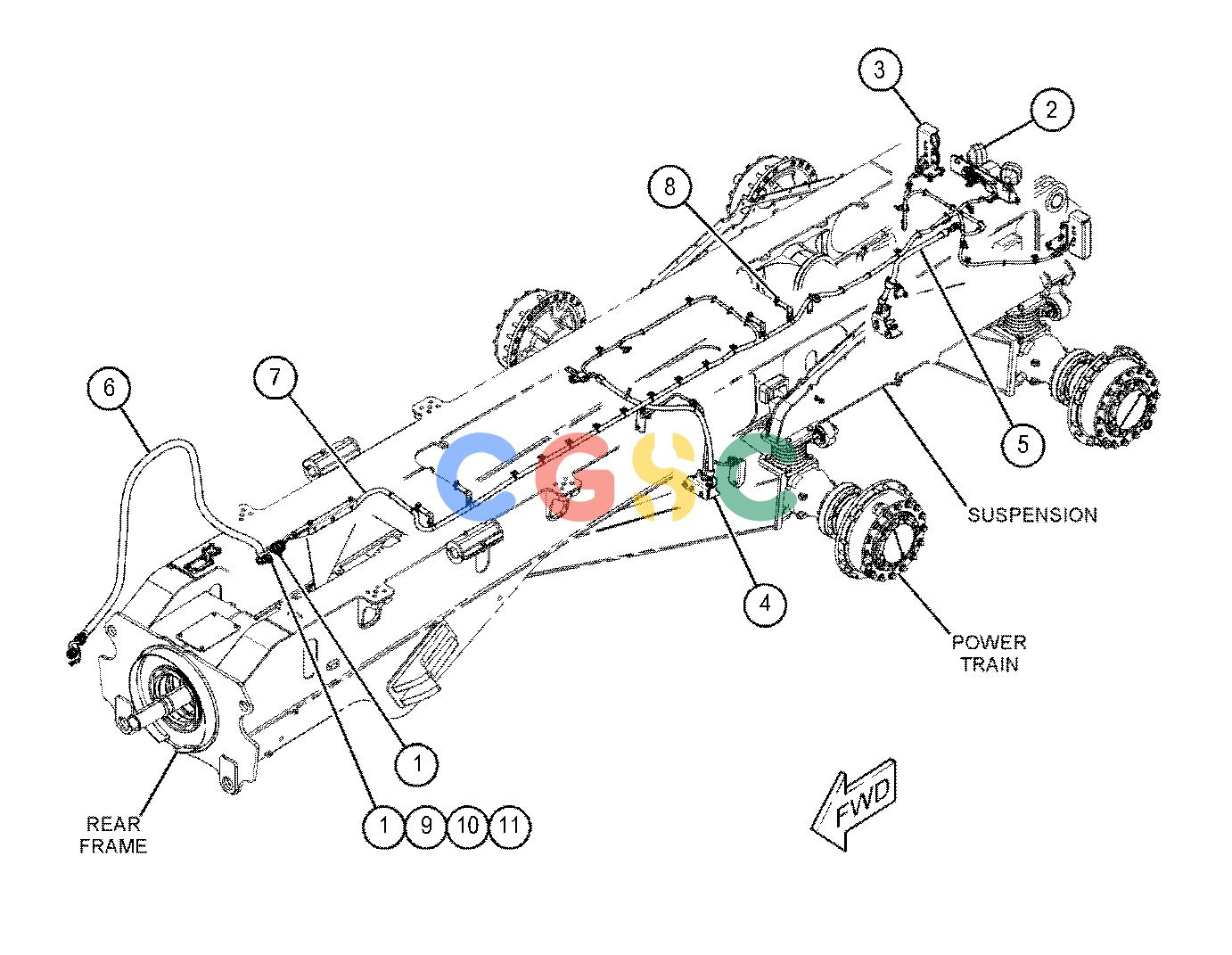

卡特零件查询（725C2） 465-4996: WIRING GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
147 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 383-6182Y | [1] | WIRING GP-LIGHTING(BACKUP) | |
| 3. | 454-6963Y | [1] | WIRING GP-LIGHTING | |
| 4. | 465-1297Y | [1] | WIRING GP-REAR(CENTER) | |
| 5. | 467-6116Y | [1] | WIRING GP-REAR(AXLE) | |
| 6. | 467-8423Y | [1] | HARNESS AS-REAR(HITCH) | |
| 7. | 469-2155Y | [1] | HARNESS AS-REAR | |
| 8. | 469-3853Y | [1] | WIRING GP-REAR | |
| 9. | 4P-8134 | [1] | CLIP(LADDER) | |
| 10. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
