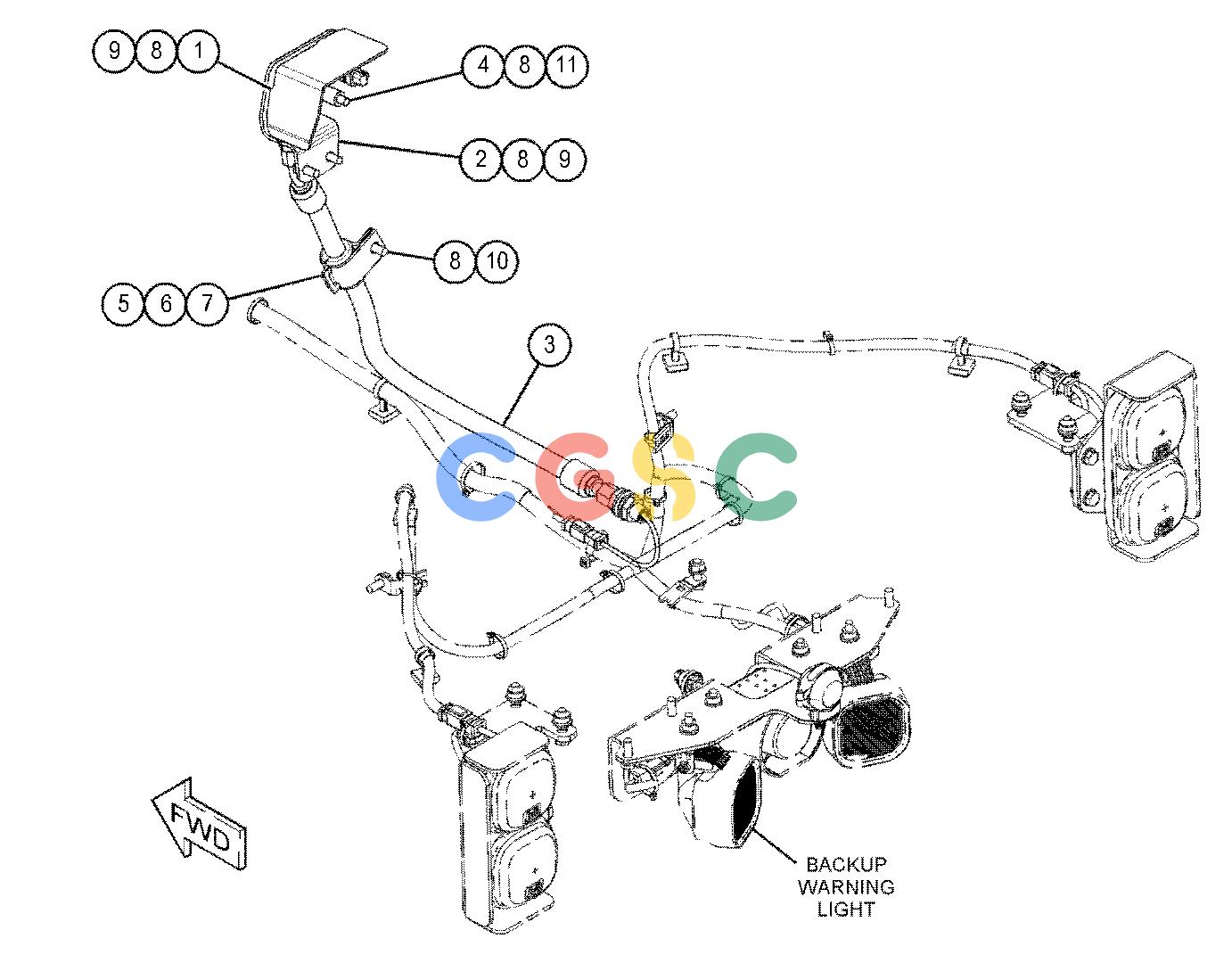

卡特零件查询（725C2） 467-6116: WIRING GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
958 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 465-1305 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 2. | 465-1306 | [1] | PLATE | |
| 3. | 467-6115Y | [1] | HARNESS AS-SENSOR(REAR AXLE) | |
| 4. | 448-7021 | [1] | SPACER(11.3X19.05X90-MM THK) | |
| 5. | 5P-7464 | [1] | CLIP(SLOT) | |
| 6. | 5P-7465 | [1] | CLIP(TAB) | |
| 7. | 6V-7359 | [1] | GROMMET(25-MM ID, 37-MM OD) | |
| 8. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 10. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 11. | 8T-6685M | [1] | BOLT(M10X1.5X110-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
