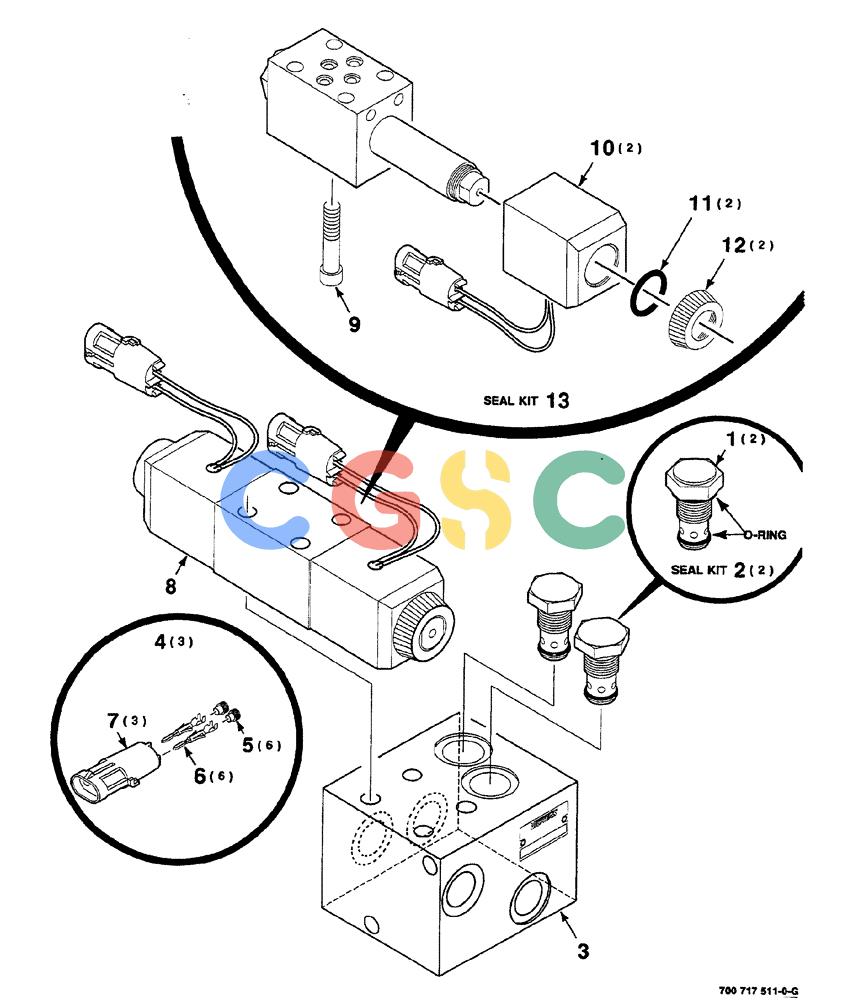

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (8-042) - HYDRAULIC CONTROL VALVE ASSEMBLY, MESH WRAP, 700717511 COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700717511
|
[1] |
MANIFOLD VALVE
|
HFI
ASSY., hydraulic, control
|
| 1. |
700717726
|
[2] |
VALVE
|
CAS
piloted check Superseded by part number: 87585738
|
| 2. |
700718409
|
[2] |
KIT
|
CAS
seal Superseded by part number: S301087
|
| 3. |
700717722
|
[1] |
MANIFOLD VALVE
|
HFI
|
| 4. |
700708753
|
[3] |
REPAIR KIT
|
CAS
harness repair, includes: REF. 5, 6 & 7 Superseded by part number: 87692877, 84286327, 225120C1
|
| 5. |
700706400
|
[6] |
PLUG
|
IH
Superseded by part number: 84286327
|
| 6. |
700706401
|
[6] |
TERMINAL
|
CAS
PIN Superseded by part number: 225120C1
|
| 7. |
700706399
|
[3] |
ELEC CONNECTOR,14 - 20 SAE
|
CAS
2-way shroud Superseded by part number: 87692877
|
| 8. |
700717723
|
[1] |
VALVE
|
HFI
directional
|
| 9. |
700714189
|
[1] |
KIT
|
CAS
bolt
|
| 10. |
700715392
|
[2] |
SOLENOID
|
CAS
Superseded by part number: 86602561
|
| 11. |
700718870
|
[2] |
O-RING
|
CAS
|
| 12. |
700718869
|
[2] |
NUT
|
CAS
plastic Superseded by part number: 86575234
|
| 13. |
700717725
|
[1] |
SEAL KIT
|
HFI
KIT
|
