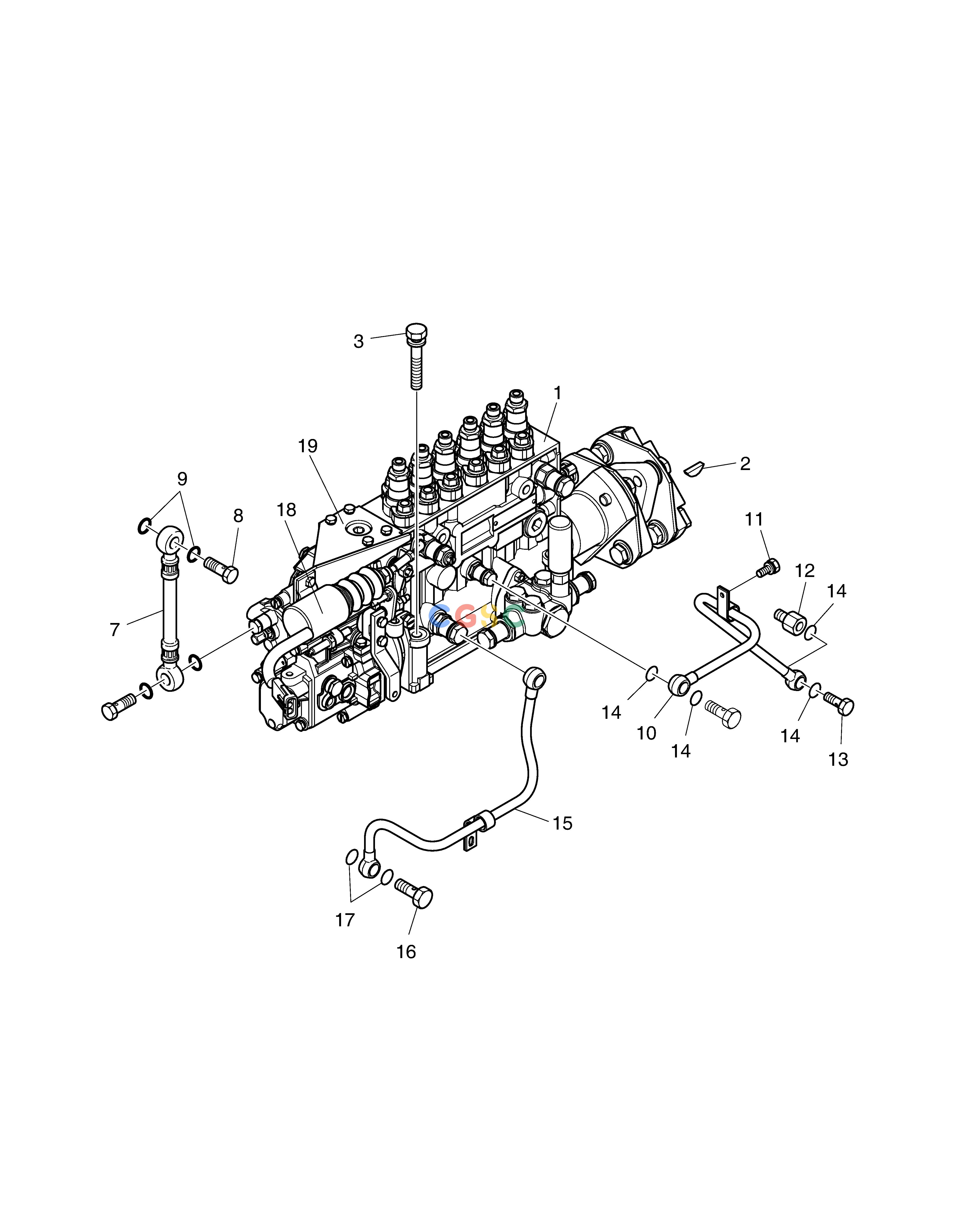

斗山零件查询INJECTION PUMP SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
755 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400912-00293
|
[1] |
PUMP ASSY,FUEL INJECTION
|
|
| 10. |
65.05701-5356
|
[1] |
PIPE;OIL DELIVERY(I/P)
|
|
| 11. |
06.01913-2910
|
[1] |
. BOLT;HEX. M6X12
|
|
| 12. |
65.98130-0029
|
[1] |
ADAPTER
|
|
| 13. |
65.98150-0027
|
[1] |
SCREW;HOLLOW
|
|
| 14. |
06.56180-0714
|
[4] |
RING;SEAL
|
|
| 15. |
65.05701-5358
|
[1] |
OIL RETURN PIPE ASS`Y(I/P)
|
|
| 16. |
65.90420-0012A
|
[1] |
SCREW;HOLLOW M16X2
|
|
| 17. |
06.56190-0708
|
[2] |
RING;SEAL
|
|
| 18. |
300743-00064
|
[1] |
SOLENOID,STOP
|
|
| 19. |
110406-03944
|
[1] |
BRACKET
|
|
| 2. |
06.29141-0215
|
[1] |
KEY;WOODRUFF
|
|
| 3. |
06.01923-3228
|
[4] |
BOLT ASS'Y M10X85
|
|
| 7. |
65.08301-6010A
|
[1] |
HOSE;AIR
|
|
| 8. |
65.98150-0053B
|
[1] |
SCREW;HOLLOW
|
|
| 9. |
06.56180-0716
|
[2] |
. RING;SEAL
|
|
