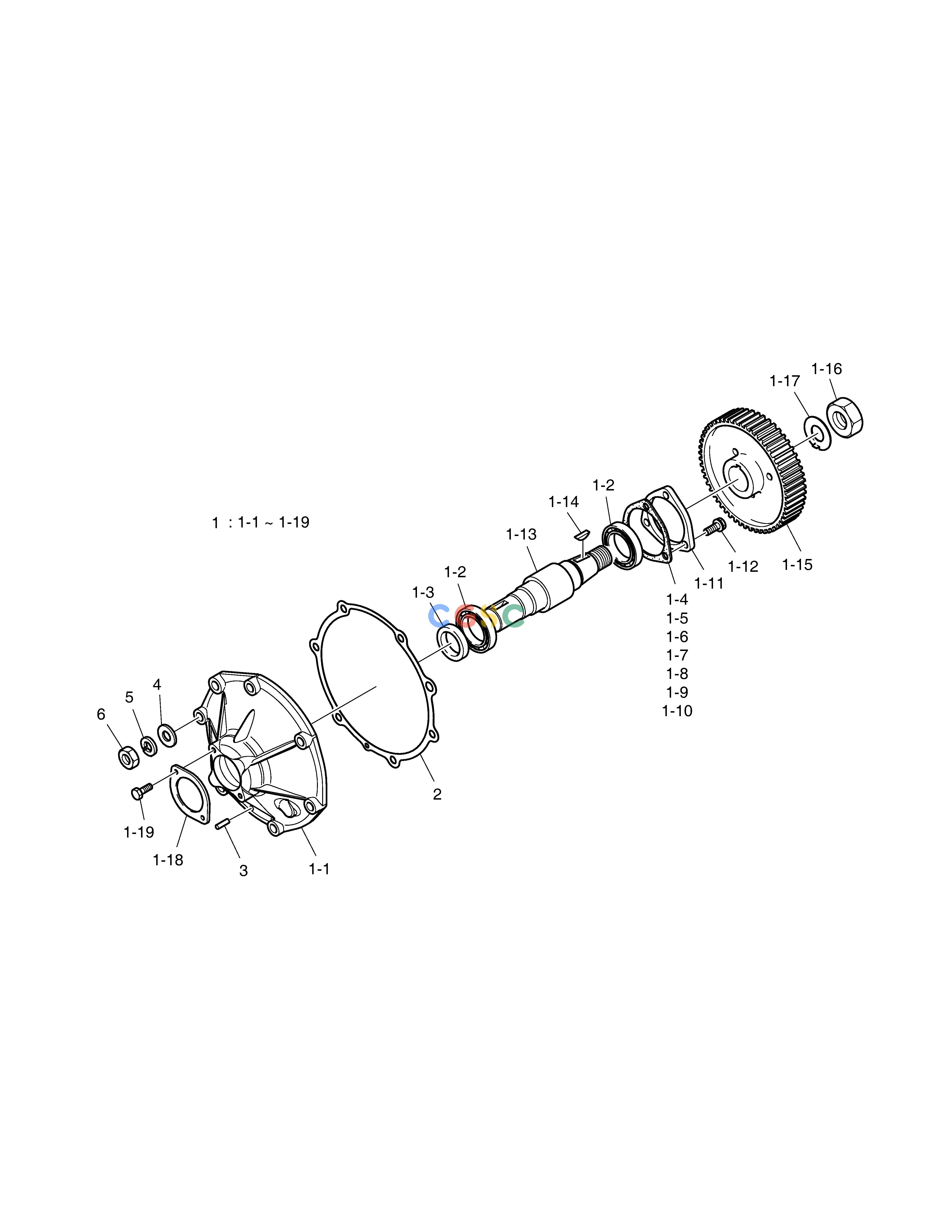

斗山零件查询INJECTION PUMP DRIVE SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
619 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
130412-00119
|
[1] |
INJECTION PUMP DRIVE ASS'Y
|
|
| 1-1. |
65.11309-0005C
|
[1] |
. HOUSING;INJ PUMP DRIVE
|
|
| 1-10. |
65.11308-0061
|
[1] |
. SHIM；0.05mm
|
|
| 1-11. |
65.11312-0006A
|
[1] |
. COVER
|
|
| 1-12. |
06.01913-3114
|
[3] |
BOLT ASS`Y M8X22
|
|
| 1-13. |
65.11302-0010B
|
[1] |
. SHAFT,INJECTION PUMP DRIVE;I
|
|
| 1-14. |
06.29141-0215
|
[1] |
KEY;WOODRUFF
|
|
| 1-15. |
65.11301-0009
|
[1] |
. GEAR;INJECTION PUMP DRIVE
|
|
| 1-16. |
120307-00133
|
[1] |
. NUT,HEX
|
|
| 1-17. |
06.16050-0316
|
[1] |
. WASHER;LOCK
|
|
| 1-18. |
65.98112-0027
|
[1] |
. FLANGE
|
|
| 1-19. |
06.01913-2910
|
[2] |
. BOLT;HEX. M6X12
|
|
| 1-2. |
06.32092-0307
|
[2] |
. BEARING;TAPER ROLLER
|
|
| 1-3. |
65.01510-0039
|
[1] |
. SEAL;OIL
|
|
| 1-4. |
65.11308-0056
|
[1] |
. SHIM；0.3mm
|
|
| 1-5. |
65.11308-0002
|
[1] |
. SHIM 0.20mm
|
|
| 1-6. |
65.11308-0003
|
[1] |
. SHIM 0.15mm
|
|
| 1-7. |
65.11308-0004
|
[1] |
. SHIM 0.10mm
|
|
| 1-8. |
65.11308-0058
|
[1] |
. SHIM；0.06mm
|
|
| 1-9. |
65.11308-0060
|
[1] |
. SHIM；0.08mm
|
|
| 2. |
65.11902-0018A
|
[1] |
GASKET;MOUNTING FLANGE
|
|
| 3. |
06.22220-1110
|
[1] |
PIN;SPRING
|
|
| 4. |
06.15010-2312
|
[7] |
WASHER;PLAIN
|
|
| 5. |
06.16731-2108
|
[7] |
WASHER;SPRING
|
|
| 6. |
06.11063-8215
|
[7] |
NUT;HEX. M10
|
|
