神钢零件查询(F4HFE6132 A003) - ENGINE 5801753676 - 47541755 (1/14-) (55.015.AC) - ENGINE, SENSOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
464 次

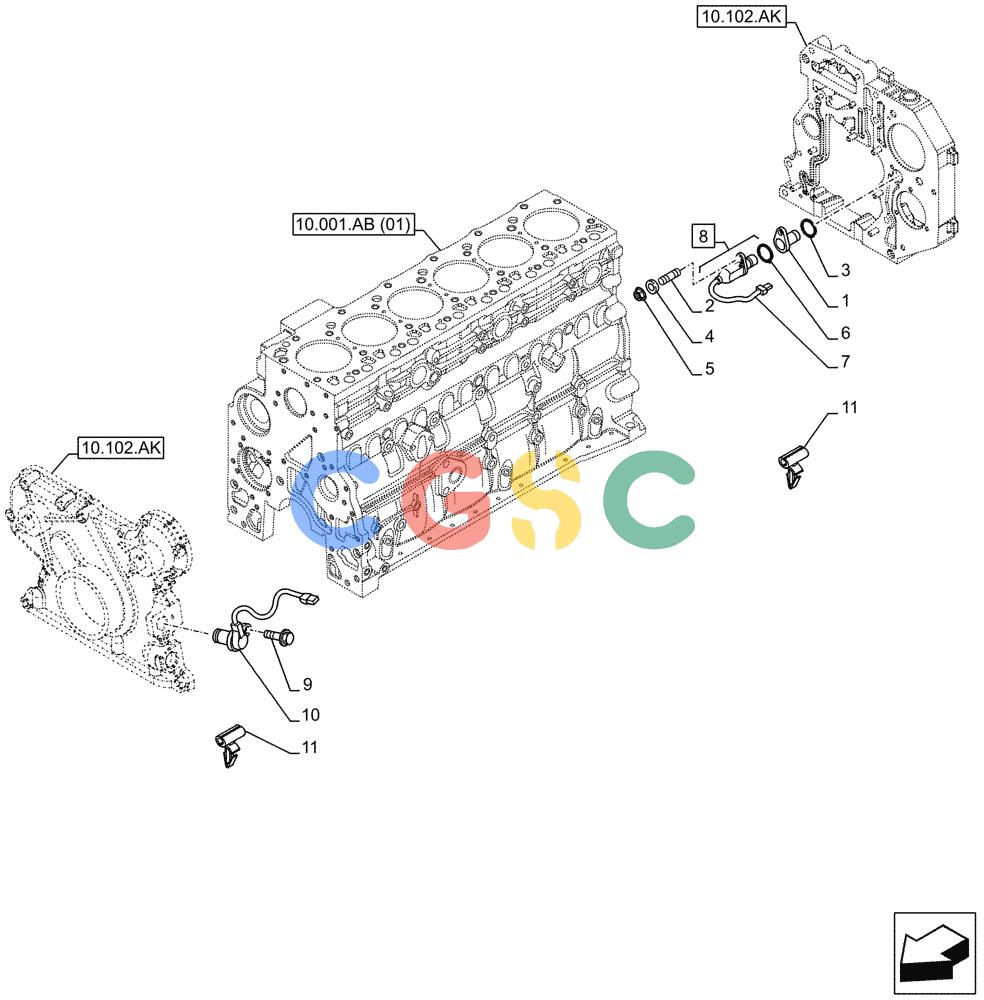

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504356683 | [1] | PIPE COUPLING | PIPE COUPLING |
| 2. | 504388426 | [1] | STUD | STUD |
| 3. | 17278781 | [1] | O-RING | TOR |
| 4. | 4899124 | [1] | WASHER | TOR |
| 5. | 17037821 | [1] | NUT | LECM6 x 1 Superseded by part number: 15896221 |
| 6. | 17278481 | [1] | O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro | TOR Superseded by part number: 2852820 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONSensor, Incl in 8 |
| 8. | 4890190 | [1] | SENSOR | TORASSY, Incl 6, 7 |
| 9. | 4899110 | [1] | SCREW,Hex Flg, M6 x 1 x 20 | TOR |
| 10. | 4890189 | [1] | SENSOR | TOR |
| 11. | 2852486 | [1] | CABLE CLIP | TOR Superseded by part number: |
