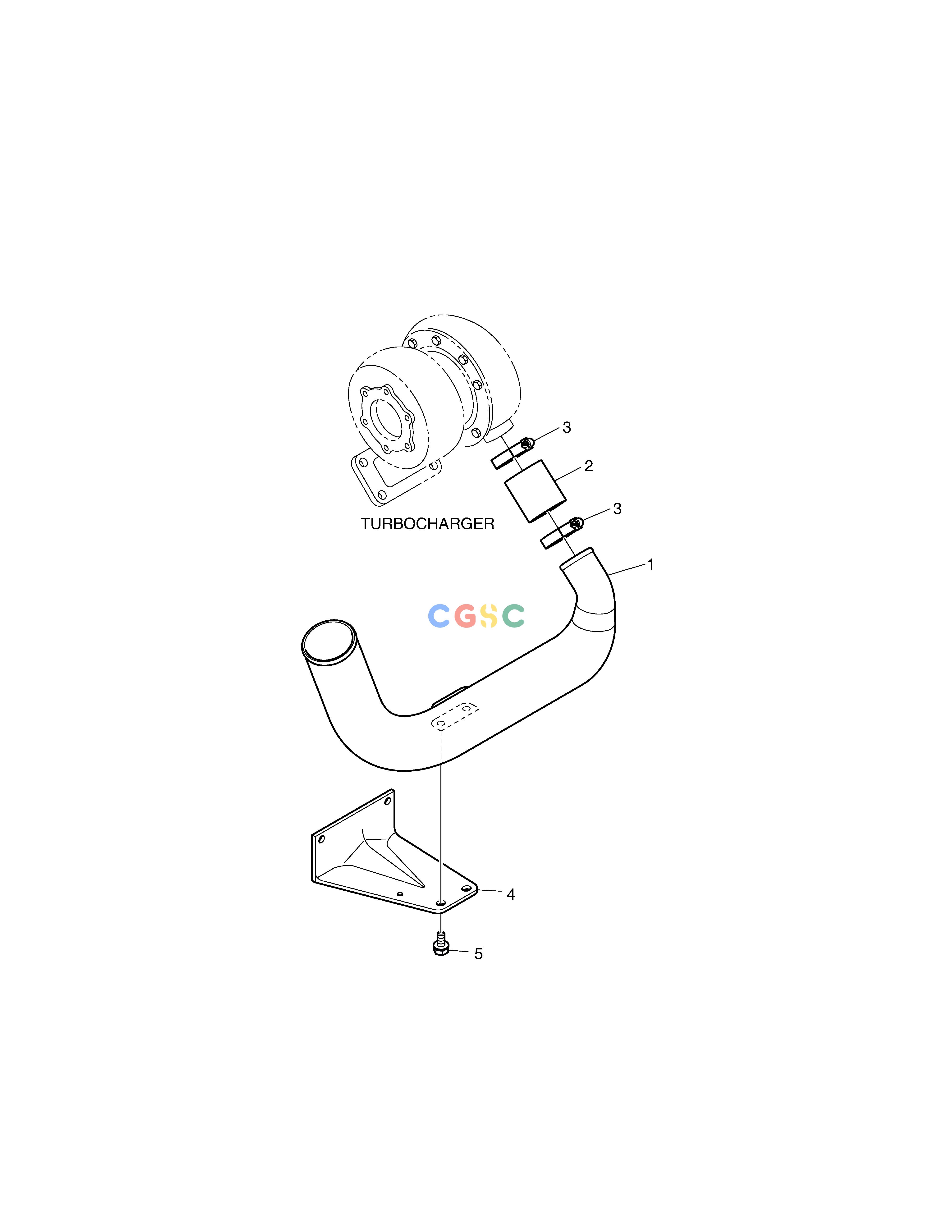

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 420209-00067 | [1] | PIPE,AIR INLET;DE08TIS | |
| 2. | 65.96301-0279 | [1] | HOSE;RUBBER | |
| 3. | 06.67020-0109 | [2] | CLAMP;HOSE | |
| 4. | 65.09440-0010 | [1] | BRACKET | |
| 5. | 06.01923-3215 | [2] | BOLT ASS`Y M10X25 |
广数供应链运营团队, 15 02月, 2025，浏览： 699 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 420209-00067 | [1] | PIPE,AIR INLET;DE08TIS | |
| 2. | 65.96301-0279 | [1] | HOSE;RUBBER | |
| 3. | 06.67020-0109 | [2] | CLAMP;HOSE | |
| 4. | 65.09440-0010 | [1] | BRACKET | |
| 5. | 06.01923-3215 | [2] | BOLT ASS`Y M10X25 |
