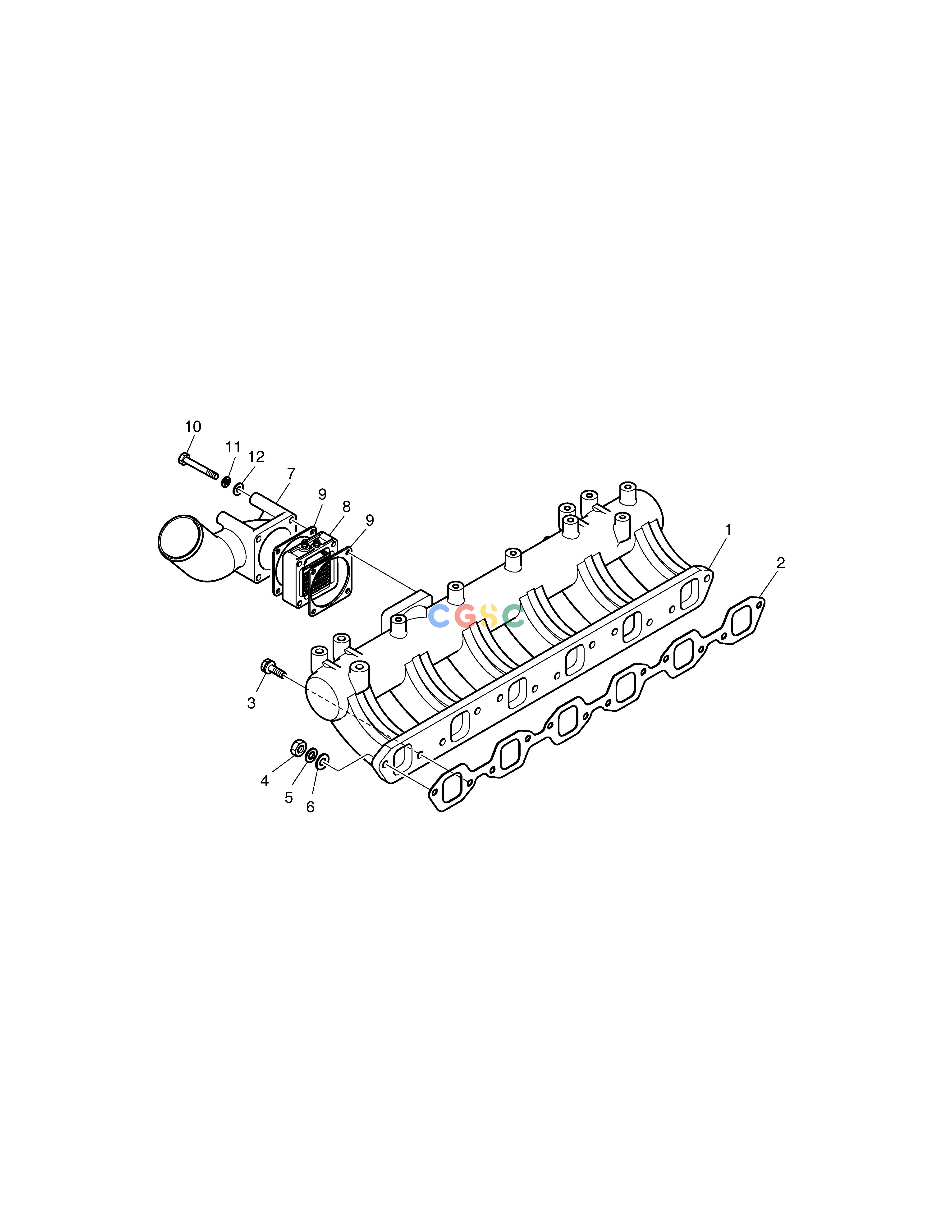

斗山零件查询INTAKE MANIFOLD SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
231 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
240203-00058
|
[1] |
MANIFOLD,INTAKE;DE08TIS
|
|
| 10. |
06.01013-9129
|
[4] |
BOLT M8X140
|
|
| 11. |
06.16731-2107
|
[4] |
WASHER
|
|
| 12. |
06.15010-2311
|
[4] |
WASHER
|
|
| 2. |
65.08902A0024
|
[1] |
GASKET;INTAKE MANIFOLD
|
|
| 3. |
06.01923-3218
|
[8] |
BOLT ASS`Y M10X35
|
|
| 4. |
06.11063-8215
|
[2] |
NUT;HEX. M10
|
|
| 5. |
06.16731-2108
|
[2] |
WASHER;SPRING
|
|
| 6. |
06.15030-0514
|
[2] |
WASHER;PLAIN
|
|
| 7. |
240401-00062
|
[1] |
STAKE,INTAKE;DE08TIS
|
|
| 8. |
65.26803-7028B
|
[1] |
AIR HEATER
|
|
| 9. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
