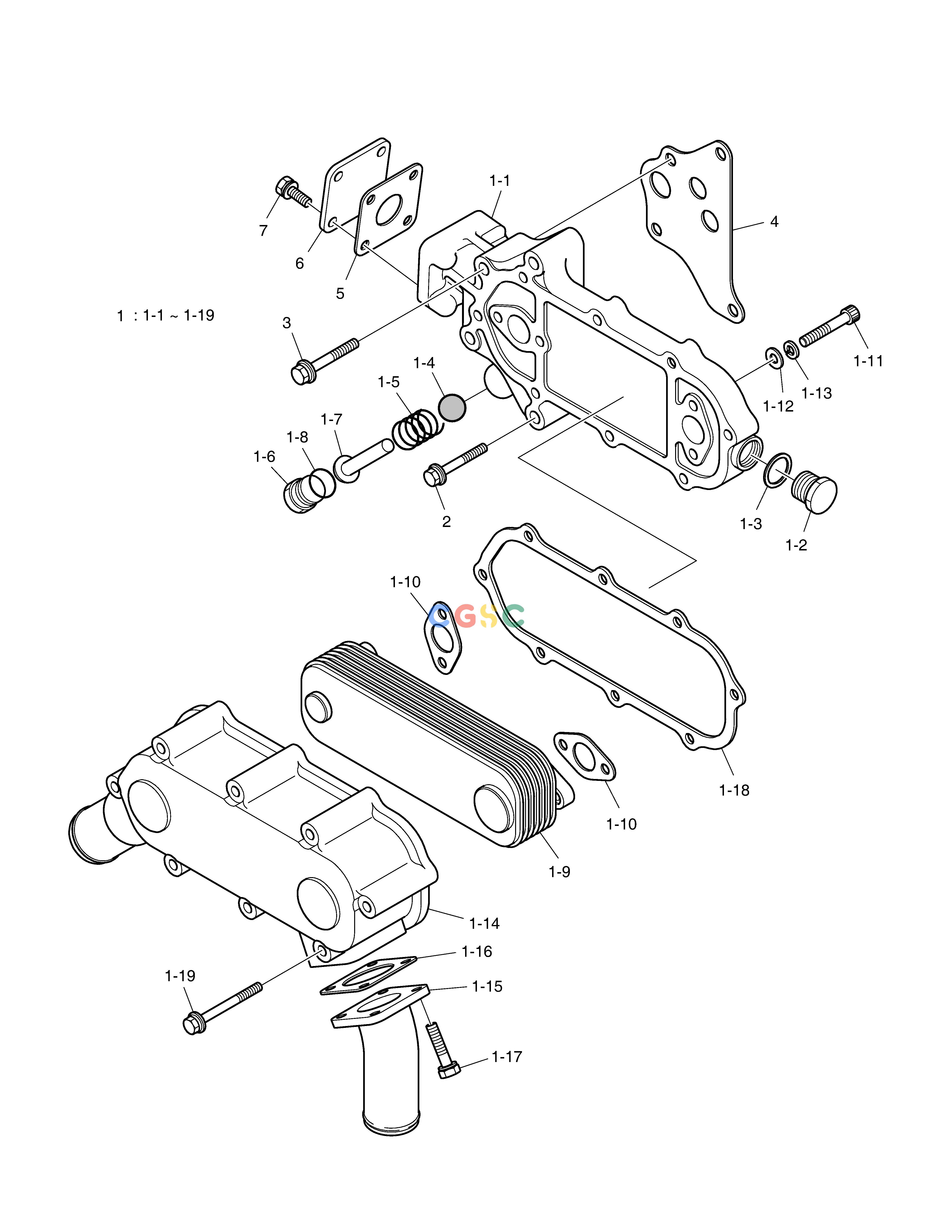

斗山零件查询OIL COOLER SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
857 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05601-7137B
|
[1] |
OIL COOLER ASS'Y
|
|
| 1-1. |
65.05604-5030
|
[1] |
HOUSING;OIL COOLER
|
|
| 1-10. |
65.96601-0018A
|
[2] |
GASKET;OIL COOLER
|
|
| 1-11. |
06.02090-0418
|
[4] |
BOLT;SOCKET HEAD M8X45
|
|
| 1-12. |
06.15030-0513
|
[4] |
WASHER;PLAIN
|
|
| 1-13. |
06.16110-0106
|
[4] |
. WASHER
|
|
| 1-14. |
65.05605-0028A
|
[1] |
COVER;OIL COOLER
|
|
| 1-15. |
65.06301-0160
|
[1] |
PIPE;COOLING WATER
|
|
| 1-16. |
65.96601-0029
|
[1] |
GASKET;FLANGE
|
|
| 1-17. |
06.01923-3112
|
[4] |
BOLT ASS`Y M8X18
|
|
| 1-18. |
65.05902-0008A
|
[1] |
GASKET;OIL COOLER COVER
|
|
| 1-19. |
06.01923-3126
|
[8] |
BOLT;HEX. M8X75
|
|
| 1-2. |
65.90310-0136A
|
[1] |
SCREW;PLUG
|
|
| 1-3. |
06.56190-0718
|
[1] |
RING;SEAL
|
|
| 1-4. |
06.31641-0429
|
[1] |
BALL;BY-PASS
|
|
| 1-5. |
65.97601-0004
|
[1] |
SPRING
|
|
| 1-6. |
65.90310-0003
|
[1] |
SCREW;PLUG M26X1.5
|
|
| 1-7. |
65.05611-0001
|
[1] |
PIN
|
|
| 1-8. |
06.56190-0728
|
[1] |
RING;SEAL
|
|
| 1-9. |
65.05606-5020
|
[1] |
ELEMENT;OIL COOLER
|
|
| 2. |
65.90001-6011
|
[2] |
BOLT ASS'Y M10X70
|
|
| 3. |
06.01924-3225
|
[2] |
BOLT ASS'Y M10X70
|
|
| 4. |
65.05902A0011
|
[1] |
GASKET;OIL COOLER COVER HOUSING
|
|
| 5. |
65.96601-0347
|
[1] |
GASKET;OIL COOLER ASS`Y
|
|
| 6. |
65.91605-0110
|
[1] |
COVER;BLIND
|
|
| 7. |
06.01913-3112
|
[4] |
BOLT ASS`Y M8X18
|
|
