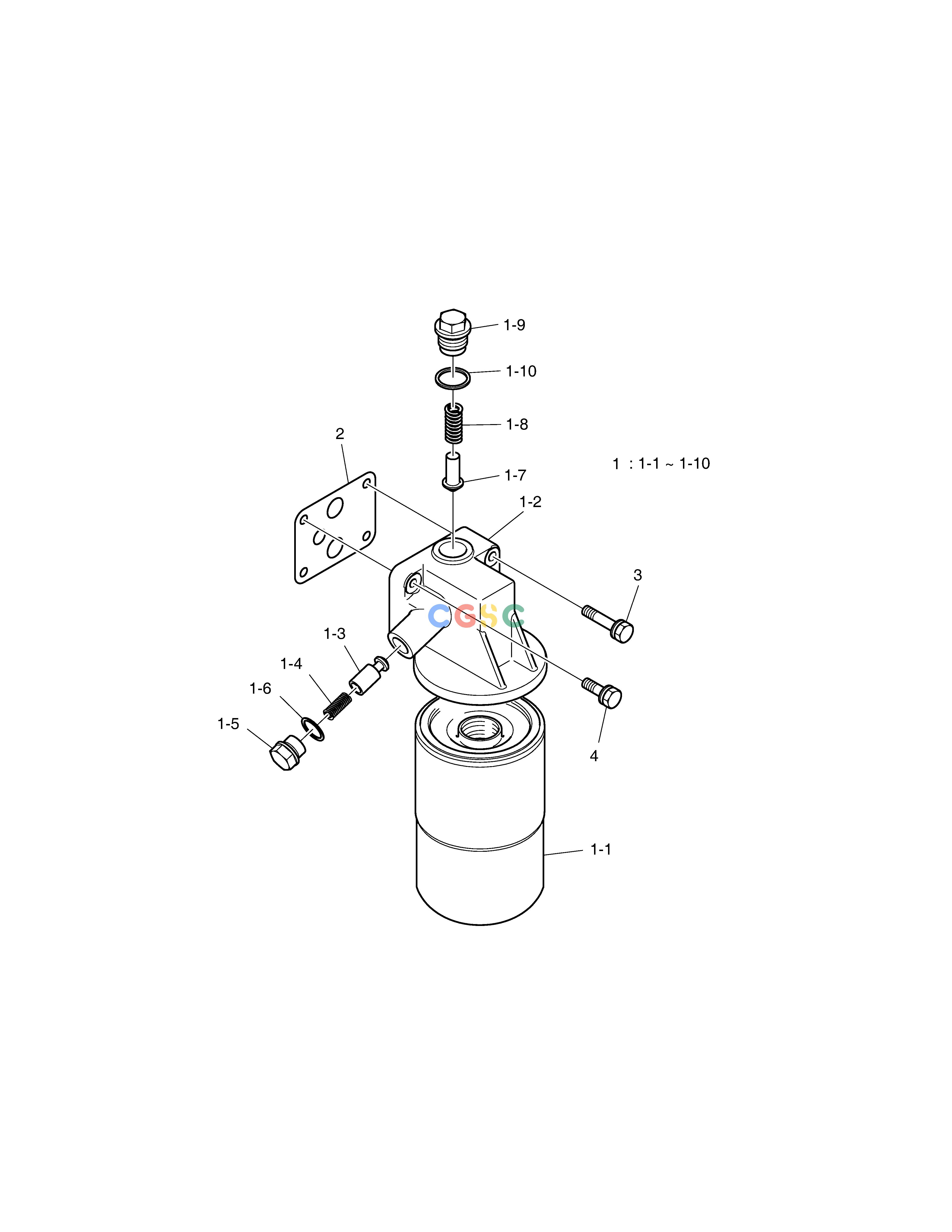

斗山零件查询OIL FILTER SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
130 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05501-7064B
|
[1] |
OIL FILTER ASS'Y
|
|
| 1-1. |
65.05510-5022B
|
[1] |
CARTRIDGE;OIL FILTER
|
|
| 1-10. |
06.56190-0726
|
[1] |
. SEAL;RING
|
|
| 1-2. |
65.05503-5042
|
[1] |
HEAD;FILTER
|
|
| 1-3. |
65.05518-0003
|
[1] |
VALVE;PLUNGER
|
|
| 1-4. |
65.97601-0065
|
[1] |
SPRING
|
|
| 1-5. |
65.90310-0057
|
[1] |
SCREW;PLUG
|
|
| 1-6. |
06.56190-0716
|
[1] |
RING;SEAL
|
|
| 1-7. |
65.05518-0006
|
[1] |
VALVE
|
|
| 1-8. |
65.97601-0075
|
[1] |
. SPRING
|
|
| 1-9. |
65.90310-0065
|
[1] |
SCREW;PLUG
|
|
| 2. |
65.05901A0052
|
[1] |
GASKET;OIL FILTER
|
|
| 3. |
06.01913-3122
|
[2] |
BOLT ASS`Y M8X55
|
|
| 4. |
06.01913-3118
|
[2] |
. BOLT ASS`Y M8X35
|
|
