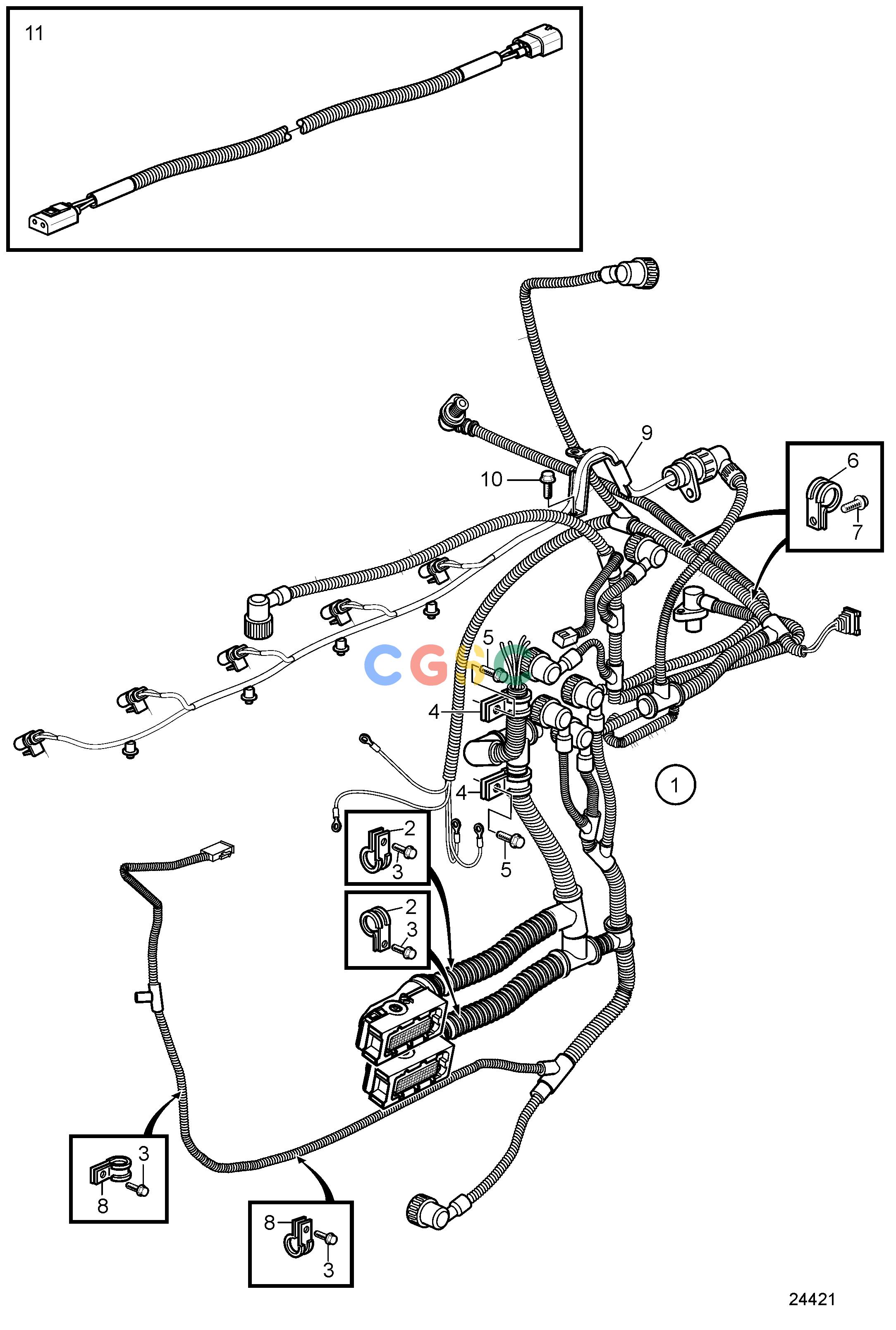

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Electrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
753 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3841862
|
[1] |
Wiring harness
|
12/24V SN-7009167424
|
| 1. |
21495942
|
[1] |
Wiring harness
|
12/24V SN7009167425-
|
| 2. |
949997
|
[2] |
Clamp
|
|
| 3. |
984733
|
[4] |
Flange screw
|
|
| 4. |
947827
|
[2] |
Clamp
|
|
| 5. |
984734
|
[2] |
Flange screw
|
|
| 6. |
952629
|
[2] |
Clamp
|
|
| 7. |
984725
|
[2] |
Flange screw
|
|
| 8. |
949746
|
[2] |
Clamp
|
|
| 9. |
20393627
|
[1] |
Bracket
|
|
| 10. |
984734
|
[1] |
Flange screw
|
|
| 11. |
3593799
|
[1] |
Extension cable
|
|
