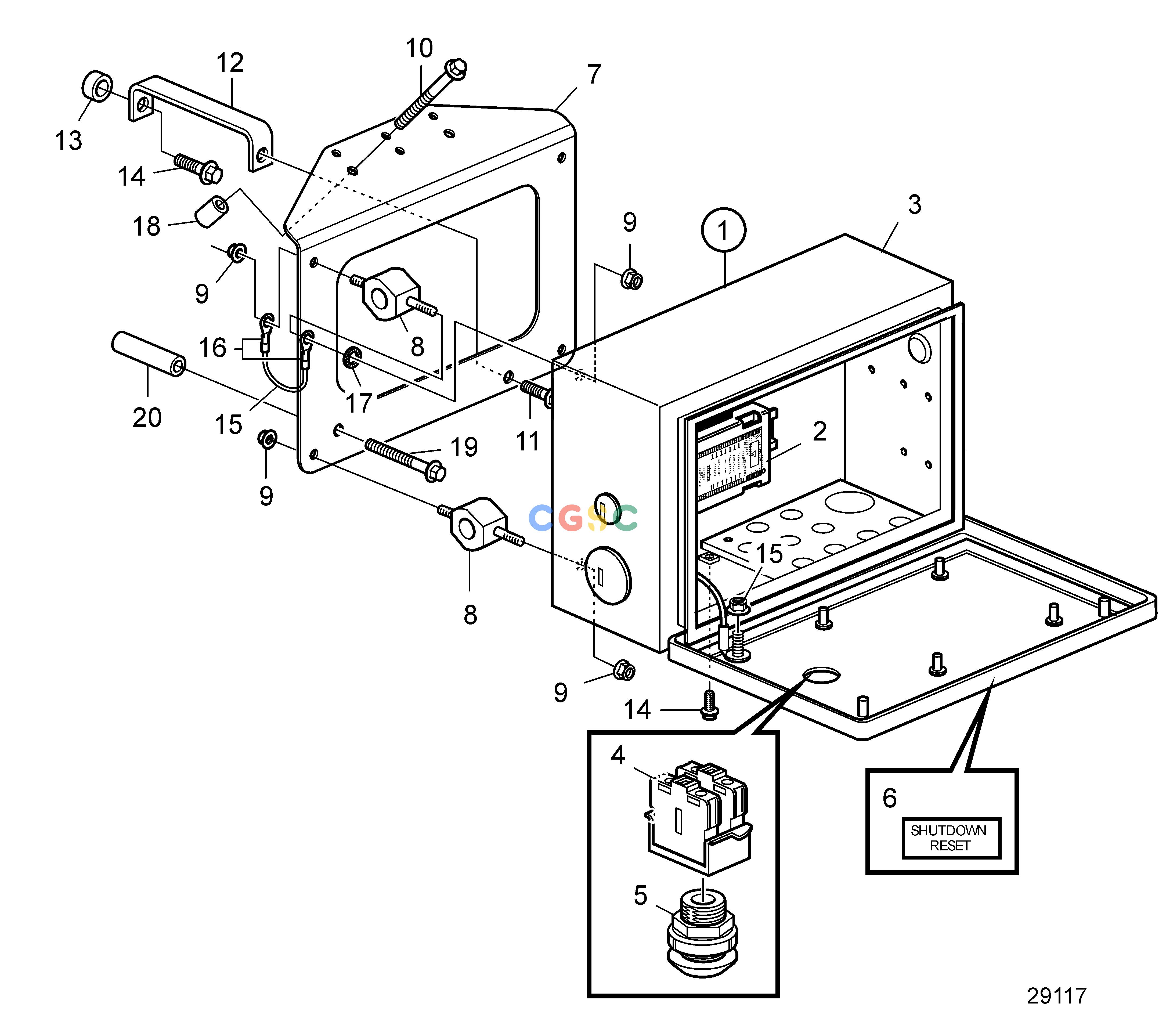

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Electrical SystemElectrical system. Shutdown unit, engine mountedEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
208 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21350815
|
[1] |
Box
|
Replaced by 22845532
|
| 1. |
22845532
|
[1] |
Box
|
|
| 2. |
22633376
|
[1] |
Electronic unit
|
|
| 3. |
21375487
|
[1] |
Box
|
|
| 4. |
3817575
|
[1] |
Contact unit
|
|
| 5. |
3817578
|
[1] |
Push button
|
|
| 6. |
3586456
|
[1] |
Label
|
|
| 7. |
22555525
|
[1] |
Bracket
|
|
| 8. |
3839156
|
[4] |
Rubber cushion
|
|
| 9. |
990939
|
[8] |
Flange nut
|
|
| 10. |
947422
|
[1] |
Hexagon screw
|
|
| 11. |
984735
|
[1] |
Flange screw
|
|
| 12. |
3819090
|
[1] |
Bracket
|
|
| 13. |
977412
|
[1] |
Spacer sleeve
|
|
| 14. |
990861
|
[1] |
Flange screw
|
|
| 15. |
970624
|
[1] |
Electric cable
|
L=100mm
|
| 16. |
881508
|
[2] |
Cable terminal
|
|
| 17. |
942605
|
[1] |
Toothed washer
|
|
| 18. |
973430
|
[1] |
Spacer sleeve
|
|
| 19. |
984742
|
[1] |
Flange screw
|
|
| 20. |
847690
|
[1] |
Spacer sleeve
|
|
