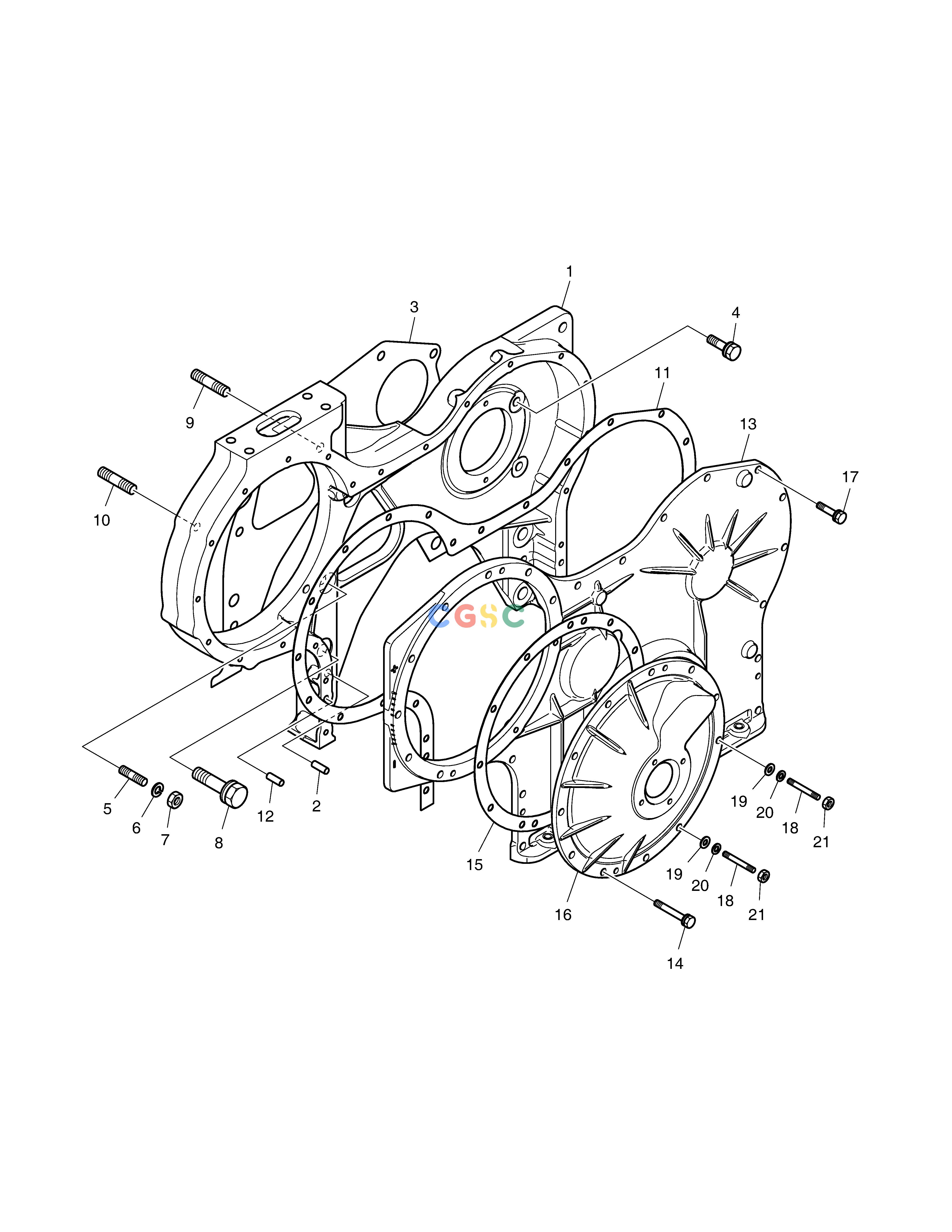

斗山零件查询TIMING GEAR CASE SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
285 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
130405-00007
|
[1] |
CASE;TIMING GEAR
|
|
| 10. |
06.06225-0809
|
[6] |
BOLT;STUD M10X35
|
|
| 11. |
65.01903B0113
|
[1] |
GASKET;T.G.C COVER
|
|
| 12. |
06.22022-0907
|
[2] |
. PIN;DOWEL
|
|
| 13. |
65.01305-5028C
|
[1] |
COVER;TIMING GEAR CASE
|
|
| 14. |
06.01923-2914
|
[13] |
BOLT ASS`Y M6X22
|
|
| 15. |
65.01903B0029
|
[1] |
GASKET;COVER
|
|
| 16. |
65.01307-5002
|
[1] |
COVER;TIMING GEAR CASE
|
|
| 17. |
06.01923-2918
|
[9] |
BOLT ASS`Y M6X35
|
|
| 18. |
65.90201-0146
|
[2] |
BOLT;STUD M6X16
|
|
| 18. |
120117-00140
|
[2] |
BOLT,STUD
|
|
| 19. |
06.15010-2309
|
[2] |
WASHER;PLAIN
|
|
| 2. |
65.91010-0018
|
[2] |
PIN;DOWEL
|
|
| 20. |
06.16731-2105
|
[2] |
. WASHER
|
|
| 21. |
06.11063-8212
|
[2] |
NUT
|
|
| 3. |
65.01903C0021
|
[1] |
GASKET;TIMING GEAR CASE
|
|
| 4. |
06.01913-3113
|
[5] |
.. BOLT ASS`Y M8X20
|
|
| 5. |
06.06225-0704
|
[1] |
BOLT;STUD M8X20
|
|
| 6. |
06.16731-2107
|
[1] |
WASHER
|
|
| 7. |
06.11063-8214
|
[1] |
. NUT
|
|
| 8. |
06.01943-3317
|
[4] |
BOLT ASS`Y M12X1.5X30
|
|
| 9. |
65.90201-0048
|
[1] |
BOLT;STUD
|
|
