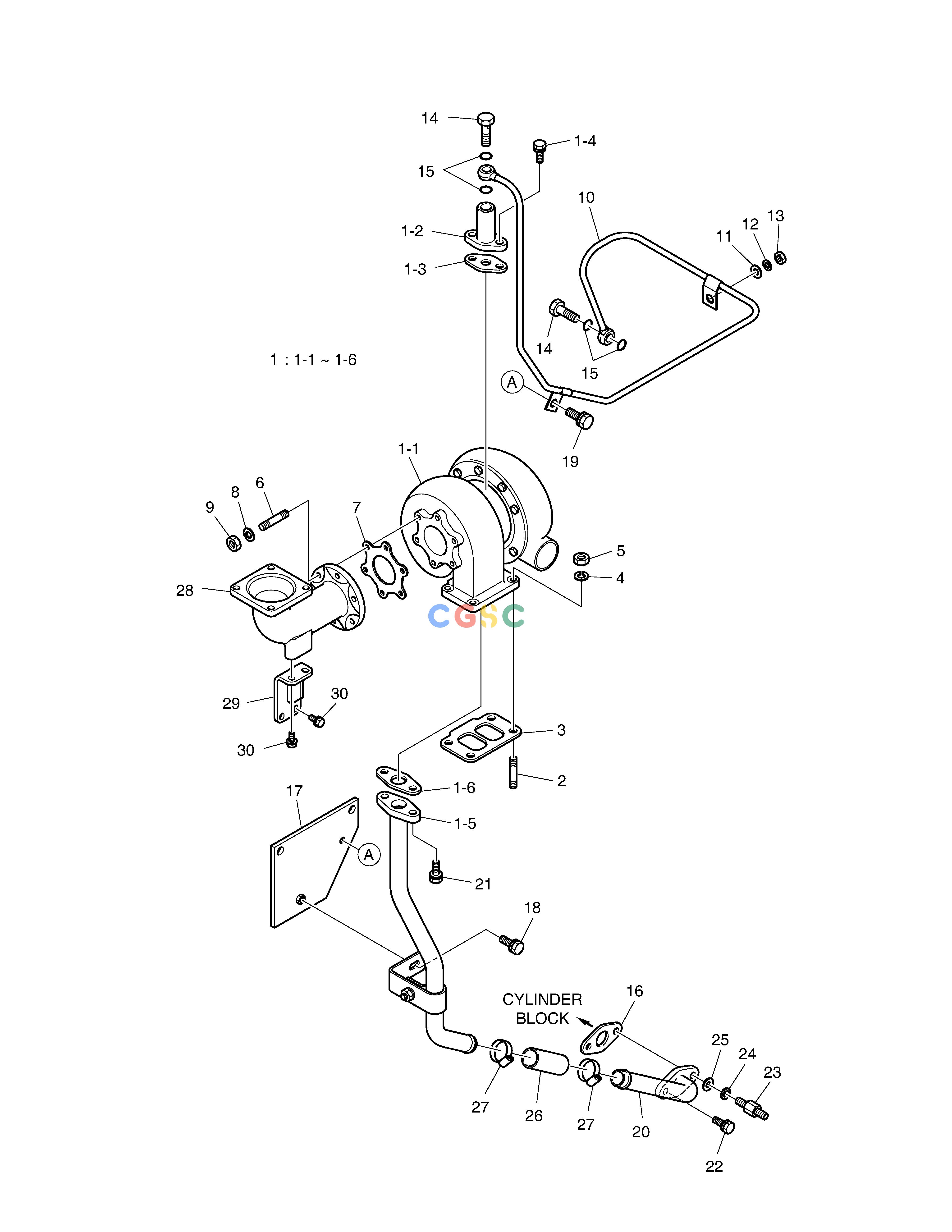

斗山零件查询TURBO CHARGER SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150105-00174
|
[1] |
CHARGER ASSY,TURBO
|
|
| 1-1. |
65.09100-7083
|
[1] |
. TURBOCHARGER ASS'Y
|
|
| 1-2. |
65.98131-5003
|
[1] |
ADAPTER FLANGE ASS`Y
|
|
| 1-3. |
65.96601-0046B
|
[1] |
GASKET;OIL PIPE ADAPTER
|
|
| 1-4. |
06.01913-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 1-5. |
65.05701-5481
|
[1] |
. OIL PIPE ASS'Y(T/C-C/B)
|
|
| 1-6. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 10. |
65.05701-5480A
|
[1] |
OIL PIPE ASS'Y(C/B-T/C)
|
|
| 11. |
06.15010-2311
|
[1] |
WASHER
|
|
| 12. |
06.16731-2107
|
[1] |
WASHER
|
|
| 13. |
06.11063-8214
|
[1] |
. NUT
|
|
| 14. |
06.78144-2403
|
[2] |
HOLLOW SCREW M12X1.5
|
|
| 15. |
06.56190-0704
|
[4] |
. RING;SEAL
|
|
| 16. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 17. |
65.05740-5005
|
[1] |
BRACKET;OIL PIPE
|
|
| 18. |
65.90020-0068
|
[1] |
BOLT ASS'Y M8X16
|
|
| 19. |
06.01923-3113
|
[1] |
BOLT ASS`Y M8X20
|
|
| 2. |
65.90201-0073
|
[4] |
. BOLT;STUD
|
|
| 20. |
65.05701-5336A
|
[1] |
OIL PIPE ASS`Y(T/C-C/B)
|
|
| 21. |
06.01913-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 22. |
06.01913-3113
|
[1] |
.. BOLT ASS`Y M8X20
|
|
| 23. |
65.90201-0075
|
[1] |
BOLT;SPACER
|
|
| 24. |
06.16731-2107
|
[1] |
WASHER
|
|
| 25. |
06.15010-2311
|
[1] |
WASHER
|
|
| 26. |
65.96301-0327A
|
[1] |
HOSE;RUBBER
|
|
| 27. |
06.67020-0104
|
[2] |
CLAMP;HOSE
|
|
| 28. |
430213-00099
|
[1] |
ELBOW,EXHAUST;DE08TIS
|
|
| 29. |
110443-00019
|
[1] |
BRACKET,EXHAUST ELBOW;DE08TIS
|
|
| 3. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 30. |
06.01923-3215
|
[4] |
BOLT ASS`Y M10X25
|
|
| 4. |
06.16731-2108
|
[4] |
WASHER;SPRING
|
|
| 5. |
06.11024-9202
|
[4] |
NUT M10X1.25
|
|
| 6. |
65.90201-0181
|
[6] |
BOLT;STUD
|
|
| 7. |
65.09901-0012
|
[1] |
GASKET
|
|
| 8. |
06.16731-2108
|
[6] |
WASHER;SPRING
|
|
| 9. |
06.11063-8215
|
[6] |
NUT;HEX. M10
|
|
