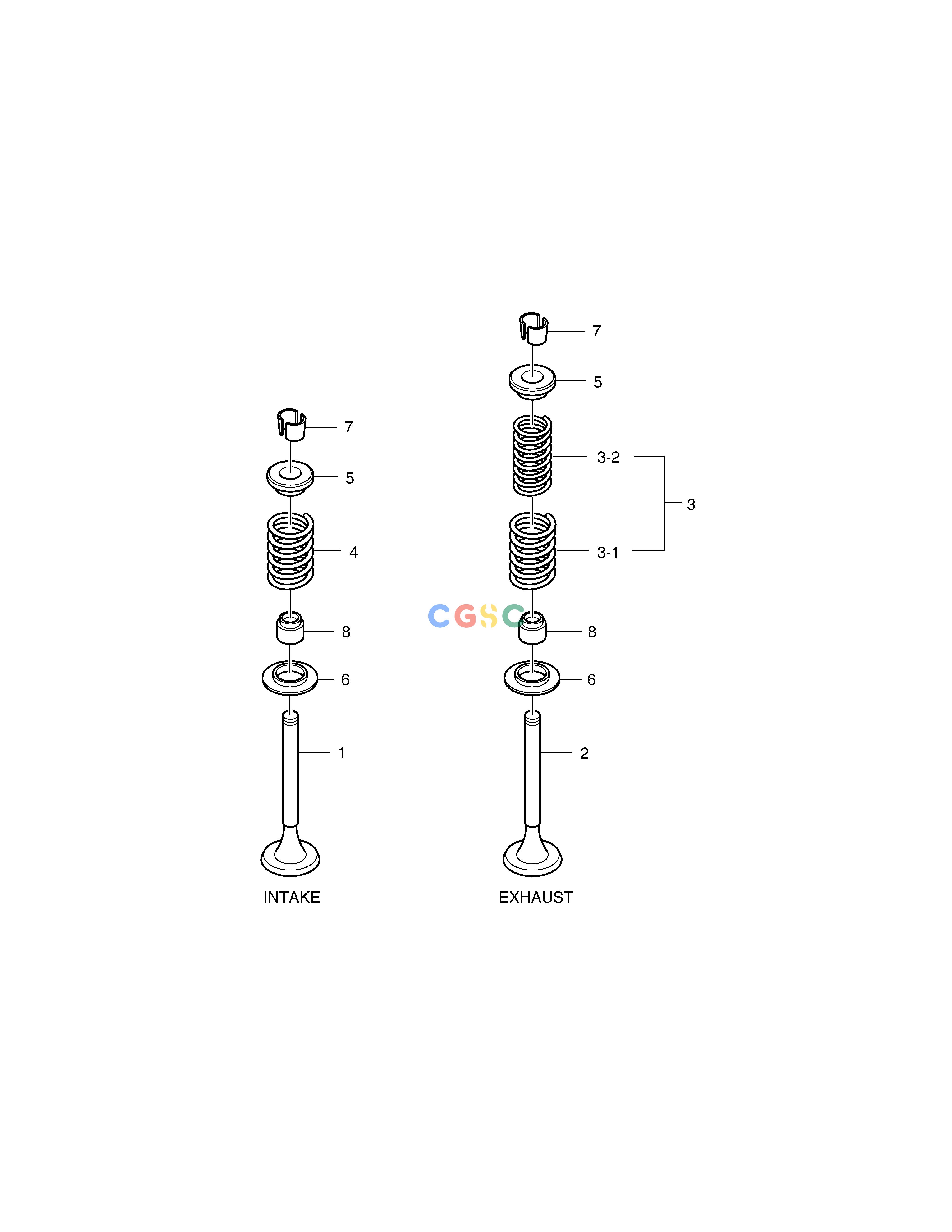

斗山零件查询VALVE SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.04101-0026
|
[6] |
VALVE;INTAKE
|
|
| 2. |
65.04101-0027
|
[6] |
VALVE;EXHAUST
|
|
| 3. |
65.04102-6002
|
[6] |
SPRING;VALVE(EXHAUST)
|
|
| 3-1. |
65.04102-0003
|
[1] |
SPRING;VALVE(EXHAUST OUTER)
|
|
| 3-2. |
65.04102-0004
|
[1] |
SPRING;VALVE(EXHAUST INNER)
|
|
| 4. |
65.04102-0007
|
[6] |
SPRING;VALVE(INTAKE)
|
|
| 5. |
65.04103-0013
|
[12] |
RETAINER;VALVE SPRING
|
|
| 6. |
65.04103-0009
|
[12] |
SEAT;VALVE SPRING
|
|
| 7. |
65.04104-0006
|
[24] |
COTTER;VALVE
|
|
| 8. |
65.04902-0013
|
[12] |
SEAL;VALVE STEAM
|
|
