斗山零件查询WATER PUMP SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
840 次

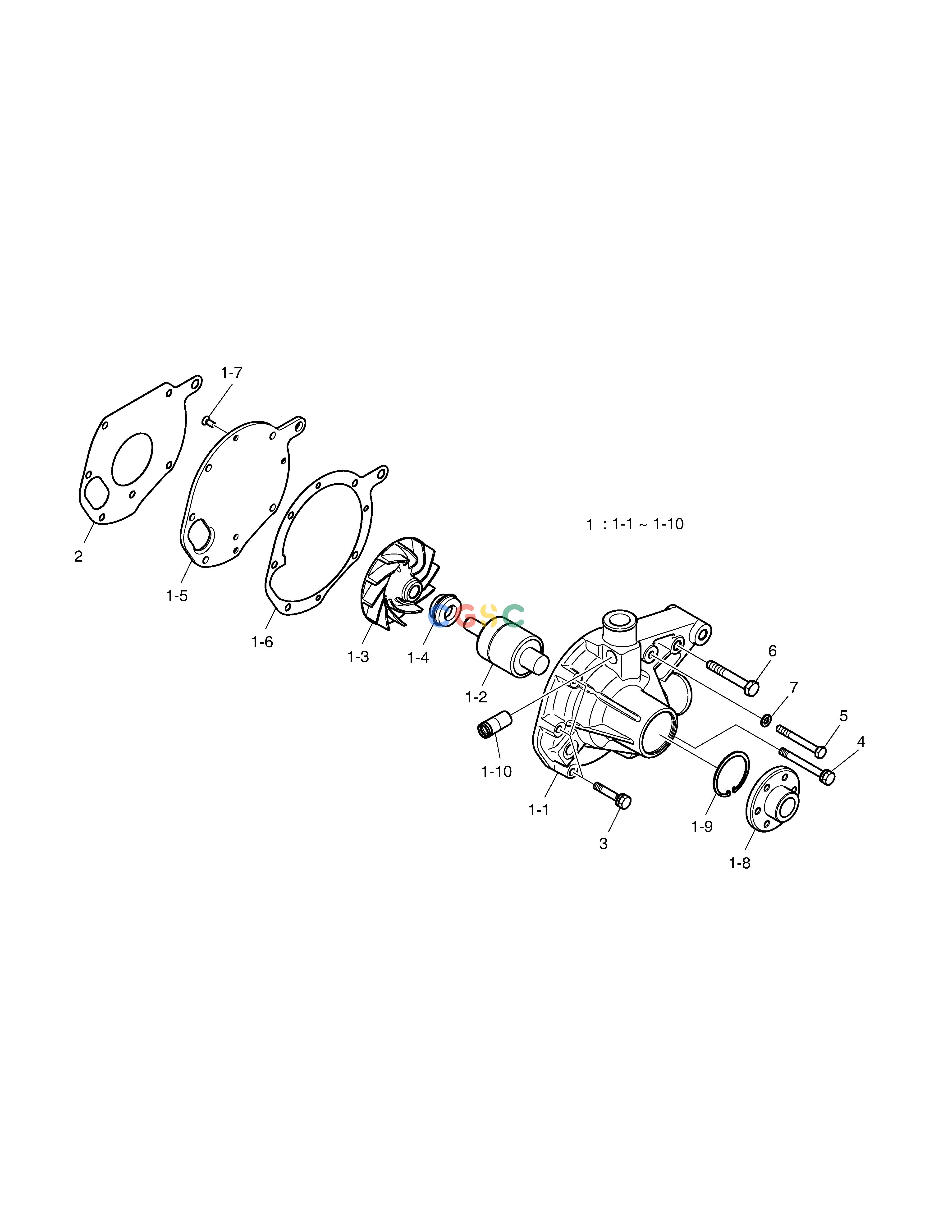

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400921-00098
|
[1] |
PUMP ASSY,WATER
|
|
| 1-1. |
65.06501-0221C
|
[1] |
. HOUSING,WATER PUMP
|
|
| 1-10. |
65.98131-0038
|
[1] |
. PIPE;FOR WATER PUMP
|
|
| 1-2. |
65.93410-0087
|
[1] |
. BEARING
|
|
| 1-3. |
65.06506-0023
|
[1] |
IMPELLAR
|
|
| 1-4. |
65.06520-6008
|
[1] |
. SEAL;MECHANICAL
|
|
| 1-5. |
65.06512-0010
|
[1] |
COVER;WATER PUMP
|
|
| 1-6. |
65.06901-0019B
|
[1] |
. GASKET,WATER PUMP;FOR WATER PUMP
|
|
| 1-7. |
06.04201-8907
|
[3] |
BOLT;SLOTTED HEAD M6X14
|
|
| 1-8. |
65.06504-0030A
|
[1] |
HUB
|
|
| 1-9. |
06.29020-0132
|
[1] |
. SNAP RING
|
|
| 2. |
65.06901A0020
|
[1] |
GASKET;WATER PUMP
|
|
| 3. |
06.01913-3121
|
[3] |
BOLT ASS`Y M8X50
|
|
| 4. |
06.01913-3125
|
[1] |
BOLT ASS`Y M8X70
|
|
| 5. |
06.01013-9121
|
[1] |
BOLT ASS`Y M8X80
|
|
| 6. |
06.01914-3225
|
[1] |
BOLT;HEX. M10X70
|
|
| 7. |
06.16731-2107
|
[1] |
WASHER
|
|
