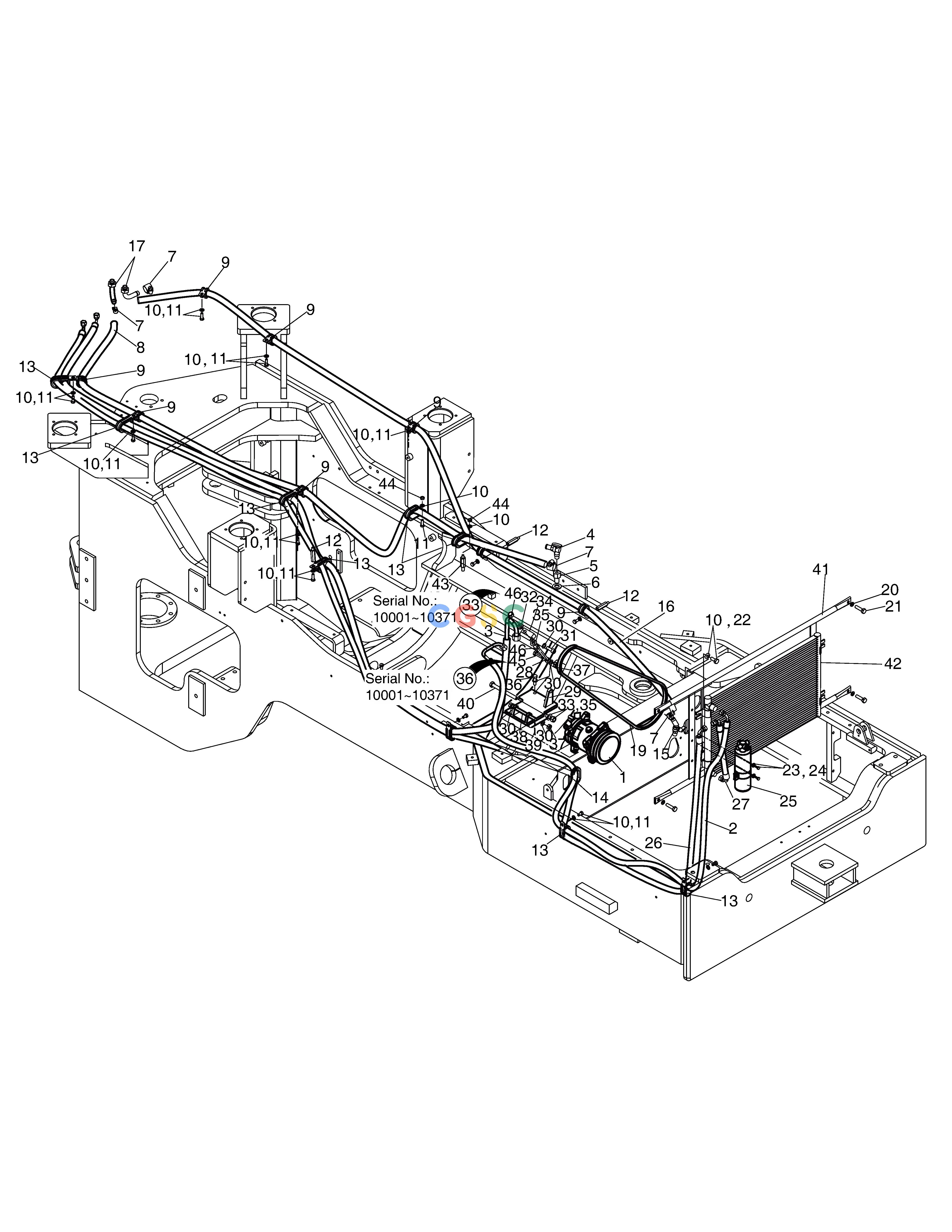

斗山零件查询AIR - CONDITIONER ASS'Y - BODY SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
575 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300301-00032
|
[-] |
|
|
| 1. |
400102-00239
|
[1] |
COMPRESSOR;AIR CON
|
|
| 10. |
S5010513
|
[18] |
WASHER
|
|
| 11. |
S0508653
|
[14] |
BOLT
|
|
| 12. |
2120-2187
|
[1] |
BOLT
|
|
| 13. |
124-00209D7
|
[7] |
CLIP
|
|
| 14. |
131009-00028
|
[1] |
|
|
| 15. |
301412-00253
|
[1] |
SWITCH
|
|
| 16. |
420104-00004
|
[1] |
|
|
| 17. |
K1041134A
|
[2] |
JOINT
|
|
| 19. |
130202-00041A
|
[1] |
|
|
| 2. |
420102-00270A
|
[1] |
HOSE,AIR CONDITIONER
|
420102-00270B
|
| 2. |
420102-00270B
|
[1] |
HOSE,AIR CONDITIONER
|
|
| 20. |
DS0401063
|
[4] |
WASHER,PLAIN
|
|
| 21. |
S0512063
|
[4] |
WASHER
|
|
| 22. |
S0556163
|
[4] |
BOLT
|
|
| 23. |
S0504653
|
[2] |
. BOLT
|
|
| 24. |
S5010313
|
[2] |
WASHER
|
|
| 25. |
101570-00031
|
[1] |
RECEIVER;DRIER
|
|
| 26. |
420102-00272A
|
[1] |
|
|
| 27. |
420102-00271A
|
[1] |
|
|
| 28. |
120112-00725
|
[1] |
BOLT,ADJUST
|
|
| 28. |
120112-01876
|
[1] |
BOLT,ADJUST
|
|
| 29. |
110402-00043A
|
[1] |
BRACKET,COMPRESSOR;WC ENGINE
|
|
| 29. |
110402-00043B
|
[1] |
BRACKET,COMPRESSOR;WC ENGINE
|
|
| 3. |
420102-00273B
|
[1] |
HOSE,AIR CONDITIONER
|
|
| 3. |
420102-00273A
|
[1] |
HOSE,AIR CONDITIONER
|
420102-00273B
|
| 30. |
S5010613
|
[6] |
WASHER
|
|
| 31. |
S2212266
|
[1] |
BOLT
|
|
| 32. |
S5102703
|
[1] |
WASHER
|
|
| 32. |
S5102803
|
[1] |
WASHER
|
|
| 33. |
S4012733
|
[3] |
NUT
|
|
| 33. |
S4012733
|
[1] |
NUT
|
|
| 34. |
100101-00025A
|
[1] |
ADJUSTER
|
|
| 34. |
100101-00337
|
[1] |
ADJUSTER;BELT
|
|
| 35. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 36. |
S0512363
|
[3] |
BOLT
|
|
| 37. |
S4012633
|
[2] |
NUT
|
|
| 38. |
120106-00315
|
[1] |
|
|
| 39. |
S5735371
|
[1] |
PIN;SPLIT
|
|
| 4. |
K1040977A
|
[1] |
VALVE;SWITCH
|
|
| 40. |
S0562353
|
[1] |
BOLT M12X1.75X130
|
|
| 41. |
110432-00013A
|
[1] |
BRACKET,CONDENSER
|
|
| 41. |
110432-00013B
|
[1] |
BRACKET,CONDENSER
|
|
| 42. |
440204-00018
|
[1] |
CONDENSER ASSY
|
|
| 42. |
440204-00018A
|
[1] |
CONDENSER ASSY
|
440204-00018B
|
| 42. |
440204-00018B
|
[1] |
CONDENSER ASSY;SD310
|
|
| 43. |
2120-2159
|
[1] |
BOLT
|
|
| 44. |
S4012533
|
[1] |
NUT
|
|
| 45. |
S0558453
|
[1] |
BOLT
|
|
| 46. |
S4012833
|
[3] |
NUT
|
|
| 5. |
430201-00549A
|
[1] |
|
|
| 6. |
120810-00150
|
[1] |
|
|
| 7. |
S8450016
|
[4] |
. CLAMP
|
|
| 8. |
420102-00400
|
[1] |
HOSE,AIR CONDITIONER
|
|
| 9. |
124-00208D4
|
[10] |
CLIP
|
|
