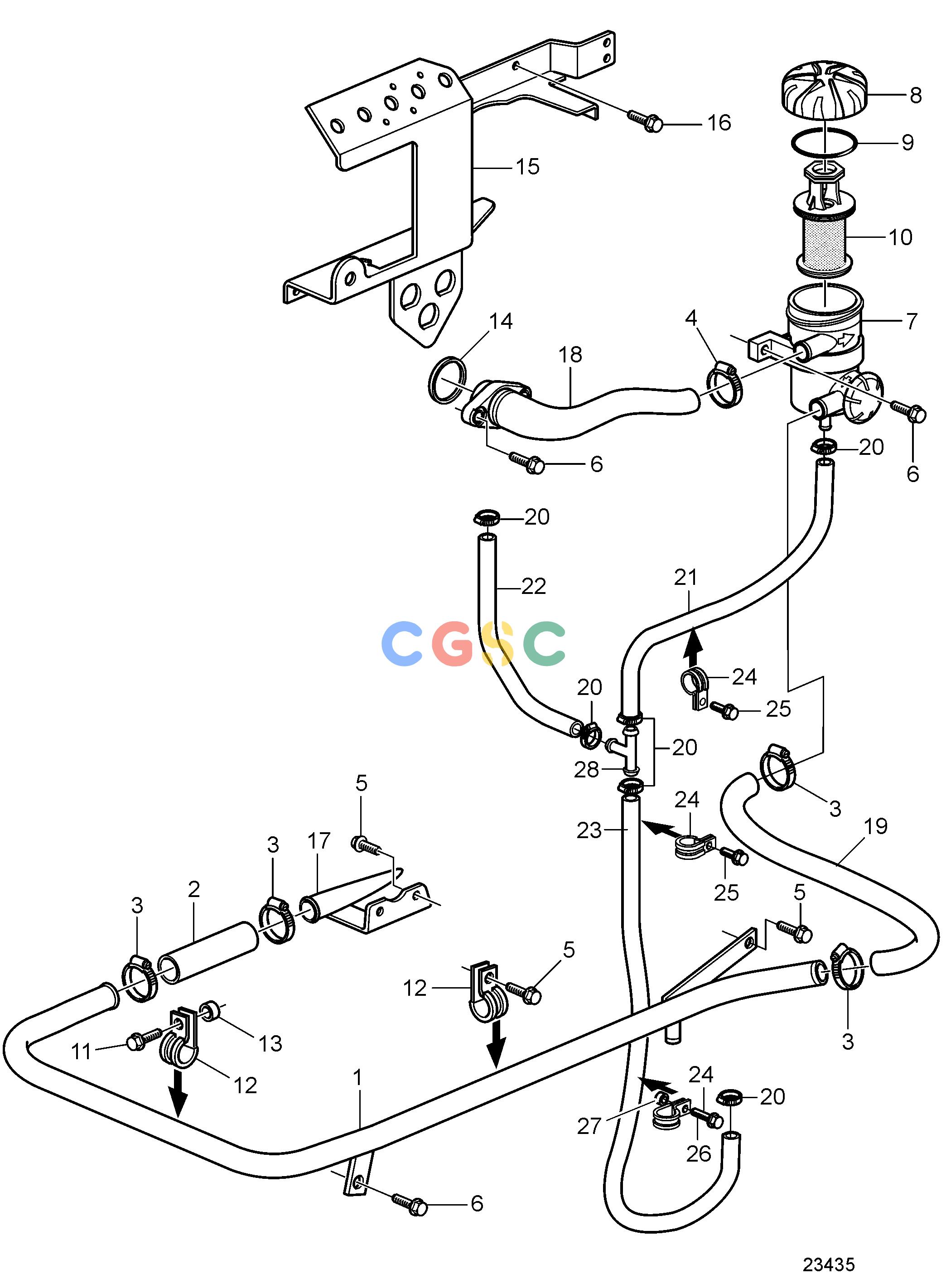

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Intake and Exhaust SystemCrankcase VentilationEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
282 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3589492
|
[1] |
Crankcase ventilatio
|
|
| 2. |
973972
|
[1] |
Hose
|
L=100mm
|
| 3. |
994560
|
[4] |
Hose clamp
|
|
| 4. |
994559
|
[1] |
Hose clamp
|
|
| 5. |
984733
|
[3] |
Flange screw
|
|
| 6. |
984735
|
[5] |
Flange screw
|
|
| 7. |
3812235
|
[1] |
Filter housing
|
|
| 8. |
3812233
|
[1] |
Cap
|
|
| 9. |
3584461
|
[1] |
O-ring
|
|
| 10. |
3584145
|
[1] |
Insert
|
|
| 11. |
984753
|
[1] |
Flange screw
|
|
| 12. |
947827
|
[2] |
Clamp
|
|
| 13. |
977412
|
[1] |
Spacer sleeve
|
|
| 14. |
20555696
|
[1] |
Sealing ring
|
(421629)
|
| 15. |
7746900_127
|
|
Bracket
|
|
| 16. |
984735
|
[1] |
Flange screw
|
|
| 17. |
3589484
|
[1] |
Pipe
|
|
| 18. |
3839380
|
[1] |
Pipe
|
|
| 19. |
888573
|
[1] |
Hose
|
|
| 20. |
943471
|
[6] |
Hose clamp
|
|
| 21. |
943707
|
[1] |
Hose
|
L=440mm
|
| 22. |
943707
|
[1] |
Hose
|
L=280mm
|
| 23. |
943707
|
[1] |
Hose
|
L=600mm
|
| 24. |
1545432
|
[3] |
Attaching clamp
|
|
| 25. |
984733
|
[2] |
Flange screw
|
|
| 26. |
984735
|
[1] |
Flange screw
|
|
| 27. |
948871
|
[1] |
Spacer washer
|
|
| 28. |
984445
|
[1] |
T-nipple
|
|
