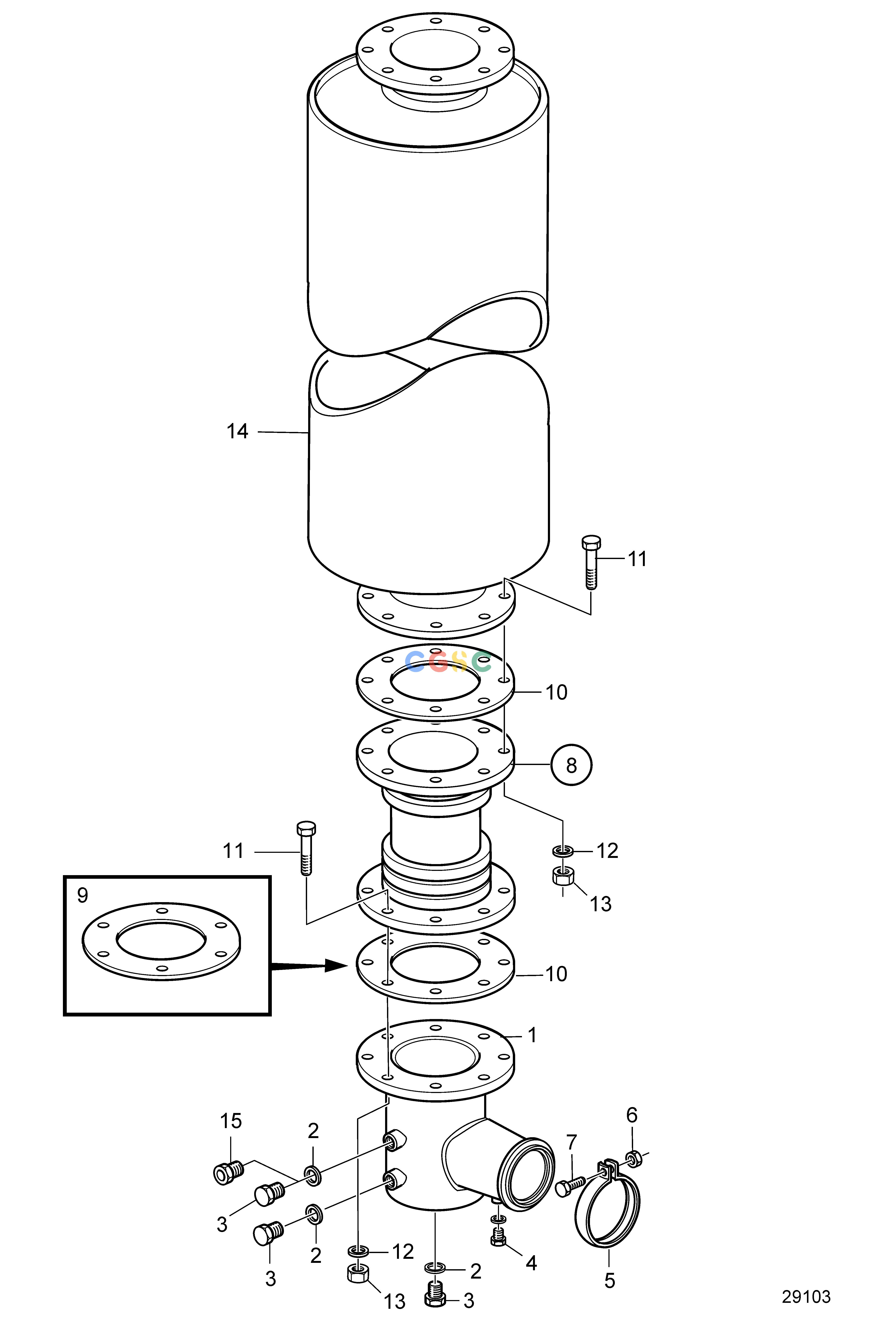

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Intake and Exhaust SystemDry Exhaust Line 7'' (175mm) Later ProductionEPC Volvo Penta Parts cat
广数供应链运营团队, 15 02月, 2025，浏览：
797 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3818119
|
[1] |
Exhaust pipe elbow
|
|
| 2. |
947626
|
[3] |
Gasket
|
|
| 3. |
914392
|
[3] |
Plug
|
|
| 4. |
479979
|
[1] |
Plug
|
|
| 5. |
1556930
|
[1] |
Clamp
|
|
| 6. |
990950
|
[1] |
Flange lock nut
|
|
| 7. |
973924
|
[1] |
Flange screw
|
|
| 8. |
865300
|
[1] |
Compensator
|
|
| 9. |
849981
|
[1] |
Flange
|
|
| 10. |
862950
|
[1] |
Gasket
|
|
| 11. |
955366
|
[16] |
Hexagon screw
|
|
| 12. |
941912
|
[16] |
Spring washer
|
|
| 13. |
955785
|
[16] |
Hexagon nut
|
|
| 14. |
849832
|
[1] |
Silencer
|
|
| 14. |
3830517
|
[1] |
Silencer
|
With spark arrestor.
|
| 14. |
3886131
|
[1] |
Silencer
|
35 dBA
|
| 14. |
3886134
|
[1] |
Silencer
|
35 dBA, With spark arrestor
|
| 15. |
21589402
|
[1] |
Adapter
|
Use with temperature sensor
|
