沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Intake and Exhaust SystemIntake and Exhaust Manifold SN-1009195486EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
768 次

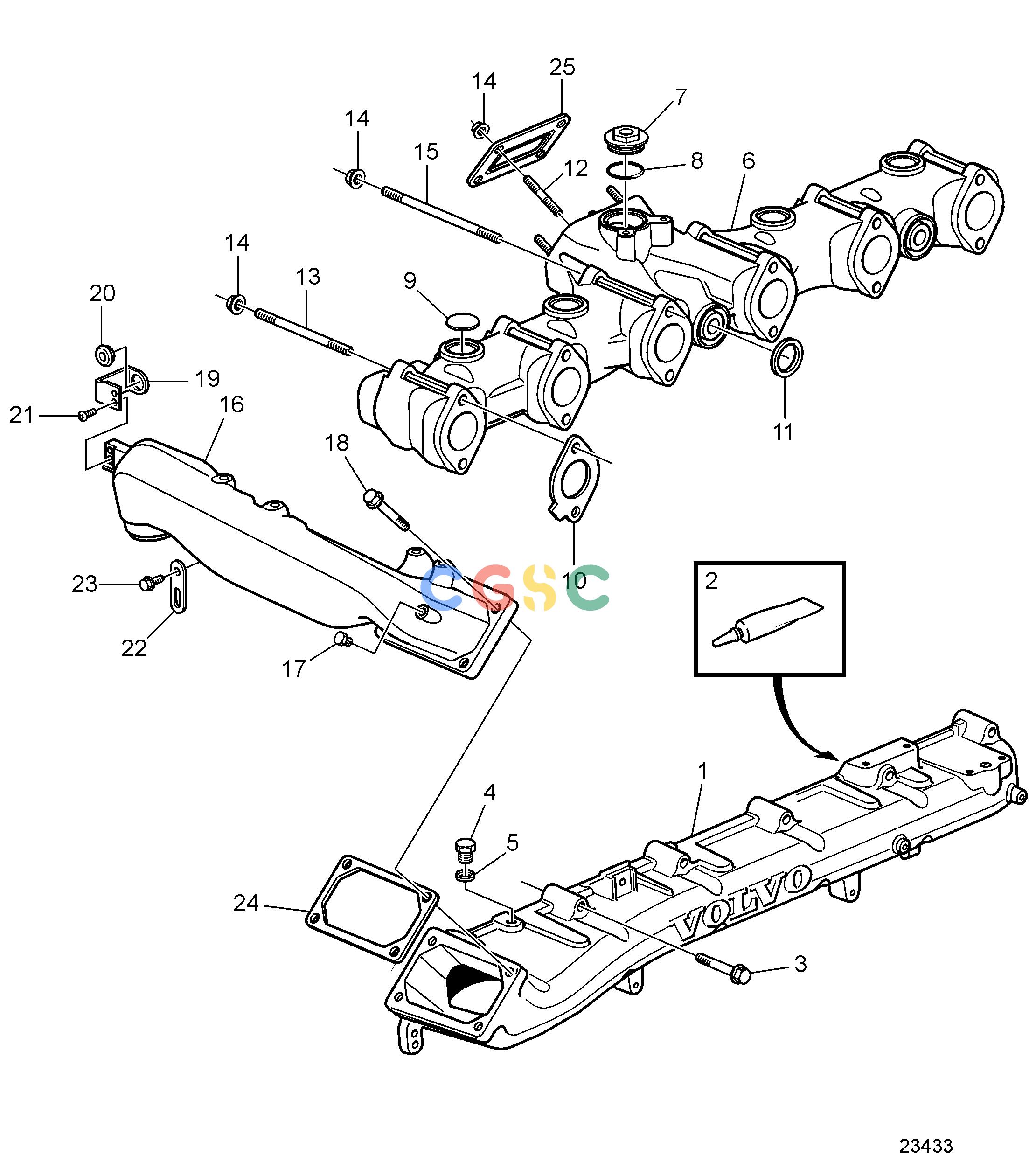

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3161342
|
[1] |
Inlet manifold
|
Earlier production
|
| 1. |
20708331
|
[1] |
Inlet manifold
|
Later production, Replaced by 21393038
|
| 1. |
21393038
|
[1] |
Inlet manifold
|
|
| 2. |
1161231
|
[1] |
Sealant
|
304ml
|
| 2. |
1161277
|
[1] |
Sealant
|
20g
|
| 3. |
984740
|
[12] |
Flange screw
|
For 20708331
|
| 3. |
996457
|
[12] |
Flange screw
|
For 21393038
|
| 4. |
960628
|
[1] |
Plug
|
|
| 5. |
947281
|
[1] |
Gasket
|
|
| 6. |
3838255
|
[1] |
Exhaust manifold
|
|
| 7. |
3807018
|
[1] |
Plug
|
|
| 8. |
469328
|
[1] |
Gasket
|
|
| 9. |
968955
|
[13] |
Expansion plug
|
|
| 10. |
8148172
|
[6] |
Plane gasket
|
|
| 11. |
469982
|
[2] |
Sealing ring
|
|
| 12. |
20579303
|
[4] |
Stud
|
(977299)
|
| 13. |
953007
|
[8] |
Stud
|
|
| 14. |
471622
|
[16] |
Flange lock nut
|
|
| 15. |
948932
|
[4] |
Stud
|
|
| 16. |
3588494
|
[1] |
Charge air pipe
|
|
| 17. |
960628
|
[1] |
Plug
|
|
| 18. |
984738
|
[4] |
Flange screw
|
|
| 19. |
3818093
|
[1] |
Bracket
|
|
| 20. |
673989
|
[1] |
Grommet
|
|
| 21. |
940326
|
[2] |
Hex. socket screw
|
|
| 22. |
965534
|
[1] |
Bracket
|
|
| 23. |
984733
|
[2] |
Flange screw
|
|
| 24. |
477314
|
[1] |
Gasket
|
Replaced by 3979639
|
| 24. |
3979639
|
[1] |
Plane gasket
|
|
| 25. |
20781146
|
[1] |
Gasket
|
(8194365)
|
