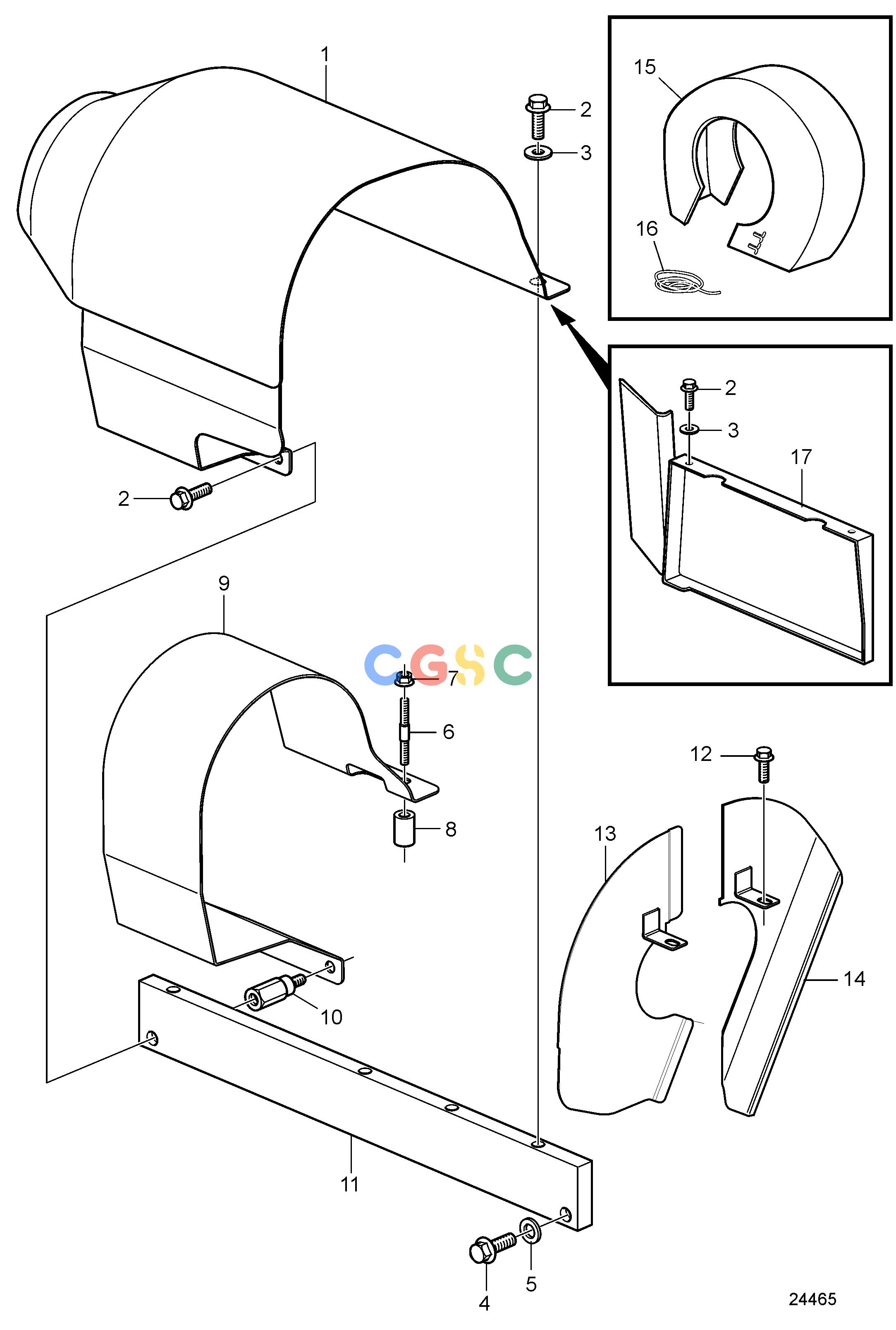

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Intake and Exhaust SystemHeat Shield for TurboEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
742 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3841925
|
[1] |
Heat shield
|
|
| 2. |
984735
|
[6] |
Flange screw
|
|
| 3. |
976944
|
[6] |
Washer
|
|
| 4. |
969445
|
[2] |
Flange screw
|
|
| 5. |
941909
|
[2] |
Spring washer
|
|
| 6. |
953049
|
[2] |
Stud
|
|
| 7. |
990940
|
[2] |
Flange nut
|
|
| 8. |
807425
|
[2] |
Spacer sleeve
|
|
| 9. |
3818865
|
[1] |
Brace
|
Use with isolation for turbo.
|
| 10. |
3843941
|
[2] |
Spacer screw
|
|
| 11. |
3818407
|
[1] |
Bracket
|
|
| 12. |
984733
|
[2] |
Flange screw
|
|
| 13. |
3817179
|
[1] |
Heat shield
|
|
| 14. |
3836013
|
[1] |
Heat shield kit
|
|
| 15. |
3819499
|
[1] |
Heat insulation, turbo
|
|
| 16. |
941710
|
[1] |
Locking wire
|
L=400mm
|
| 17. |
3587999
|
[1] |
Heat shield
|
For dry exhaust.
|
