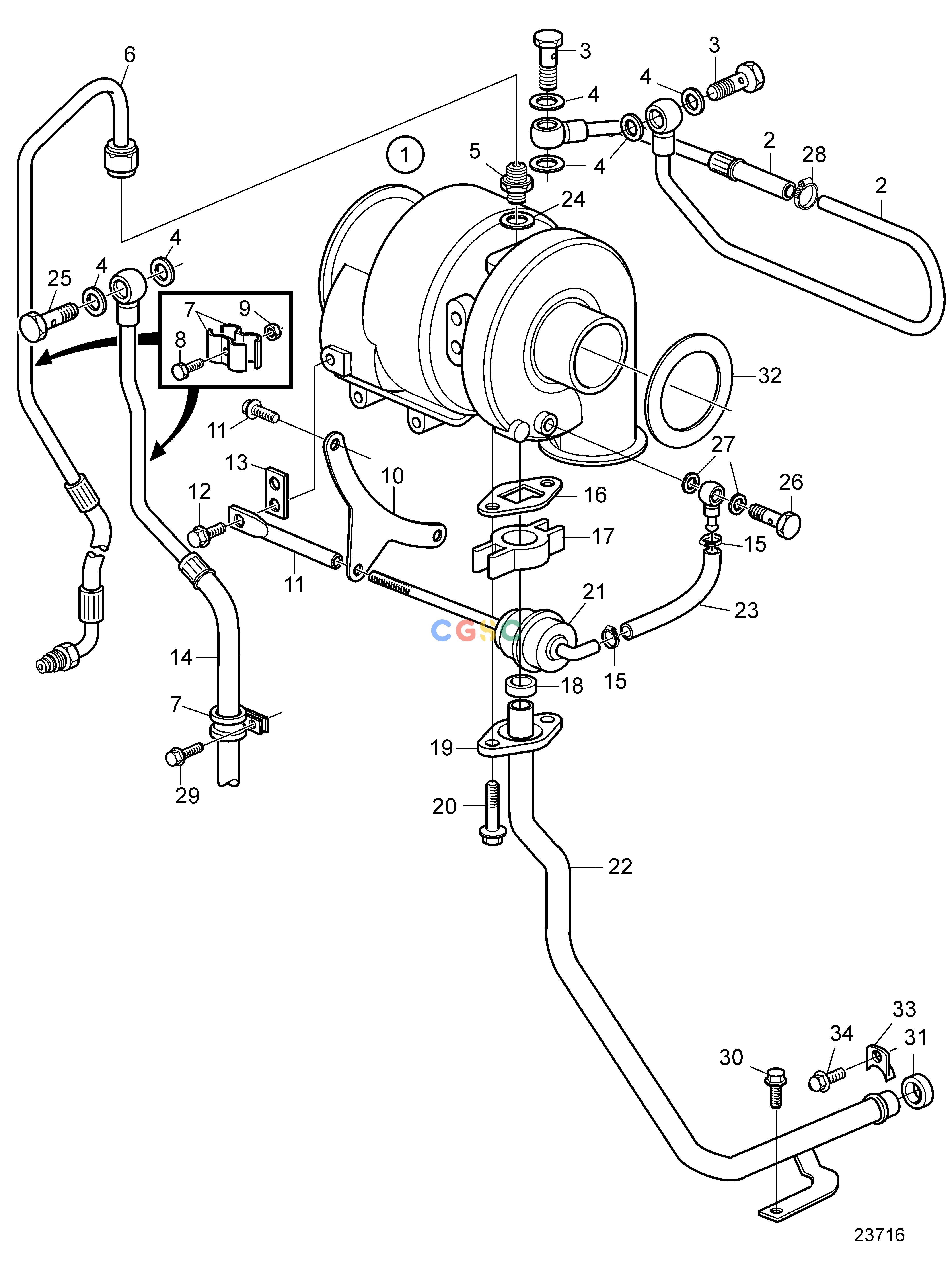

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Intake and Exhaust SystemTurbochargerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
843 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801114
|
[1] |
Turbocharger
|
Rating 4-5
|
| 1. |
|
|
|
|
| 2. |
3818130
|
[1] |
Cooling hose
|
|
| 2. |
3849360
|
[1] |
Coolant pipe
|
With deaering connection hole, SN151881-
|
| 3. |
941686
|
[2] |
Hollow screw
|
|
| 4. |
11996
|
[6] |
Gasket
|
|
| 5. |
963948
|
[1] |
Nipple
|
|
| 6. |
3883439
|
[1] |
Oil line
|
|
| 7. |
404279
|
[2] |
Clamp
|
|
| 8. |
969408
|
[2] |
Six point socket scr
|
|
| 9. |
949874
|
[1] |
Flange lock nut
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
3819992
|
[1] |
Cooling hose
|
|
| 15. |
949747
|
[2] |
Clamp
|
|
| 16. |
420643
|
[1] |
Plane gasket
|
|
| 17. |
8148729
|
[1] |
Connector
|
|
| 18. |
469601
|
[1] |
Rubber moulding
|
|
| 19. |
469543
|
[1] |
Pipe flange
|
|
| 20. |
984738
|
[2] |
Flange screw
|
|
| 21. |
|
|
|
Wastegate included in complete turbo
|
| 22. |
3819054
|
[1] |
Oil line
|
|
| 23. |
|
|
|
|
| 24. |
948883
|
[1] |
Gasket
|
|
| 25. |
941686
|
[1] |
Hollow screw
|
|
| 26. |
|
|
|
|
| 27. |
|
|
|
|
| 28. |
994556
|
[1] |
Hose clamp
|
|
| 29. |
984734
|
[1] |
Flange screw
|
|
| 30. |
984733
|
[1] |
Flange screw
|
|
| 31. |
1547255
|
[1] |
Sealing ring
|
|
| 32. |
3884954
|
[1] |
Restricting washer
|
|
| 33. |
20565843
|
[1] |
Lock brace
|
|
| 34. |
984733
|
[1] |
Flange screw
|
|
