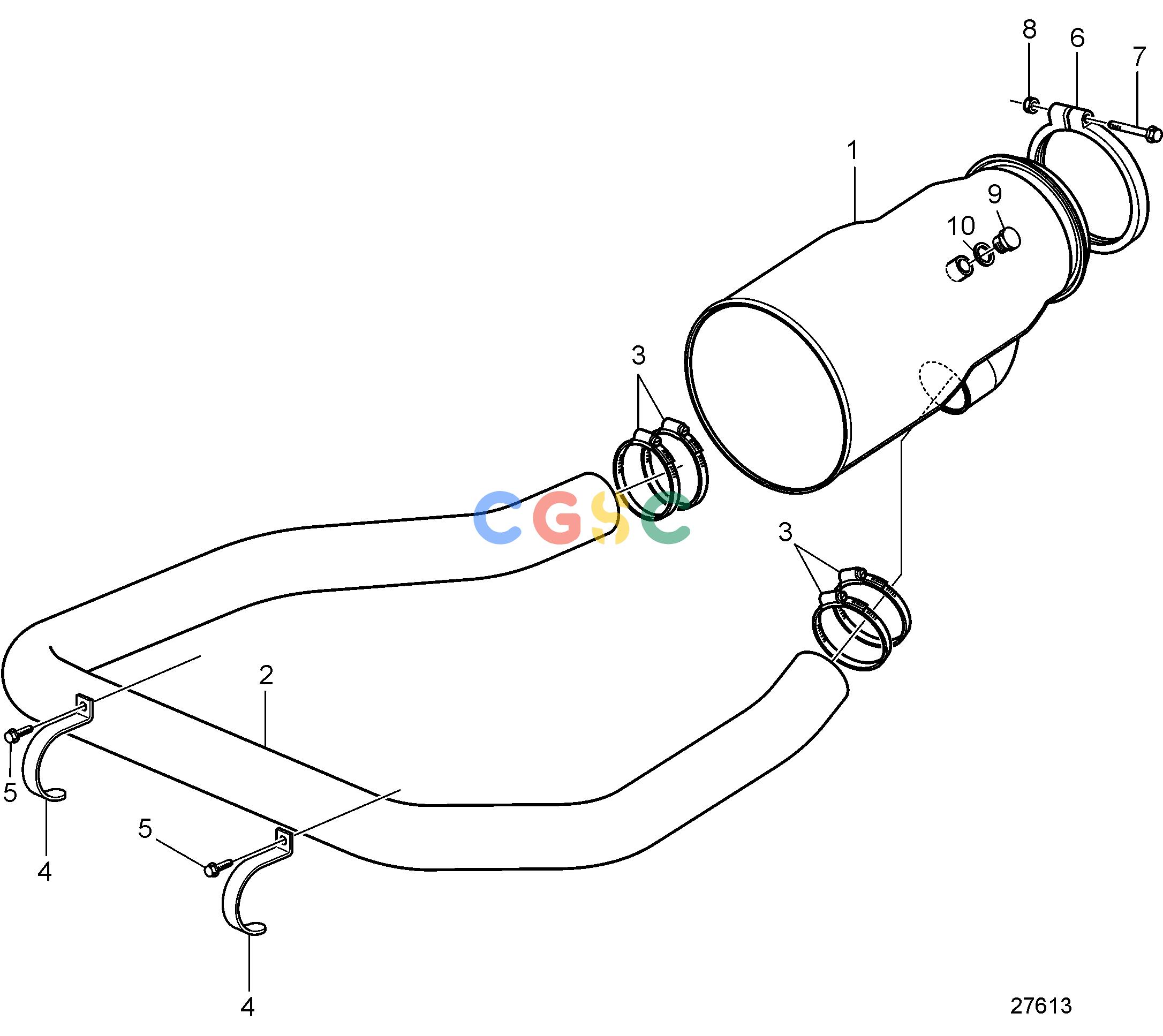

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Intake and Exhaust SystemWet Exhaust Pipe ElbowEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
594 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22066708
|
[1] |
Exhaust pipe
|
|
| 2. |
3817427
|
[1] |
Hose
|
D9
|
| 2. |
23023445
|
[1] |
Hose
|
D11
|
| 3. |
961672
|
[4] |
Hose clamp
|
|
| 4. |
948560
|
[2] |
Clamp
|
|
| 5. |
984725
|
[2] |
Flange screw
|
|
| 6. |
1556930
|
[1] |
Clamp
|
|
| 7. |
973924
|
[1] |
Flange screw
|
|
| 8. |
990950
|
[1] |
Flange lock nut
|
|
| 9. |
945065
|
[2] |
Plug
|
|
| 10. |
969011
|
[2] |
Gasket
|
|
