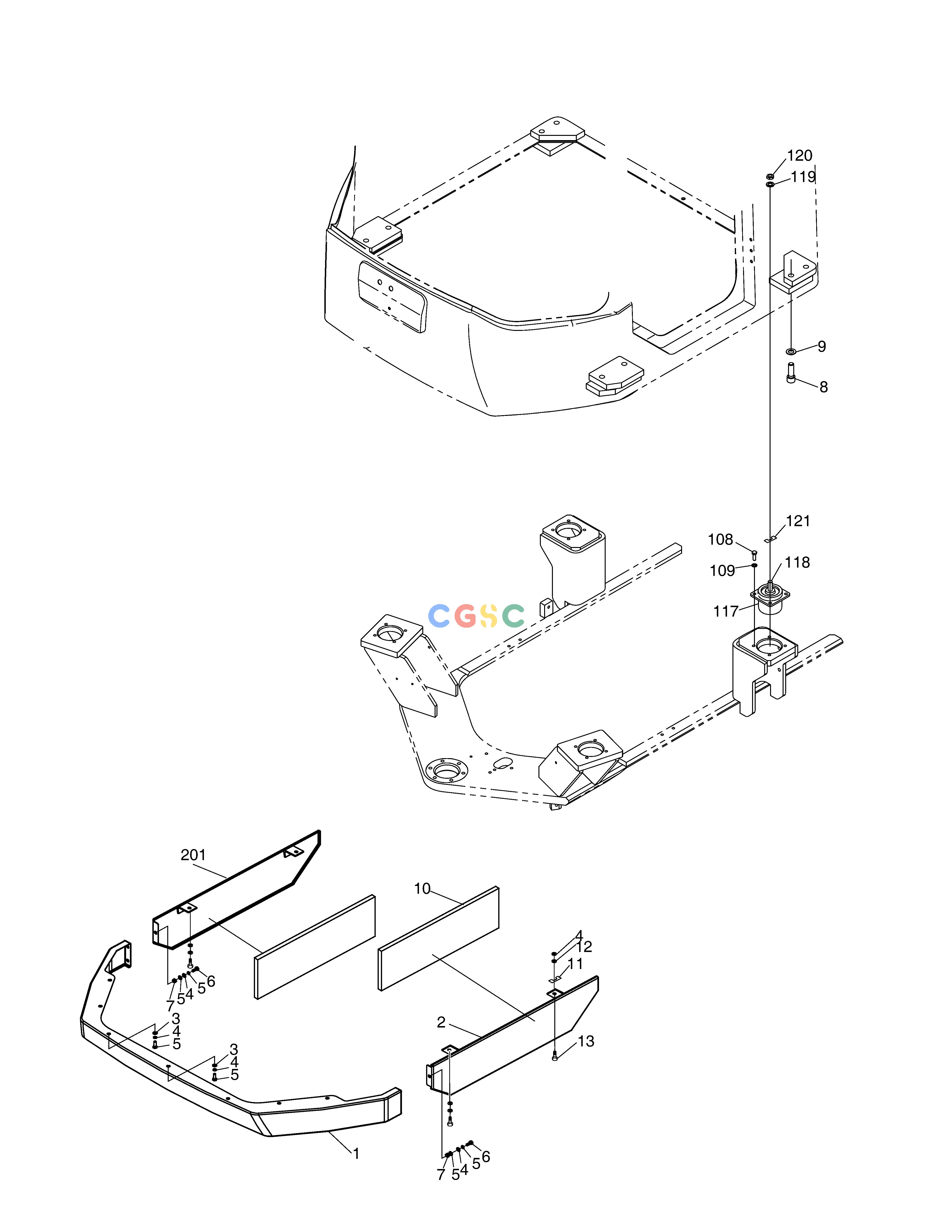

斗山零件查询CABIN MOUNTING SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
415 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-00286
|
[-] |
CABIN ASSY,MOUNT
|
|
| 1. |
250105-00024
|
[1] |
PLATE,CABIN
|
|
| 10. |
180309-00096
|
[2] |
SPONGE
|
|
| 108. |
S0512263
|
[16] |
BOLT
|
|
| 109. |
S5010603
|
[16] |
WASHER
|
|
| 11. |
DS7718011
|
[4] |
SHIM;28X25X2.3T
|
|
| 117. |
K1041174A
|
[4] |
RUBBER;CABIN MOUNT
|
|
| 118. |
S2521463
|
[4] |
BOLT,STUD;CABIN
|
|
| 119. |
DS0401082
|
[4] |
WASHER
|
|
| 12. |
DS0401029
|
[2] |
WASHER,PLAIN;M8
|
|
| 120. |
S4012943
|
[4] |
NUT,HEX
|
|
| 121. |
DS7718003
|
[4] |
SHIM
|
|
| 13. |
S0509353
|
[2] |
BOLT M8X1.25X35
|
|
| 2. |
250105-00316
|
[1] |
PLATE,CABIN
|
|
| 201. |
250105-00318
|
[1] |
PLATE,CABIN
|
|
| 3. |
S0509053
|
[7] |
. BOLT
|
|
| 4. |
S5102503
|
[11] |
. WASHER
|
|
| 5. |
S5010513
|
[11] |
WASHER
|
|
| 6. |
S0508863
|
[2] |
BOLT;M8X20
|
|
| 7. |
S4012533
|
[2] |
NUT
|
|
| 8. |
S2227666
|
[8] |
BOLT,SOCKET HEAD WITH WASHER;M
|
|
| 9. |
DS0401203
|
[8] |
WASHER,PIAIN;Φ22XΦ38X4T
|
|
