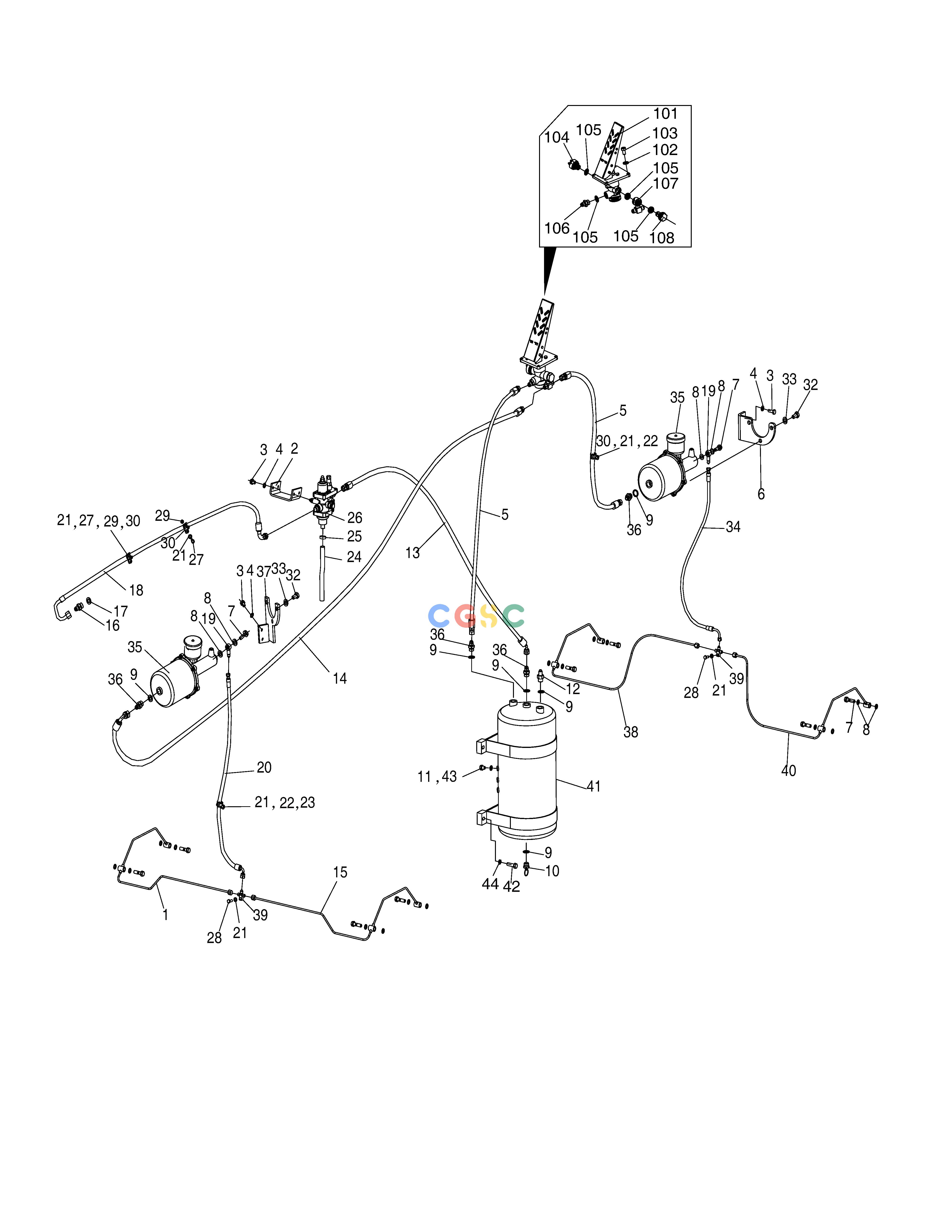

斗山零件查询BRAKE PIPING-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
967 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07195
|
[-] |
|
|
| 1. |
420207-01779C
|
[1] |
PIPE
|
|
| 1. |
420207-01779B
|
[1] |
PIPE
|
|
| 1. |
420207-01779E
|
[1] |
PIPE
|
420207-01779G
|
| 1. |
420207-01779G
|
[1] |
PIPE
|
|
| 1. |
420207-01779
|
[1] |
PIPE,BRAKE
|
|
| 10. |
410116-00167
|
[1] |
VALVE
|
|
| 101. |
K1041095A
|
[1] |
VALVE,BRAKE PEDAL
|
|
| 102. |
S5000513
|
[6] |
. WASHER;PLAIN
|
|
| 103. |
S0509053
|
[4] |
. BOLT
|
|
| 104. |
301405-00044
|
[1] |
SWITCH,LAMP
|
|
| 105. |
120808-00090
|
[4] |
WASHER,SEAL
|
|
| 106. |
430201-00198
|
[1] |
ADAPTER
|
|
| 107. |
430201-00817
|
[1] |
ADAPTER
|
|
| 108. |
120106-00424
|
[1] |
BOLT,HEX
|
|
| 11. |
430221-00730
|
[1] |
PLUG
|
|
| 12. |
410116-00119A
|
[1] |
VALVE,AIR
|
|
| 13. |
420101-00549
|
[1] |
|
|
| 14. |
420101-00840
|
[1] |
HOSE,AIR
|
|
| 15. |
420207-01778B
|
[1] |
PIPE
|
|
| 15. |
420207-01778E
|
[1] |
PIPE
|
420207-01778G
|
| 15. |
420207-01778G
|
[1] |
PIPE
|
|
| 15. |
420207-01778
|
[1] |
PIPE,BRAKE
|
420207-01778B
|
| 16. |
430201-00250
|
[1] |
ADAPTER
|
|
| 17. |
120810-00149
|
[1] |
WASHER,PLAIN
|
|
| 18. |
420101-00624A
|
[1] |
HOSE,AIR
|
|
| 18. |
420101-00624
|
[1] |
HOSE,AIR
|
420101-00624A
|
| 19. |
430201-00522A
|
[2] |
ADAPTER;HOLLOW
|
|
| 19. |
430201-00522
|
[2] |
ADAPTER;HOLLOW
|
|
| 2. |
250201-01657
|
[1] |
|
|
| 20. |
420105-00926A
|
[1] |
HOSE
|
|
| 20. |
420105-00926
|
[1] |
HOSE
|
420105-00926A
|
| 21. |
S5000513
|
[8] |
. WASHER;PLAIN
|
|
| 22. |
S0508653
|
[2] |
BOLT
|
|
| 23. |
124-00208D2
|
[1] |
CLAMP
|
|
| 24. |
420101-00107
|
[1] |
HOSE,AIR
|
|
| 25. |
S8450016
|
[1] |
. CLAMP
|
|
| 26. |
410116-00017A
|
[1] |
SEPARATOR;WATER
|
|
| 27. |
S0508853
|
[2] |
. BOLT
|
|
| 28. |
S0509053
|
[2] |
. BOLT
|
|
| 29. |
S4012533
|
[2] |
NUT
|
|
| 3. |
S0512063
|
[6] |
WASHER
|
|
| 30. |
124-00208D3
|
[3] |
CLIP
|
|
| 32. |
S0518053
|
[6] |
BOLT
|
|
| 33. |
S5010803
|
[6] |
WASHER;PLAIN
|
|
| 34. |
420105-00927A
|
[1] |
HOSE
|
|
| 34. |
420105-00927
|
[1] |
HOSE
|
420105-00927A
|
| 35. |
400916-00133A
|
[2] |
BRAKE PUMP
|
|
| 36. |
430201-00198
|
[4] |
ADAPTER
|
|
| 37. |
110406-01760A
|
[1] |
|
|
| 38. |
420207-01776C
|
[1] |
PIPE
|
420207-01776E
|
| 38. |
420207-01776B
|
[1] |
PIPE
|
|
| 38. |
420207-01776E
|
[1] |
PIPE
|
420207-01776G
|
| 38. |
420207-01776G
|
[1] |
PIPE
|
|
| 38. |
420207-01776
|
[1] |
PIPE,BRAKE
|
420207-01776B
|
| 39. |
430225-00140
|
[2] |
TEE
|
|
| 39. |
430225-00041
|
[2] |
TEE
|
|
| 4. |
S5010613
|
[6] |
WASHER
|
|
| 40. |
420207-01777
|
[1] |
PIPE,BRAKE
|
420207-01777B
|
| 40. |
420207-01777B
|
[1] |
PIPE
|
|
| 40. |
420207-01777C
|
[1] |
PIPE
|
|
| 40. |
420207-01777E
|
[1] |
PIPE
|
420207-01777G
|
| 40. |
420207-01777G
|
[1] |
PIPE
|
|
| 41. |
400804-00011A
|
[1] |
ACCUMULATOR
|
|
| 42. |
S2012453
|
[4] |
BOLT
|
|
| 43. |
K1041083D1
|
[1] |
|
|
| 44. |
DS7718003
|
[1] |
SHIM
|
|
| 5. |
420101-00180
|
[2] |
HOSE,AIR
|
|
| 6. |
250201-00657
|
[1] |
PLATE
|
|
| 7. |
120106-00381
|
[10] |
BOLT,HEX
|
|
| 8. |
DS2851089
|
[20] |
RING,O Φ8
|
|
| 9. |
120808-00090
|
[6] |
WASHER,SEAL
|
|
