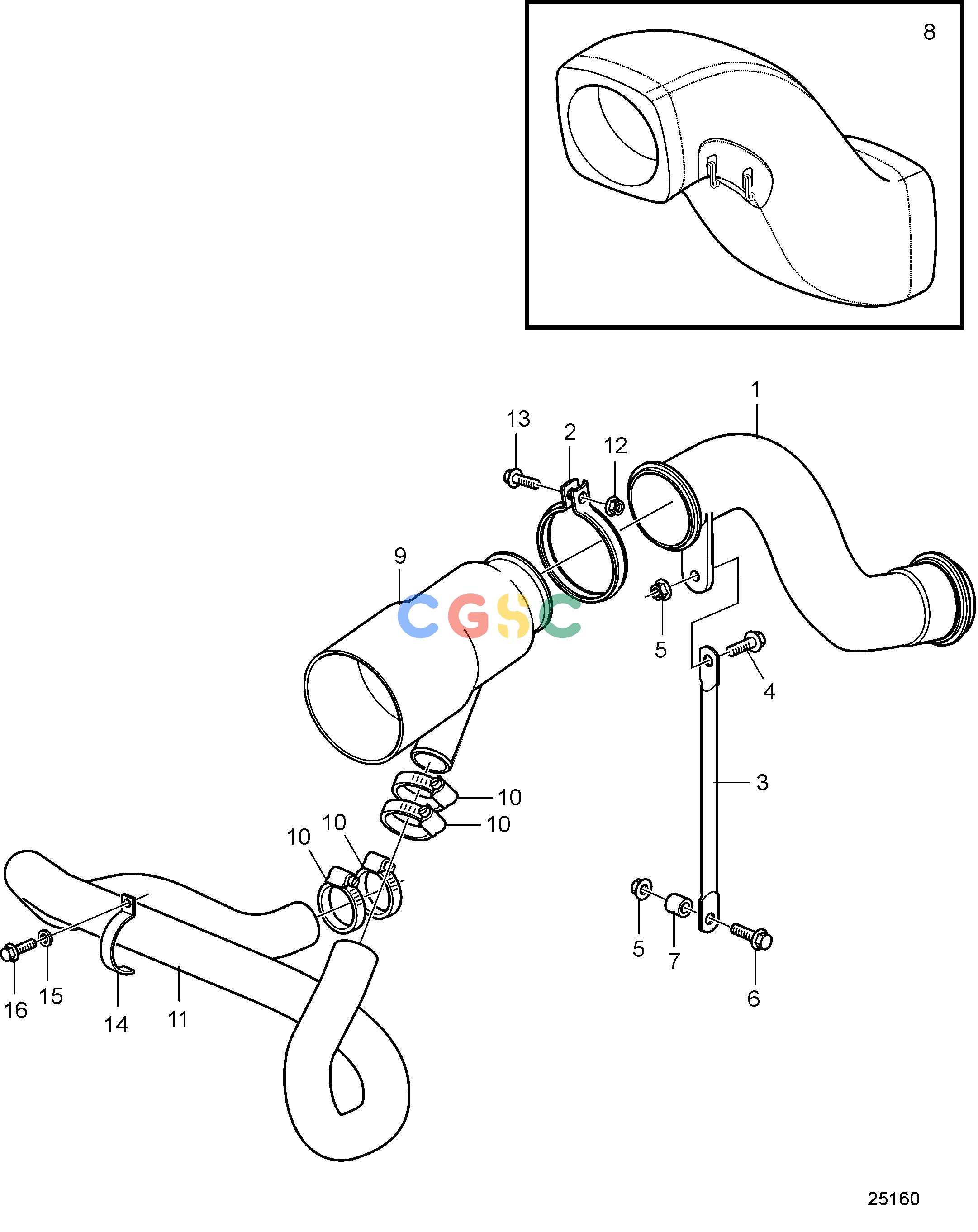

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Intake and Exhaust SystemWet Exhaust Pipe Elbow with RiserEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
436 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3817976
|
[1] |
Exhaust riser
|
|
| 2. |
1556930
|
[1] |
Clamp
|
|
| 3. |
3888512
|
[1] |
Stay
|
|
| 4. |
946472
|
[1] |
Flange screw
|
|
| 5. |
971098
|
[2] |
Flange lock nut
|
|
| 6. |
965221
|
[1] |
Flange screw
|
|
| 7. |
855773
|
[1] |
Spacer sleeve
|
|
| 8. |
3818149
|
[1] |
Exhaust pipe protect
|
|
| 9. |
3842183
|
[1] |
Exhaust pipe
|
|
| 10. |
961672
|
[2] |
Hose clamp
|
|
| 11. |
40005350
|
[1] |
Hose
|
D11
|
| 11. |
3887749
|
[1] |
Hose
|
D9
|
| 12. |
973924
|
[1] |
Flange screw
|
|
| 13. |
990950
|
[1] |
Flange lock nut
|
|
| 14. |
948560
|
[2] |
Clamp
|
|
| 15. |
960142
|
[2] |
Washer
|
|
| 16. |
967949
|
[2] |
Flange screw
|
|
