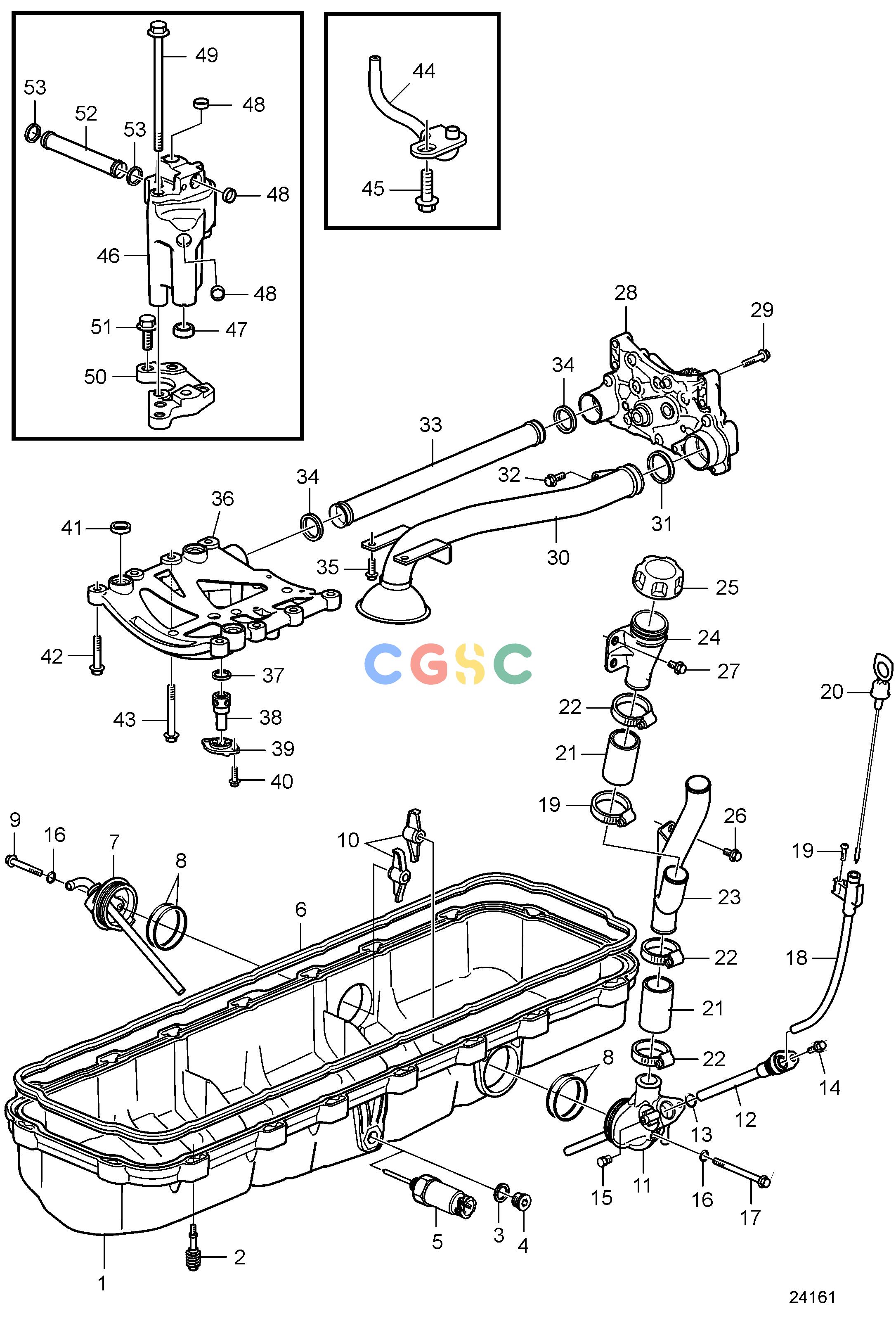

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Lubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808491
|
[1] |
Oil pan
|
|
| 2. |
20739547
|
[18] |
Flange screw
|
|
| 3. |
11998
|
[1] |
Gasket
|
|
| 4. |
966144
|
[1] |
Plug
|
|
| 5. |
7746900_125
|
|
Level sensor
|
|
| 6. |
20812484
|
[1] |
Sealing strip
|
|
| 7. |
3809996
|
[1] |
Cap
|
|
| 8. |
967343
|
[1] |
O-ring
|
|
| 9. |
984740
|
[1] |
Flange screw
|
|
| 10. |
3812221
|
[2] |
Wing nut
|
|
| 11. |
3809994
|
[1] |
Connector
|
|
| 12. |
20724256
|
[1] |
Pipe
|
|
| 13. |
949656
|
[1] |
O-ring
|
|
| 14. |
984733
|
[1] |
Flange screw
|
|
| 15. |
479979
|
[1] |
Plug
|
|
| 16. |
990058
|
[2] |
O-ring
|
|
| 17. |
984744
|
[1] |
Flange screw
|
|
| 18. |
40005818
|
[1] |
Oil dipstick
|
Serial number -7009157604
|
| 18. |
3593605
|
[1] |
Pipe
|
Serial number 7009157605-
|
| 19. |
975371
|
[1] |
Six point socket scr
|
|
| 20. |
40005818
|
[1] |
Oil dipstick
|
Serial number -7009157604
|
| 20. |
3847530
|
[1] |
Oil dipstick
|
Serial number 7009157605-
|
| 21. |
11162126
|
[2] |
Hose
|
|
| 22. |
994562
|
[4] |
Hose clamp
|
|
| 23. |
3842968
|
[1] |
Pipe
|
|
| 24. |
20808091
|
[1] |
Oil filler pipe
|
|
| 25. |
|
|
|
|
| 26. |
984733
|
[1] |
Flange screw
|
|
| 27. |
984733
|
[2] |
Flange screw
|
|
| 28. |
21736639
|
[1] |
Oil pump
|
|
| 28. |
|
|
|
|
| 29. |
984738
|
[4] |
Flange screw
|
|
| 30. |
3883823
|
[1] |
Oil strainer
|
|
| 31. |
20570444
|
[1] |
Sealing ring
|
|
| 32. |
949853
|
[1] |
Flange screw
|
|
| 33. |
20563450
|
[1] |
Pressure pipe
|
|
| 34. |
20570449
|
[2] |
Sealing ring
|
|
| 35. |
984734
|
[1] |
Flange screw
|
|
| 36. |
21125138
|
[1] |
Valve housing
|
|
| 37. |
469846
|
[1] |
Sealing ring
|
|
| 38. |
22188378
|
[1] |
Reduction valve
|
|
| 39. |
471648
|
[1] |
Cover
|
|
| 40. |
984725
|
[2] |
Flange screw
|
|
| 41. |
21092243
|
[3] |
Sealing ring
|
|
| 42. |
984756
|
[6] |
Flange screw
|
|
| 43. |
984759
|
[2] |
Flange screw
|
|
| 44. |
21389857
|
[6] |
Piston cooling jet
|
|
| 45. |
966378
|
[6] |
Flange screw
|
|
| 46. |
20540340
|
[1] |
Intermediate housing
|
|
| 47. |
20526428
|
[1] |
Sealing ring
|
|
| 48. |
955082
|
[3] |
Cap plug
|
|
| 49. |
969225
|
[2] |
Flange screw
|
|
| 50. |
20862692
|
[1] |
Adapter
|
|
| 51. |
984734
|
[3] |
Flange screw
|
|
| 52. |
20951326
|
[1] |
Connection pipe
|
|
| 53. |
1677370
|
[2] |
Sealing ring
|
|
