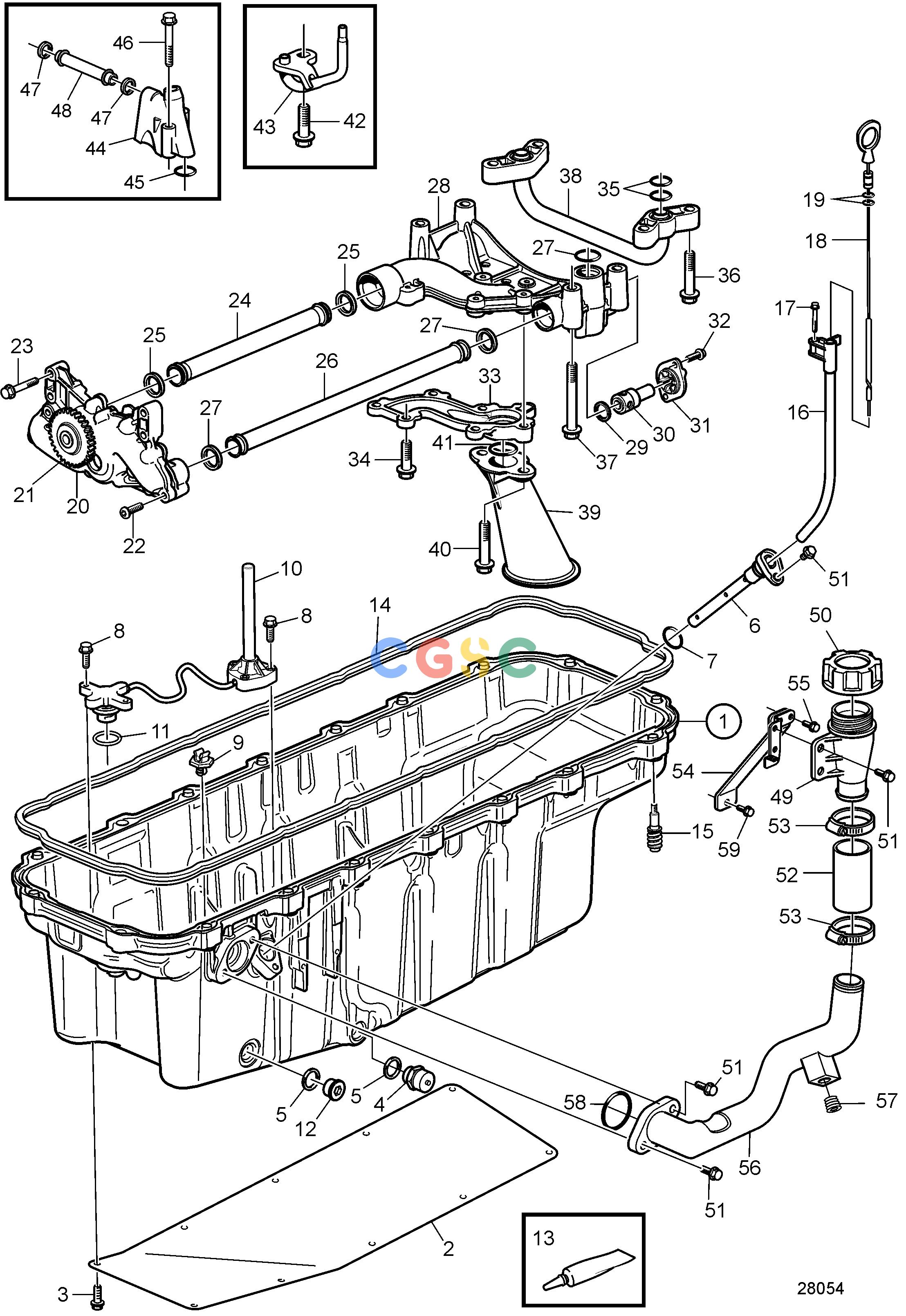

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Lubricating SystemLubricating System SN-1009178441EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
526 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20753945
|
[1] |
Oil pan
|
Replaced by 21420930
|
| 1. |
21420930
|
[1] |
Oil pan
|
|
| 2. |
|
|
|
|
| 3. |
980894
|
[10] |
Six point socket scr
|
|
| 4. |
11054692
|
[1] |
Valve
|
|
| 5. |
18813
|
[2] |
Gasket
|
|
| 6. |
20724256
|
[1] |
Pipe
|
Replaced by 21523327
|
| 6. |
21523327
|
[1] |
Pipe
|
|
| 7. |
949656
|
[1] |
O-ring
|
|
| 8. |
984728
|
[5] |
Flange screw
|
|
| 9. |
20700754
|
[2] |
Retainer
|
|
| 10. |
22022794
|
[1] |
Oil level sensor
|
|
| 11. |
990719
|
[1] |
O-ring
|
|
| 12. |
20571854
|
[1] |
Magnetic plug
|
(949175)
|
| 13. |
1161277
|
[1] |
Sealant
|
|
| 14. |
21517690
|
[1] |
Gasket
|
|
| 15. |
20739547
|
[18] |
Flange screw
|
|
| 16. |
3812381
|
[1] |
Pipe
|
|
| 17. |
975371
|
[1] |
Six point socket scr
|
|
| 18. |
21849203
|
[1] |
Oil dipstick
|
|
| 19. |
949187
|
[2] |
O-ring
|
|
| 20. |
20758237
|
[1] |
Oil pump
|
|
| 20. |
|
|
|
|
| 21. |
8148139
|
[1] |
Gear
|
|
| 22. |
969600
|
[10] |
Six point socket scr
|
|
| 23. |
984738
|
[4] |
Flange screw
|
|
| 24. |
20405083
|
[1] |
Suction pipe
|
|
| 25. |
20451487
|
[2] |
Sealing ring
|
|
| 26. |
20405081
|
[1] |
Pressure pipe
|
|
| 27. |
21092243
|
[3] |
Sealing ring
|
(8170558)
|
| 28. |
20412866
|
[1] |
Valve housing
|
|
| 29. |
469846
|
[1] |
Sealing ring
|
|
| 30. |
3826265
|
[1] |
Reduction valve
|
|
| 31. |
471648
|
[1] |
Cover
|
|
| 32. |
984726
|
[2] |
Flange screw
|
|
| 33. |
|
|
|
|
| 34. |
984736
|
[5] |
Flange screw
|
|
| 35. |
471956
|
[4] |
Gasket
|
|
| 36. |
984756
|
[4] |
Flange screw
|
|
| 37. |
984759
|
[4] |
Flange screw
|
|
| 38. |
20412574
|
[1] |
Pipe
|
|
| 39. |
3161262
|
[1] |
Oil strainer
|
|
| 40. |
973924
|
[2] |
Flange screw
|
|
| 41. |
948610
|
[1] |
O-ring
|
|
| 42. |
966378
|
[6] |
Flange screw
|
|
| 43. |
20727702
|
[6] |
Piston cooling jet
|
|
| 44. |
8170702
|
[1] |
Spacer
|
|
| 45. |
1636309
|
[1] |
Sealing ring
|
|
| 46. |
3165142
|
[2] |
Flange screw
|
|
| 47. |
1677370
|
[2] |
Sealing ring
|
|
| 48. |
8148187
|
[1] |
Connection pipe, rocker arm shaft
|
|
| 49. |
20808091
|
[1] |
Oil filler pipe
|
|
| 50. |
20807510
|
[1] |
Oil filler cap
|
|
| 51. |
984733
|
[3] |
Flange screw
|
|
| 52. |
11162126
|
[1] |
Hose
|
|
| 53. |
994562
|
[2] |
Hose clamp
|
|
| 54. |
889284
|
[1] |
Bracket
|
|
| 55. |
984753
|
[2] |
Flange screw
|
|
| 56. |
3812379
|
[1] |
Pipe
|
|
| 57. |
968062
|
[1] |
Plug
|
|
| 58. |
20555696
|
[1] |
Sealing ring
|
Replaced by 21780376
|
| 58. |
21780376
|
[1] |
Sealing ring
|
|
| 59. |
984752
|
[1] |
Flange screw
|
|
