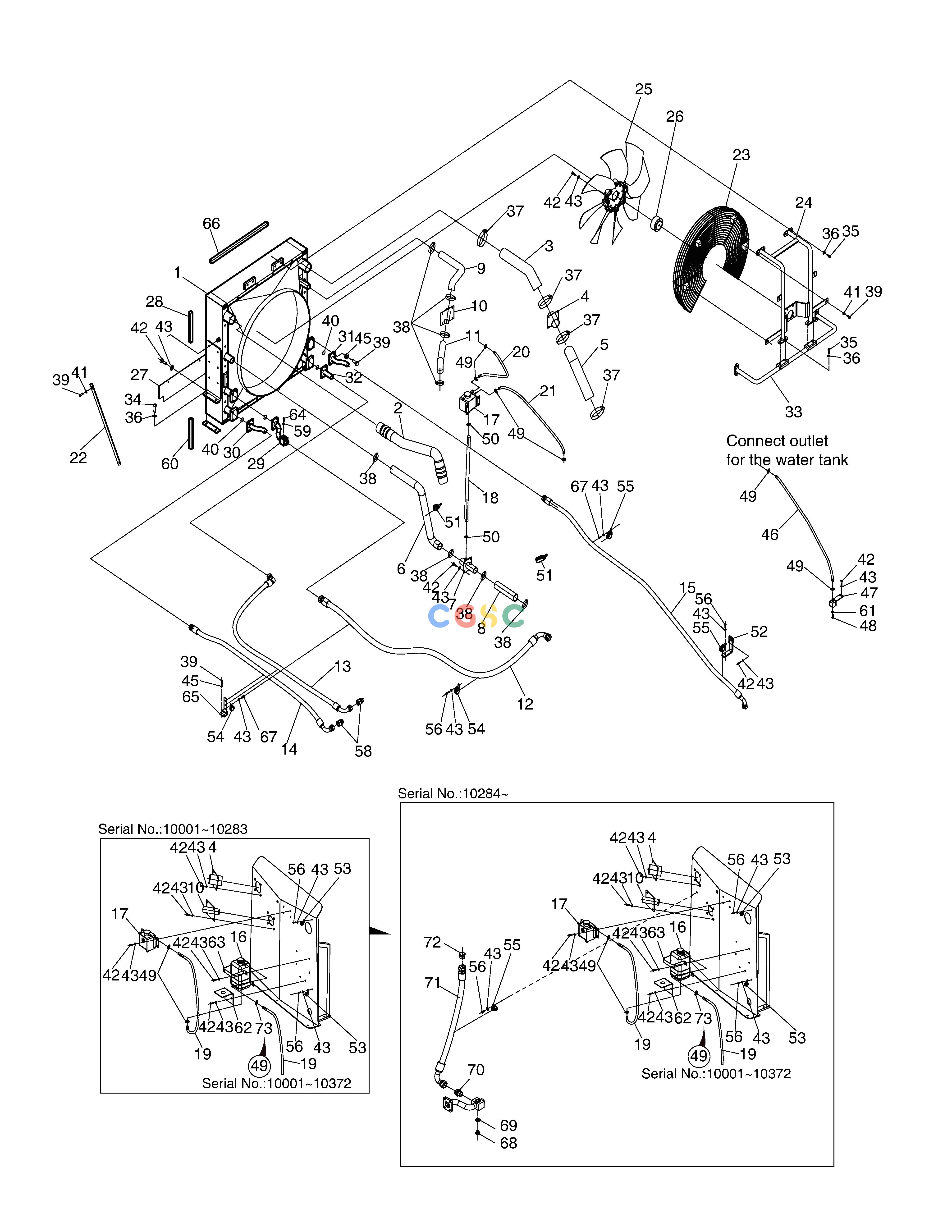

斗山零件查询COOLER PIPING-ZF T/M AND NON TROPICAL SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
552 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-06672
|
[-] |
|
|
| 1. |
440211-00445B
|
[1] |
RADIATOR GROUP
|
|
| 10. |
420206-00020A
|
[1] |
PIPE
|
|
| 10. |
420206-00020
|
[1] |
PIPE
|
420206-00020A
|
| 11. |
420109-00336
|
[1] |
|
|
| 12. |
420107-00254B
|
[1] |
HOSE
|
|
| 13. |
420107-00255A
|
[1] |
|
|
| 14. |
420107-00256A
|
[1] |
|
|
| 15. |
420107-00257
|
[1] |
|
|
| 16. |
K1003180A
|
[1] |
TANK;RESERVE
|
|
| 16. |
450107-00013
|
[1] |
TANK,RESERVE
|
K1003180A
|
| 17. |
450110-00007B
|
[1] |
TANK,WATER
|
|
| 18. |
420109-00337A
|
[1] |
|
|
| 19. |
420109-00338
|
[2] |
|
|
| 2. |
420202-00220
|
[1] |
PIPE,AIR
|
420202-00220A
|
| 2. |
420202-00220A
|
[1] |
PIPE
|
|
| 20. |
420101-00555
|
[1] |
HOSE
|
|
| 21. |
420101-00556
|
[1] |
|
|
| 22. |
110406-01745A
|
[2] |
|
|
| 23. |
110921-01696B
|
[1] |
GUARD,FAN
|
|
| 24. |
110406-01746A
|
[1] |
|
|
| 25. |
210101-00224
|
[1] |
|
|
| 26. |
430215-00511A
|
[1] |
|
|
| 27. |
250104-00225
|
[1] |
|
|
| 28. |
180309-00179
|
[2] |
|
|
| 29. |
420206-00021A
|
[1] |
|
|
| 3. |
420101-00552
|
[1] |
|
|
| 30. |
420206-00022A
|
[1] |
|
|
| 31. |
420206-00023C
|
[1] |
PIPE
|
420206-00023E
|
| 31. |
420206-00023E
|
[1] |
PIPE
|
|
| 31. |
420206-00023B
|
[1] |
PIPE
|
420206-00023C
|
| 32. |
420206-00024A
|
[1] |
|
|
| 33. |
110406-01747A
|
[1] |
|
|
| 34. |
S0515463
|
[4] |
BOLT
|
|
| 35. |
S0515053
|
[14] |
BOLT M12X1.75X25
|
|
| 36. |
DS0401211
|
[18] |
WASHER,PIN
|
|
| 37. |
S8500105
|
[4] |
CLAMP
|
|
| 38. |
S8500067
|
[8] |
CLAMP
|
|
| 38. |
S8450044
|
[8] |
CLAMP;HOSE
|
S8500067
|
| 39. |
S0512263
|
[26] |
BOLT
|
|
| 4. |
420206-00018B
|
[1] |
PIPE
|
|
| 40. |
DS2851049
|
[4] |
O-RING
|
|
| 41. |
DS0401063
|
[8] |
WASHER,PLAIN
|
|
| 42. |
S0508853
|
[37] |
. BOLT
|
|
| 43. |
S5010513
|
[48] |
WASHER
|
|
| 43. |
S5010513
|
[47] |
WASHER
|
|
| 45. |
S5010613
|
[18] |
WASHER
|
|
| 46. |
420109-00339
|
[1] |
|
|
| 47. |
100201-00961A
|
[1] |
|
|
| 48. |
430221-00564
|
[1] |
PLUG
|
|
| 49. |
S8450012
|
[7] |
CLAMP
|
|
| 49. |
S8450012
|
[6] |
CLAMP
|
|
| 49. |
S8450012
|
[9] |
CLAMP
|
|
| 5. |
420101-00553A
|
[1] |
HOSE
|
|
| 50. |
S8450023
|
[4] |
CLAMP
|
|
| 51. |
120402-00075
|
[1] |
CLIP
|
|
| 52. |
110406-01749A
|
[1] |
|
|
| 53. |
124-00208D3
|
[2] |
CLIP
|
|
| 54. |
124-00208D7
|
[2] |
CLIP
|
|
| 55. |
124-00208D5
|
[6] |
CLIP
|
120402-00580
|
| 55. |
120402-00580
|
[6] |
CLIP
|
|
| 55. |
124-00208D5
|
[5] |
CLIP
|
|
| 56. |
S0508653
|
[9] |
BOLT
|
|
| 56. |
S0508653
|
[8] |
BOLT
|
|
| 58. |
430201-00570
|
[2] |
ADAPTER
|
|
| 59. |
K1042239D1
|
[1] |
SEAL
|
|
| 6. |
420109-00333A
|
[1] |
HOSE,WATER
|
|
| 6. |
420109-00333
|
[1] |
HOSE,WATER
|
420109-00333A
|
| 60. |
180309-00180
|
[2] |
|
|
| 61. |
DS2851089
|
[1] |
RING,O Φ8
|
|
| 62. |
110406-01750A
|
[1] |
|
|
| 63. |
110406-01751
|
[1] |
BRACKET
|
|
| 64. |
430221-00159
|
[1] |
PLUG
|
|
| 65. |
110406-03139
|
[1] |
BRACKET
|
|
| 65. |
110406-02310
|
[1] |
BRACKET
|
|
| 66. |
180309-00181
|
[1] |
|
|
| 67. |
2120-2187
|
[2] |
BOLT
|
|
| 68. |
430221-00159
|
[1] |
PLUG
|
|
| 69. |
K1042239D1
|
[1] |
SEAL
|
|
| 7. |
420206-00019A
|
[1] |
PIPE
|
420206-00019B
|
| 7. |
420206-00019B
|
[1] |
PIPE
|
420206-00019C
|
| 7. |
420206-00019C
|
[1] |
PIPE
|
|
| 70. |
430201-00177
|
[1] |
ADAPTER
|
|
| 71. |
420107-00618
|
[1] |
HOSE
|
|
| 72. |
430221-00809
|
[1] |
PLUG
|
|
| 73. |
DS2809003
|
[1] |
CLIP
|
|
| 8. |
420109-00334
|
[1] |
|
|
| 9. |
420109-00335
|
[1] |
|
|
