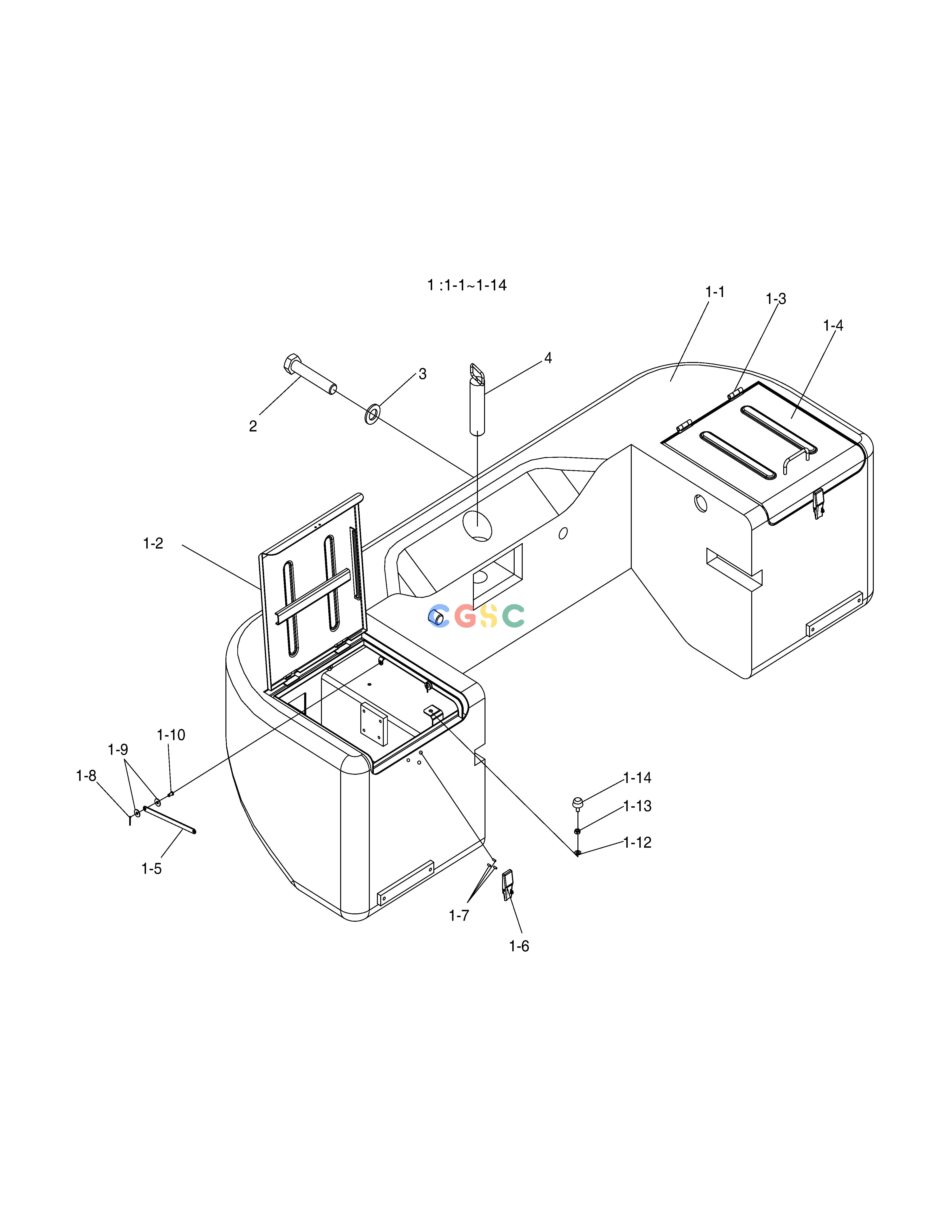

斗山零件查询COUNTER WEIGHT-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
619 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
160702-00510
|
[-] |
|
|
| 1. |
160702-00511B
|
[1] |
WEIGHT,COUNTER
|
|
| 1-1. |
160702-00512A
|
[1] |
|
|
| 1-10. |
NA00752
|
[4] |
PIN
|
|
| 1-12. |
S4012633
|
[2] |
NUT
|
|
| 1-13. |
S5010613
|
[2] |
WASHER
|
|
| 1-14. |
161-00195
|
[2] |
STOPPER
|
|
| 1-2. |
110503-00137B
|
[1] |
. COVER,BATTERY;TOP(R.H)
|
|
| 1-3. |
110927-00201
|
[4] |
. HINGE,DOOR
|
|
| 1-4. |
110503-00138B
|
[1] |
. COVER,BATTERY;TOP(L.H)
|
|
| 1-5. |
250122-00133
|
[2] |
. PLATE,SUPPORT
|
|
| 1-6. |
101544-00006
|
[2] |
. LOCK
|
|
| 1-7. |
NA00994
|
[10] |
RIVET
|
|
| 1-8. |
S5735471
|
[4] |
PIN;SPLIT
|
|
| 1-9. |
NA04224
|
[8] |
|
|
| 2. |
K1041998
|
[2] |
BOLT
|
|
| 3. |
120810-00020
|
[2] |
WASHER
|
|
| 4. |
120501-00234
|
[1] |
PIN
|
|
