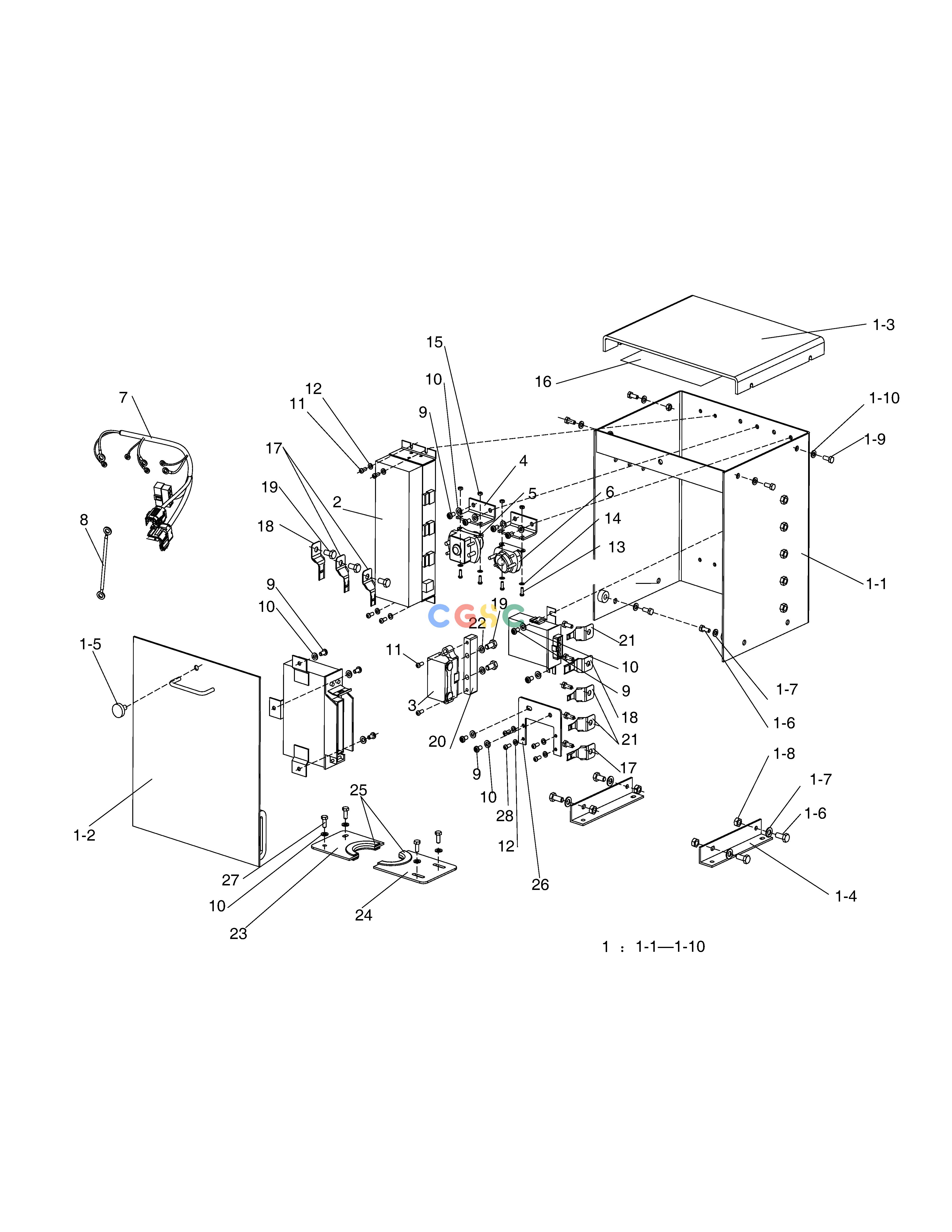

斗山零件查询ELECTRIC PARTS(3) - ELECTRIC BOX SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
338 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300706-00507B
|
[1] |
BOX ASSY,ELECTRIC
|
300706-00507C
|
| -. |
300706-00507C
|
[1] |
BOX ASSY,ELECTRIC
|
|
| -. |
300706-00507A
|
[1] |
BOX ASSY,ELECTRIC
|
300706-00507B
|
| 1. |
300706-00508B
|
[1] |
BOX,ELECTRIC
|
|
| 1. |
300706-00508A
|
[1] |
BOX,ELECTRIC
|
|
| 1-1. |
110906-00398B
|
[1] |
. BOX
|
|
| 1-1. |
110906-00398A
|
[1] |
. BOX
|
|
| 1-10. |
S5010313
|
[4] |
WASHER
|
|
| 1-2. |
110517-00500
|
[1] |
|
|
| 1-3. |
110405-00028
|
[1] |
. BOLT
|
|
| 1-4. |
110406-00458
|
[2] |
. COVER,SIDE
|
|
| 1-5. |
120112-00125
|
[1] |
. BOLT;M8X20
|
|
| 1-6. |
S0508863
|
[6] |
BOLT;M8X20
|
|
| 1-7. |
S5010513
|
[6] |
WASHER
|
|
| 1-8. |
S4012533
|
[4] |
NUT
|
|
| 1-9. |
S0504653
|
[4] |
. BOLT
|
|
| 10. |
S5010313
|
[4] |
WASHER
|
|
| 10. |
S5010313
|
[6] |
WASHER
|
|
| 11. |
S3460863
|
[6] |
SCREW
|
|
| 12. |
S5000213
|
[5] |
. WASHER
|
|
| 12. |
S5000213
|
[6] |
. WASHER
|
|
| 13. |
S3458583
|
[2] |
SCREW M4X0.7X12
|
|
| 13. |
S3458583
|
[4] |
SCREW M4X0.7X12
|
|
| 14. |
S5010113
|
[2] |
WASHER,PLAIN
|
|
| 14. |
S5010113
|
[4] |
WASHER,PLAIN
|
|
| 15. |
S4012133
|
[2] |
NUT
|
|
| 15. |
S4012133
|
[4] |
NUT
|
|
| 16. |
950209-02944
|
[1] |
|
|
| 17. |
110406-01882
|
[3] |
BRACKET,HOUSING
|
|
| 18. |
110406-01873
|
[2] |
BRACKET,HOUSING
|
|
| 19. |
S0508653
|
[10] |
BOLT
|
|
| 2. |
300707-00023A
|
[1] |
|
|
| 20. |
110420-00523
|
[1] |
|
|
| 21. |
110406-01874
|
[3] |
BRACKET,HOUSING
|
|
| 22. |
S5010513
|
[2] |
WASHER
|
|
| 23. |
110406-02377A
|
[1] |
BRACKET
|
|
| 24. |
110406-02378A
|
[1] |
BRACKET
|
|
| 25. |
180308-00406
|
[2] |
RUBBER
|
|
| 26. |
110406-02379A
|
[1] |
BRACKET
|
|
| 27. |
S0504653
|
[2] |
. BOLT
|
|
| 28. |
S3460833
|
[2] |
SCREW
|
|
| 3. |
K1054389
|
[1] |
WASHER;PLAIN M5
|
|
| 4. |
K1054347
|
[2] |
BRACKET
|
|
| 5. |
301202-00011
|
[1] |
RELAY,BATTERY
|
|
| 6. |
301202-00192
|
[1] |
RELAY
|
|
| 6. |
K1054388
|
[1] |
RELAY
|
|
| 7. |
310207-01767B
|
[1] |
HARNESS,ELECTRIC BOX
|
|
| 7. |
310207-01767A
|
[1] |
HARNESS,ELECTRIC BOX
|
|
| 8. |
310207-01768
|
[1] |
310207-01768
|
|
| 9. |
S3458953
|
[2] |
SCREW M6X1.0X12
|
|
| 9. |
S3458953
|
[4] |
SCREW M6X1.0X12
|
|
