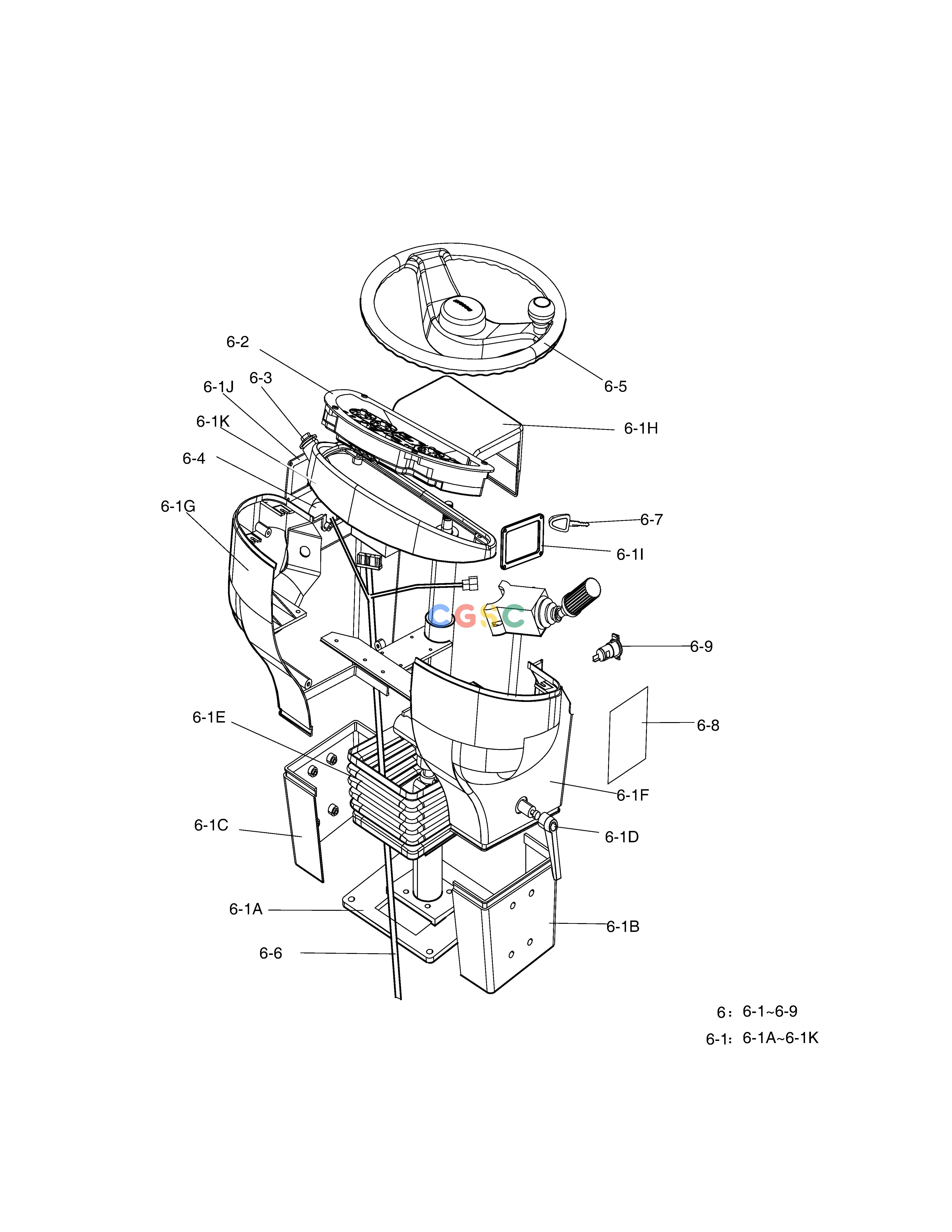

斗山零件查询ELECTRIC PARTS(2) - CONSOLE-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
717 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01502C
|
[-] |
ELECTRIC ASSY;CABIN;ZF T/M
|
|
| -. |
300619-01502G
|
[-] |
ELECTRIC ASSY;CABIN;ZF T/M
|
|
| 6. |
300411-00033B
|
[1] |
CONSOLE ASSY;ZF
|
|
| 6. |
300411-00033C
|
[1] |
CONSOLE ASSY
|
|
| 6-1. |
300411-00050
|
[1] |
. CONSOLE BODY
|
|
| 6-1. |
190109-00064A
|
[1] |
. COLUMN ASSY,STEERING;G507
|
|
| 6-1A. |
160301-00507
|
[1] |
.. BED
|
|
| 6-1B. |
110931-00830
|
[1] |
.. HOUSING
|
|
| 6-1B. |
110931-01338
|
[1] |
.. HOUSING
|
|
| 6-1C. |
110931-00831
|
[1] |
.. HOUSING
|
|
| 6-1C. |
110931-01339
|
[1] |
.. HOUSING
|
|
| 6-1D. |
101101-00215
|
[1] |
.. LEVER
|
|
| 6-1E. |
101538-00017
|
[1] |
.. LINING,RUBBER
|
|
| 6-1F. |
110931-00832
|
[1] |
.. HOUSING
|
|
| 6-1F. |
110931-00933
|
[1] |
.. HOUSING
|
|
| 6-1G. |
110931-00833
|
[1] |
.. HOUSING
|
|
| 6-1H. |
110508-11763
|
[1] |
.. COVER
|
|
| 6-1I. |
110931-00834
|
[1] |
.. HOUSING
|
|
| 6-1J. |
110931-00835
|
[1] |
.. HOUSING
|
|
| 6-1K. |
110931-00836
|
[1] |
.. HOUSING
|
|
| 6-2. |
800102-00023A
|
[1] |
. BLOCK,GAUGE
|
|
| 6-3. |
301403-00002
|
[1] |
SWITCH,COMBINATION
|
|
| 6-4. |
301419-00001
|
[1] |
SWITCH,STARTER
|
|
| 6-5. |
190202-00087
|
[1] |
STEERING UNIT
|
|
| 6-6. |
310207-01766A
|
[1] |
. HARNESS,CONSOLE
|
|
| 6-7. |
110702-00021
|
[2] |
KEY,START SWITCH
|
|
| 6-8. |
950209-02528
|
[1] |
PLATE,NAME;STARTER
|
|
| 6-9. |
300730-00010
|
[1] |
LIGHTER
|
|
