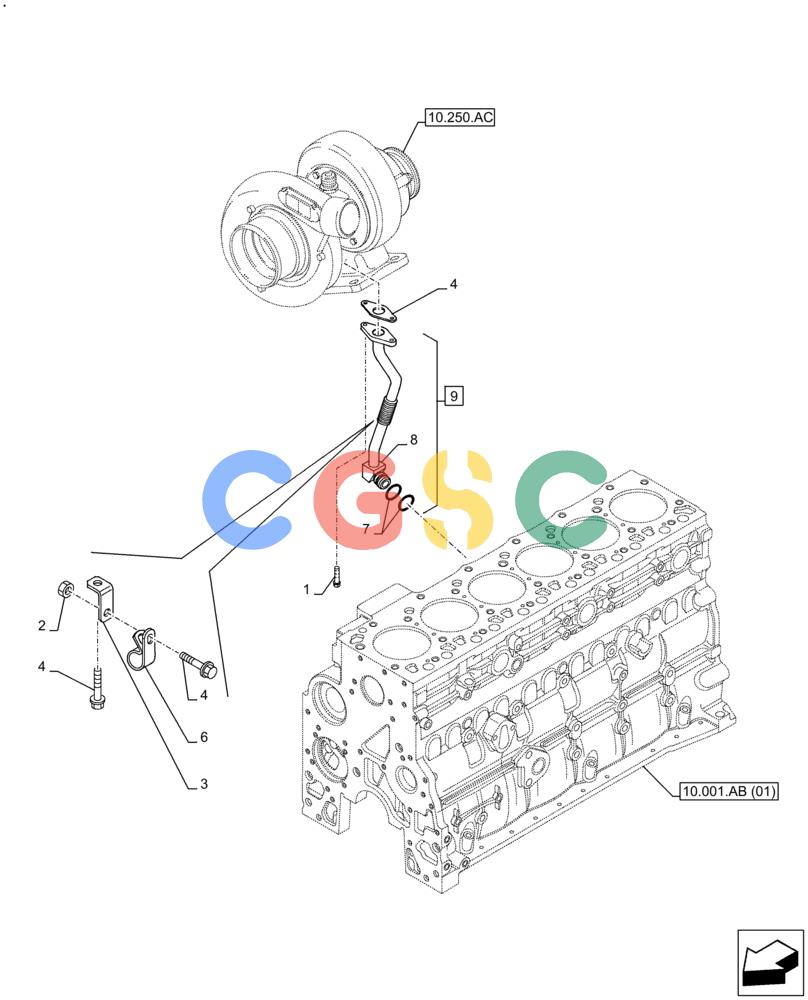

神钢零件查询(F4HFE6133 B003) - ENGINE 5801843802 - 47637346 TIER4 B (1/13-) (10.250.AE) - TURBOCHARGER OIL RETURN LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
332 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [2] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 4899003 | [1] | FLANGE NUT,M8 x 1.25 | TOR Superseded by part number: 9804277 |
| 3. | 2852390 | [1] | BRACKET | TOR Superseded by part number: 98459285 |
| 4. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 5. | 4891288 | [1] | GASKET,0.8mm Thk | TOR |
| 6. | 4896893 | [1] | CLAMP,20mm W | TOR |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONPipe, Incl in 9 |
