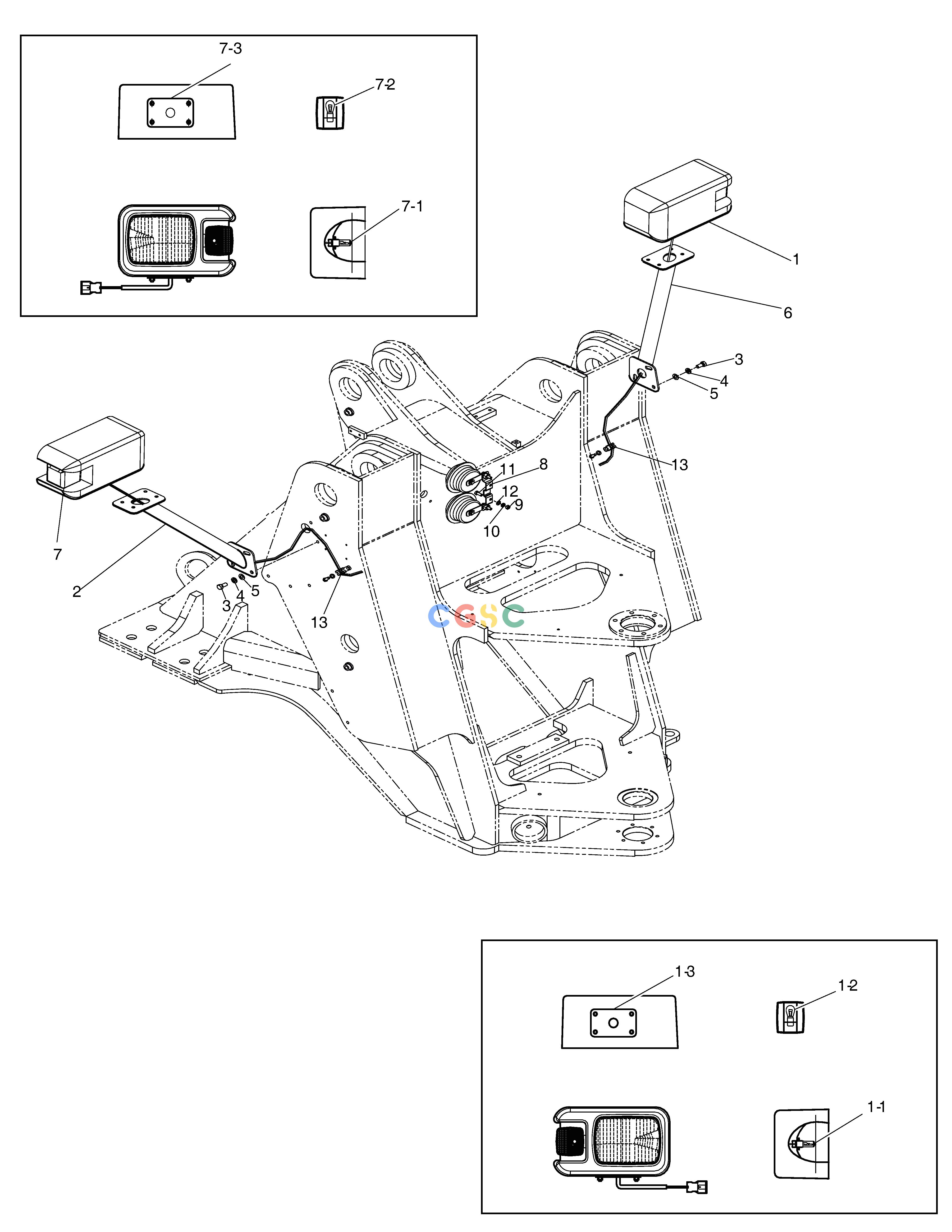

斗山零件查询ELECTRIC PARTS(5) - FRONT FRAME SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
793 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01500
|
[-] |
ELECTRIC ASSY;FRONT FRAME
|
|
| 1. |
301005-00537
|
[1] |
LAMP,COMBINATION
|
|
| 1-1. |
300710-00003
|
[1] |
. BULB,HALOGEN;LAMP COMBINATIO
|
|
| 1-2. |
300710-00029
|
[1] |
. BULB,HALOGEN
|
|
| 1-3. |
250201-00249
|
[1] |
. PLATE,LAMP;LAMP COMBINATION
|
|
| 10. |
S5010513
|
[4] |
WASHER
|
|
| 11. |
S0508863
|
[4] |
BOLT;M8X20
|
|
| 12. |
S5102503
|
[2] |
. WASHER
|
|
| 13. |
124-00208D2
|
[2] |
CLAMP
|
|
| 2. |
K1043190A
|
[1] |
BRACKET(L.H)
|
|
| 3. |
S0515066
|
[6] |
BOLT
|
|
| 4. |
S5102703
|
[6] |
WASHER
|
|
| 5. |
S5010703
|
[6] |
WASHER;PLAIN
|
|
| 6. |
K1043152A
|
[1] |
BRACKET(R.H)
|
|
| 7. |
301005-00538
|
[1] |
LAMP,COMBINATION
|
|
| 7-1. |
300710-00003
|
[1] |
. BULB,HALOGEN;LAMP COMBINATIO
|
|
| 7-2. |
300710-00029
|
[1] |
. BULB,HALOGEN
|
|
| 7-3. |
250201-00249
|
[1] |
. PLATE,LAMP;LAMP COMBINATION
|
|
| 8. |
K1040919B
|
[1] |
HORN
|
|
| 9. |
S4012533
|
[2] |
NUT
|
|
